FX2BA-60PA-1.27DSA Equivalent & Substitute Parts

Part Overview

The FX2BA-60PA-1.27DSA is a 60-position vertical D-Sub connector manufactured by Hirose Electric Co Ltd, designed for through-hole solder termination applications. This connector is classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations. The part operates with unlimited moisture sensitivity tolerance (MSL 1) and is non-compliant with RoHS directives.

Substiute Parts

FX2BA-60PA-1.27DSA

Hirose Electric Co LtdIn Stock: 1177FX2BA-60PA-1.27DSA Datasheet

Current PartRFQ

FX2BA-60PA-1.27DSA(71)

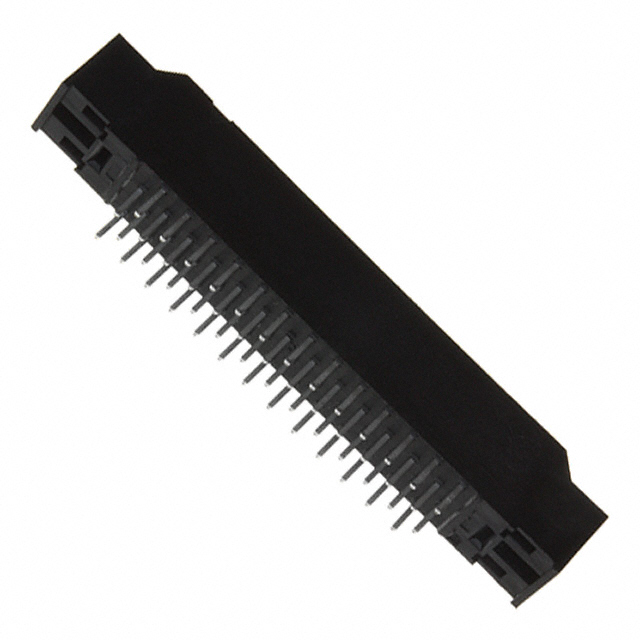

Hirose Electric Co LtdIn Stock: 1258FX2BA-60PA-1.27DSA(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FX2BA-60PA-1.27DSA is determined by strict alignment of the following parameters:

• Manufacturer and Series: Hirose Electric Co Ltd, FX2 series
• Electrical Configuration: 60 positions, 1.27 mm pitch, center strip contacts
• Mechanical Interface: Through-hole mounting, solder termination
• Contact Properties: Gold finish, consistent contact finish thickness
• Environmental Compliance: Moisture sensitivity level 1 (unlimited)

The substitute part FX2BA-60PA-1.27DSA(71) maintains identical electrical and mechanical specifications while offering improved product status and compliance posture.

Parameter Comparison

Engineering Selection Recommendations

The FX2BA-60PA-1.27DSA(71) serves as the direct substitute for the obsolete FX2BA-60PA-1.27DSA. Both components share identical electrical and mechanical specifications, ensuring functional interchangeability in through-hole solder applications requiring 60-position connectors at 1.27 mm pitch.

The substitute part offers two significant advantages: active product status ensures continued availability and manufacturing support, and RoHS compliance aligns with current regulatory requirements for new designs and procurement initiatives. The contact finish thickness specification (7.87µin / 0.200µm) is explicitly documented for the substitute part, providing additional technical clarity for design validation.

Selection between these parts depends on application requirements: the substitute part is appropriate for new designs and systems requiring RoHS compliance, while the original part may be retained for legacy system maintenance where non-compliant components are already established.

Frequently Asked Questions (FAQ)

Q: Are FX2BA-60PA-1.27DSA and FX2BA-60PA-1.27DSA(71) electrically identical?

A: Yes. Both connectors feature 60 positions, 1.27 mm pitch, center strip contacts, gold plating, and identical moisture sensitivity ratings. They are electrically interchangeable.

Q: What is the significance of the "(71)" designation in FX2BA-60PA-1.27DSA(71)?

A: The "(71)" suffix indicates a specific packaging or manufacturing variant. In this case, it denotes tray packaging and represents an active product variant of the obsolete base part number.

Q: Can the substitute part be used in existing designs originally specified for FX2BA-60PA-1.27DSA?

A: Yes. The substitute part maintains identical connector specifications, mounting interface, and termination method. Direct substitution is appropriate for both repair and redesign applications.

Q: What is the difference in RoHS compliance between these parts?

A: The original part is RoHS non-compliant, while the substitute part is RoHS compliant. For new designs subject to RoHS regulations, the substitute part is the appropriate selection.

Q: Are there any packaging differences between these parts?

A: The original part packaging is not specified in available documentation. The substitute part is supplied in tray packaging, which is standard for production quantities.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. These connectors do not require special moisture control during storage, handling, or assembly.
