FX2BA-32P-1.27DSA Equivalent & Substitute Parts

Part Overview

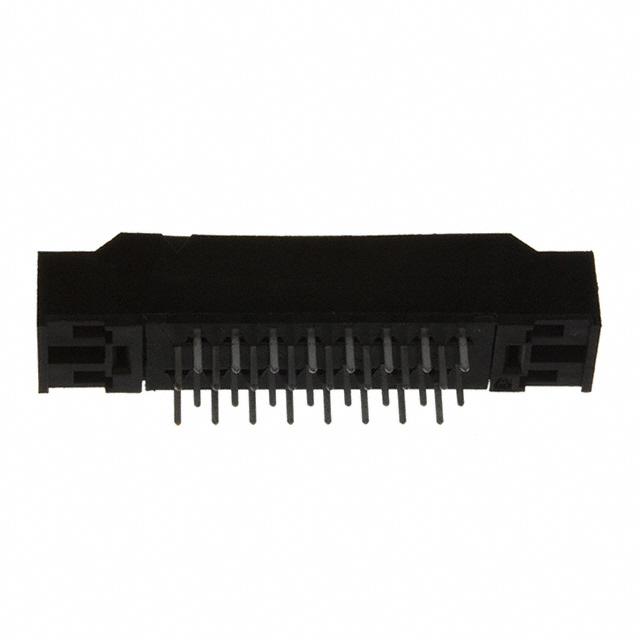

The FX2BA-32P-1.27DSA is a vertical D-Sub, D-shaped connector manufactured by Hirose Electric Co Ltd, designed as a 32-position header with 1.27mm pitch. This connector is classified as a position connector for through-hole solder applications. The product is currently obsolete and does not comply with RoHS standards, making identification of active equivalent parts essential for ongoing design and procurement requirements.

Substiute Parts

FX2BA-32P-1.27DSA

Hirose Electric Co LtdIn Stock: 1122FX2BA-32P-1.27DSA Datasheet

Current PartRFQ

FX2BA-32P-1.27DSA(71)

Hirose Electric Co LtdIn Stock: 1161FX2BA-32P-1.27DSA(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The FX2BA-32P-1.27DSA has one direct substitute within the same manufacturer's product line: FX2BA-32P-1.27DSA(71). This substitute relationship is established based on the following critical parameters that must remain constant for functional equivalence:

• Number of Positions: 32
• Number of Rows: 2
• Pitch: 1.27mm
• Connector Category: D-Sub, D-Shaped Connectors
• Mounting Type: Through Hole
• Termination Method: Solder
• Connector Style: Center Strip Contacts
• Connector Type: Plug

The primary distinction between the main part and its substitute is the product status and compliance certification. The substitute part FX2BA-32P-1.27DSA(71) is an active product with RoHS compliance, whereas the original part is obsolete and non-compliant.

Parameter Comparison

Engineering Selection Recommendations

The FX2BA-32P-1.27DSA(71) is the direct substitute for the obsolete FX2BA-32P-1.27DSA. Selection of the substitute part is based on the following engineering criteria:

• Both parts maintain identical electrical and mechanical specifications for the 32-position, 1.27mm pitch connector configuration
• The substitute part is an active product with current manufacturing support from Hirose Electric Co Ltd
• The substitute part achieves RoHS compliance, meeting modern regulatory requirements
• Both parts share identical ECCN and HTSUS classifications, ensuring consistent export and tariff treatment
• Moisture sensitivity level remains unchanged at MSL 1 (Unlimited), indicating no special storage or handling requirements
• The substitute part includes specified contact finish (Gold, 7.87µin) and connector type (Plug) details, providing enhanced documentation for procurement and assembly

Frequently Asked Questions (FAQ)

Q: Can FX2BA-32P-1.27DSA(71) be used as a direct replacement for FX2BA-32P-1.27DSA?

A: Yes. Both parts are 32-position, 1.27mm pitch D-Sub connectors with identical through-hole solder termination. The substitute part maintains all critical electrical and mechanical parameters required for functional equivalence.

Q: What is the primary reason to transition from FX2BA-32P-1.27DSA to FX2BA-32P-1.27DSA(71)?

A: The original part is obsolete and non-RoHS compliant. The substitute part is an active product with RoHS compliance, ensuring long-term availability and regulatory alignment.

Q: Are there packaging differences between these parts?

A: The original part packaging is not specified. The substitute part FX2BA-32P-1.27DSA(71) is supplied in Tray packaging.

Q: Do these connectors require special handling or storage?

A: Both parts have Moisture Sensitivity Level 1 (Unlimited), indicating no special moisture control or storage requirements during handling and assembly.

Q: Are the export classifications identical?

A: Yes. Both parts share ECCN EAR99 and HTSUS 8536.69.4040 classifications, ensuring consistent regulatory treatment for procurement and logistics.
