FX-11A Equivalent & Substitute Parts

Part Overview

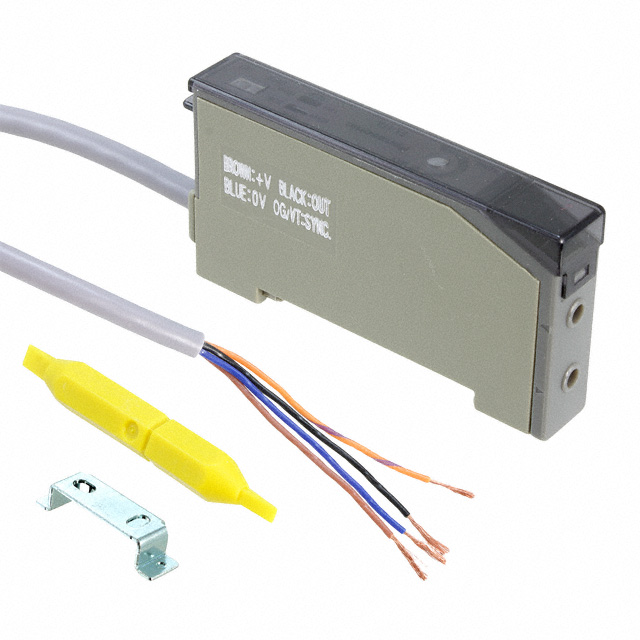

The FX-11A is a standard sensor amplifier manufactured by Panasonic Industrial Automation Sales, designed for analog 1-5V output applications with 12-24VDC supply voltage. This product is classified as obsolete, making identification of compatible substitute components essential for system maintenance and new installations where legacy support is required. The FX-11A operates across industrial temperature ranges and maintains RoHS compliance, supporting applications requiring reliable analog signal conditioning in automation environments.

Substiute Parts

FX-11A

Panasonic Industrial Automation SalesIn Stock: 983FX-11A Datasheet

Current PartRFQ

FX-505-C2

Panasonic Industrial Automation SalesIn Stock: 734FX-505-C2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute components for the FX-11A are identified based on alignment with the following critical parameters:

• Voltage Supply Range: 12V ~ 24V compatibility
• Output Type: Analog output capability
• Operating Temperature Range: -10°C ~ 55°C (TA)
• Manufacturer: Panasonic Industrial Automation Sales
• Compliance: RoHS status and regulatory certifications

The FX-505-C2 qualifies as a substitute based on matching supply voltage range, analog output type, and identical operating temperature specifications. While the FX-505-C2 represents an active product with enhanced fiber amplifier functionality and DIN Rail mounting, it maintains electrical compatibility within the specified parameter envelope.

Parameter Comparison

Engineering Selection Recommendations

The FX-505-C2 is suitable for applications currently utilizing the FX-11A where the following conditions are met:

• System supply voltage operates within the 12V ~ 24V range
• Analog output signal conditioning is required
• Operating environment remains within -10°C ~ 55°C temperature limits
• RoHS3 compliance is acceptable for the application

The FX-505-C2 carries active product status with current manufacturing support, whereas the FX-11A is obsolete. Both components maintain equivalent moisture sensitivity classification and regulatory compliance under EAR99 and HTSUS 8543.70.9860 classifications. The FX-505-C2 includes DIN Rail mounting capability, which may require mechanical integration review in existing installations designed for the FX-11A form factor.

Frequently Asked Questions (FAQ)

Q: Can the FX-505-C2 directly replace the FX-11A in existing systems?

A: The FX-505-C2 provides electrical compatibility through matching supply voltage range, analog output type, and operating temperature specifications. Mechanical integration must be verified, as the FX-505-C2 includes DIN Rail mounting, which may differ from the FX-11A installation method.

Q: What is the difference between Standard and Fiber Amp amplifier types?

A: The FX-11A uses Standard amplifier architecture, while the FX-505-C2 uses Fiber Amp technology. Both deliver analog output within the specified voltage and temperature parameters. The Fiber Amp variant in the FX-505-C2 represents an enhanced product line with active manufacturing status.

Q: Are there compliance differences between the FX-11A and FX-505-C2?

A: The FX-11A is RoHS Compliant, while the FX-505-C2 is ROHS3 Compliant. Both meet the same moisture sensitivity level and regulatory classifications. ROHS3 represents current RoHS compliance standards and is acceptable for new installations and replacements.

Q: What is the current supply difference between these components?

A: The FX-11A draws 35 mA, while the FX-505-C2 draws 40 mA. This 5 mA difference must be evaluated within the context of the system power supply capacity to ensure adequate current availability.

Q: Why is the FX-11A listed as obsolete?

A: Obsolete status indicates the FX-11A is no longer in active production. The FX-505-C2 represents the current active alternative within the Panasonic Industrial Automation Sales product portfolio, offering equivalent electrical functionality with enhanced features and ongoing manufacturing support.
