FTMH-150-02-F-DV-ES Equivalent & Substitute Parts

Part Overview

The FTMH-150-02-F-DV-ES is an active surface mount rectangular connector header manufactured by Samtec Inc. This connector is a 100-position, 2-row board-to-board header with 1.00mm pitch designed for high-density interconnect applications. The part is currently in active production status with 991 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative stock sources.

Substiute Parts

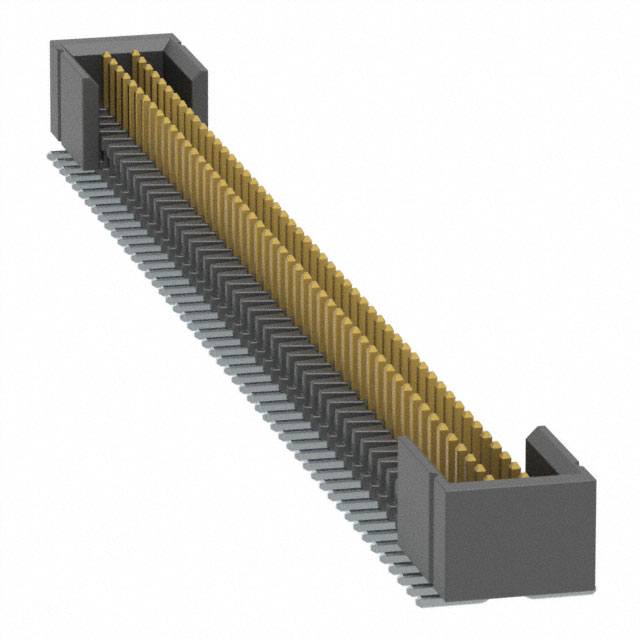

FTMH-150-02-F-DV-ES

Samtec Inc.In Stock: 1086FTMH-150-02-F-DV-ES Datasheet

Current PartRFQ

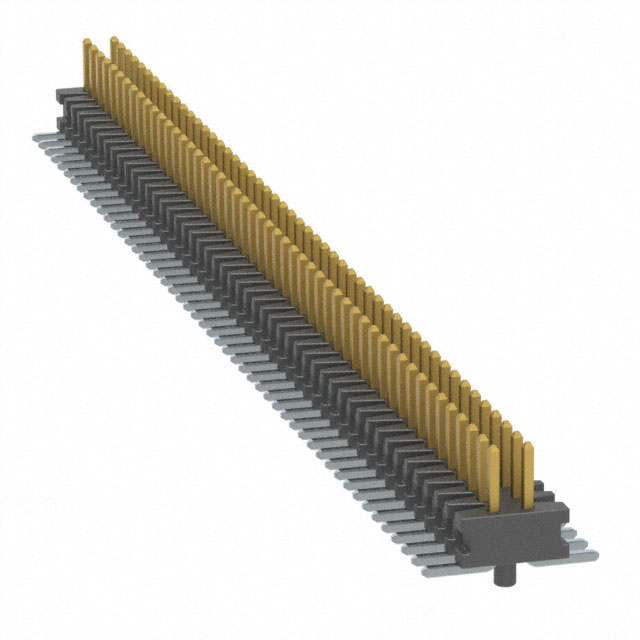

FTMH-150-02-F-DV-A

Samtec Inc.In Stock: 1156FTMH-150-02-F-DV-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FTMH-150-02-F-DV-ES is determined by strict equivalence across the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (100)
• Number of rows (2)
• Pitch specification (0.039" / 1.00mm mating pitch and row spacing)
• Mounting type (Surface Mount)
• Termination method (Solder)
• Contact material (Phosphor Bronze)
• Insulation material (Liquid Crystal Polymer)
• Operating temperature range (-55°C ~ 125°C)
• Current rating (2.8A per Contact)
• RoHS compliance status (ROHS3 Compliant)
• Product status (Active)

The identified substitute part maintains full electrical and mechanical compatibility with the main part number across all specified parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the FTMH-150-02-F-DV-ES and FTMH-150-02-F-DV-A are active production parts from Samtec Inc. with identical electrical and mechanical specifications. Both parts maintain ROHS3 compliance and are rated for the same operating temperature range and current specifications. Selection between these parts may be based on inventory availability, with FTMH-150-02-F-DV-A currently showing higher stock levels at 1065 units compared to 991 units for the primary part number. Both parts are suitable for direct substitution in applications requiring 100-position, 1.00mm pitch surface mount headers with solder termination.

Frequently Asked Questions (FAQ)

Q: Can FTMH-150-02-F-DV-A be used as a direct replacement for FTMH-150-02-F-DV-ES?

A: Yes. Both parts are electrically and mechanically equivalent across all specified parameters including pitch, position count, row configuration, contact material, insulation material, operating temperature range, and current rating.

Q: What are the key compatibility factors for this connector family?

A: Compatibility is determined by mating pitch (1.00mm), number of positions (100), row configuration (2 rows), contact type (male pin), mounting method (surface mount), and termination type (solder). Both substitute parts maintain these specifications.

Q: Are there any compliance differences between the two part numbers?

A: No. Both parts are ROHS3 compliant and carry identical certifications including UL94 V-0 material flammability rating and EAR99 ECCN classification.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions for storage or handling.

Q: Can these connectors be used in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 125°C, suitable for industrial and automotive applications within this range.
