FTMH-110-03-FM-DV-ES-A Equivalent & Substitute Parts

Part Overview

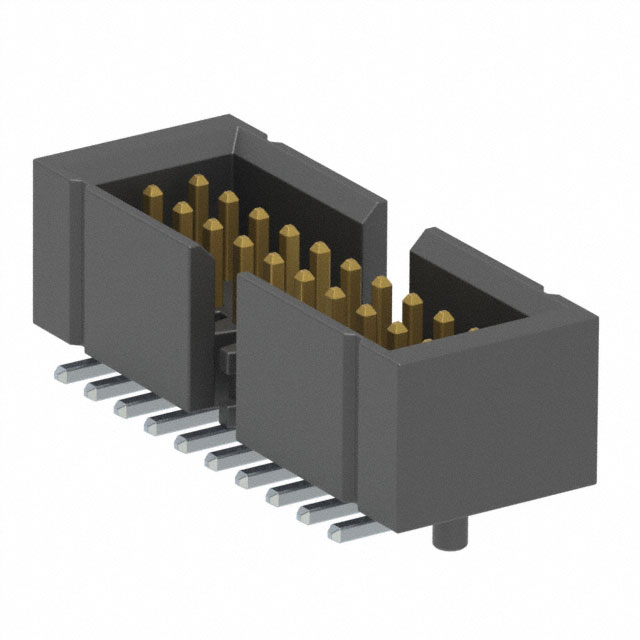

The FTMH-110-03-FM-DV-ES-A is a surface mount rectangular connector header manufactured by Samtec Inc. This connector is designed for board-to-board applications with 20 positions arranged in 2 rows at 1.00mm pitch. The part is currently active in production with 807 units in stock. Alternative equivalent parts are available to support procurement flexibility and supply chain continuity for applications requiring identical electrical and mechanical specifications.

Substiute Parts

FTMH-110-03-FM-DV-ES-A

Samtec Inc.In Stock: 902FTMH-110-03-FM-DV-ES-A Datasheet

Current PartRFQ

FTMH-110-03-F-DV-ES-A

Samtec Inc.In Stock: 931FTMH-110-03-F-DV-ES-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FTMH-110-03-FM-DV-ES-A is determined by strict equivalence across the following critical parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 20
• Number of Rows: 2
• Pitch - Mating: 0.039" (1.00mm)
• Row Spacing - Mating: 0.039" (1.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Current Rating: 2.8A per Contact
• Operating Temperature: -55°C ~ 125°C
• Contact Finish - Mating: Gold
• Insulation Material: Liquid Crystal Polymer (LCP)
• RoHS Status: ROHS3 Compliant

The substitute part FTMH-110-03-F-DV-ES-A meets all these criteria and is therefore electrically and mechanically equivalent for direct substitution in applications requiring this connector specification.

Parameter Comparison

Engineering Selection Recommendations

Both the FTMH-110-03-FM-DV-ES-A and FTMH-110-03-F-DV-ES-A are active production parts from Samtec Inc. with identical electrical and mechanical specifications. Both parts are ROHS3 compliant and carry UL94 V-0 material flammability ratings, meeting regulatory requirements for industrial and commercial applications. Selection between these parts may be based on inventory availability, with the substitute part currently showing higher stock levels at 851 units compared to 807 units for the primary part number.

Frequently Asked Questions (FAQ)

Q: Can FTMH-110-03-F-DV-ES-A be used as a direct replacement for FTMH-110-03-FM-DV-ES-A?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical specifications for connector type, contact configuration, pitch, mounting method, current rating, operating temperature range, and material composition.

Q: Are there any differences in the part numbers that affect compatibility?

A: The part numbers differ only in the position code (FM versus F). All other specifications remain identical, confirming full interchangeability for applications requiring this connector specification.

Q: What are the critical parameters that must match for substitution?

A: The following parameters must remain constant: 20-position, 2-row configuration; 1.00mm pitch; surface mount termination; 2.8A per contact current rating; -55°C to 125°C operating temperature; gold-plated mating contacts; and LCP insulation material.

Q: Are both parts compliant with current environmental regulations?

A: Yes. Both FTMH-110-03-FM-DV-ES-A and FTMH-110-03-F-DV-ES-A are ROHS3 compliant and carry UL94 V-0 material flammability ratings.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life without special moisture control requirements.
