FTM-107-02-F-DV Equivalent & Substitute Parts

Part Overview

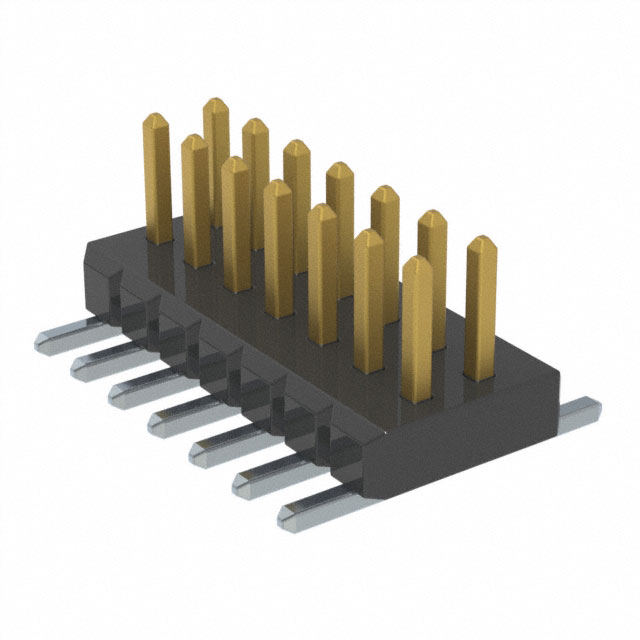

The FTM-107-02-F-DV is a rectangular connector header manufactured by Samtec Inc., designed for surface mount applications requiring board-to-board connectivity. This 14-position, 1.00mm pitch connector is actively produced and widely used in compact electronic assemblies. Alternative parts may be required due to inventory constraints, packaging preferences, or specific application requirements where substitute connectors meet the established electrical and mechanical parameters.

Substiute Parts

FTM-107-02-F-DV

Samtec Inc.In Stock: 963FTM-107-02-F-DV Datasheet

Current PartRFQ

BC050-14A-K0-0200-0160-0480-LB

GCTIn Stock: 3803BC050-14A-K0-0200-0160-0480-LB Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FTM-107-02-F-DV is determined by strict alignment with the following critical parameters:

• 14-position configuration with 2-row layout
• 1.00mm (0.039") mating pitch and row spacing
• Surface mount solder termination
• Male pin contact type
• Board-to-board connection style
• Liquid Crystal Polymer insulation material
• ROHS3 compliance

The substitute part BC050-14A-K0-0200-0160-0480-LB from GCT meets these core requirements. Both connectors share identical position count, pitch specifications, mounting methodology, and insulation material composition, establishing functional equivalence for applications where these parameters are controlling factors.

Parameter Comparison

Engineering Selection Recommendations

Both the FTM-107-02-F-DV and BC050-14A-K0-0200-0160-0480-LB are active products with ROHS3 compliance and MSL 1 ratings, indicating equivalent environmental qualification. Selection between these parts should be based on:

• Packaging format requirements: FTM-107-02-F-DV is supplied in tube packaging, while BC050-14A-K0-0200-0160-0480-LB is supplied in tape and reel format
• Operating temperature envelope: FTM-107-02-F-DV supports -55°C to 125°C; BC050-14A-K0-0200-0160-0480-LB supports -40°C to 105°C
• Current rating specifications: FTM-107-02-F-DV is rated at 2.8A per contact; BC050-14A-K0-0200-0160-0480-LB is rated at 1A per contact
• Inventory availability and lead time considerations

Frequently Asked Questions (FAQ)

Q: Can BC050-14A-K0-0200-0160-0480-LB be used as a direct replacement for FTM-107-02-F-DV?

A: Both connectors share identical pitch (1.00mm), position count (14), row configuration (2), mounting type (surface mount), and insulation material (LCP). Substitution is valid where the operating temperature range of -40°C to 105°C and current rating of 1A per contact are acceptable for the application.

Q: What are the packaging differences between these parts?

A: FTM-107-02-F-DV is packaged in tubes, suitable for lower-volume or manual assembly operations. BC050-14A-K0-0200-0160-0480-LB is packaged in tape and reel format, optimized for automated pick-and-place assembly processes.

Q: Are there temperature limitations when substituting?

A: Yes. FTM-107-02-F-DV operates from -55°C to 125°C, while BC050-14A-K0-0200-0160-0480-LB operates from -40°C to 105°C. Applications requiring operation below -40°C or above 105°C must use the FTM-107-02-F-DV.

Q: What is the current-carrying difference?

A: FTM-107-02-F-DV is rated at 2.8A per contact, while BC050-14A-K0-0200-0160-0480-LB is rated at 1A per contact. Applications requiring current above 1A per contact must use the FTM-107-02-F-DV.

Q: Are both parts RoHS compliant?

A: Yes, both FTM-107-02-F-DV and BC050-14A-K0-0200-0160-0480-LB are ROHS3 compliant with MSL 1 moisture sensitivity ratings.
