FTM-104-03-G-DV Equivalent & Substitute Parts

Part Overview

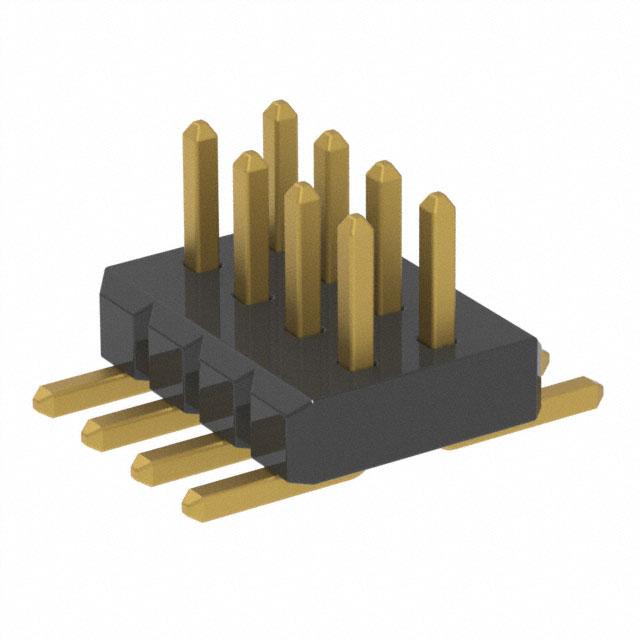

The FTM-104-03-G-DV is an active surface mount rectangular connector header manufactured by Samtec Inc. This 8-position, 1mm pitch connector is designed for board-to-board applications with solder termination and push-pull fastening. The part is ROHS3 compliant and maintains an unlimited moisture sensitivity level (MSL 1), making it suitable for standard manufacturing environments. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory constraints require alternative selection.

Substiute Parts

FTM-104-03-G-DV

Samtec Inc.In Stock: 1052FTM-104-03-G-DV Datasheet

Current PartRFQ

FTM-104-03-F-DV

Samtec Inc.In Stock: 1123FTM-104-03-F-DV Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FTM-104-03-G-DV is determined by strict equivalence across the following critical parameters:

• Connector Type: Header, Cuttable
• Contact Type: Male Pin
• Number of Positions: 8
• Number of Rows: 2
• Pitch - Mating: 0.039" (1.00mm)
• Row Spacing - Mating: 0.039" (1.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.065" (1.65mm)
• Insulation Height: 0.038" (0.97mm)
• Contact Shape: Square
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Operating Temperature: -55°C ~ 125°C
• Current Rating: 2.8A per Contact
• Product Status: Active
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The identified substitute part FTM-104-03-F-DV meets all critical electrical and mechanical parameters required for direct substitution in board-to-board connector applications.

Parameter Comparison

Engineering Selection Recommendations

Both the FTM-104-03-G-DV and FTM-104-03-F-DV are active products from Samtec Inc. with identical ROHS3 compliance and MSL 1 ratings. The parts are electrically and mechanically equivalent across all specified parameters. Selection between these parts may be based on inventory availability, as the FTM-104-03-F-DV currently maintains higher stock levels (1055 pcs vs. 975 pcs). Both parts are suitable for direct substitution in surface mount board-to-board connector applications requiring 8-position, 1mm pitch headers with solder termination.

Frequently Asked Questions (FAQ)

Q: Are FTM-104-03-G-DV and FTM-104-03-F-DV electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including 2.8A per contact current rating, operating temperature range of -55°C to 125°C, and contact material composition. They are electrically equivalent for all standard applications.

Q: Are these parts mechanically interchangeable?

A: Yes. Both parts have identical mechanical specifications including 8 positions, 2 rows, 1.00mm pitch, 0.065" mating contact length, and 0.038" insulation height. They are mechanically equivalent and will fit the same PCB footprints and mating connectors.

Q: What is the difference between FTM-104-03-G-DV and FTM-104-03-F-DV?

A: The primary difference is in the contact finish post specification. FTM-104-03-F-DV includes tin finish on the post contacts, while FTM-104-03-G-DV does not specify this parameter. Both maintain gold finish on mating contacts.

Q: Are both parts ROHS3 compliant?

A: Yes. Both FTM-104-03-G-DV and FTM-104-03-F-DV are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings.

Q: Can I use these connectors in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 125°C, making them suitable for standard industrial and commercial temperature ranges.

Q: What is the solder termination type for these connectors?

A: Both parts use solder termination for permanent board attachment. They are designed for surface mount assembly on PCBs.
