FSV360FP Equivalent & Substitute Parts

Part Overview

The FSV360FP is a Schottky rectifier diode manufactured by onsemi, rated for 60 V DC reverse voltage and 3 A average rectified current in a surface mount SOD-123HE package. This component is classified as obsolete, necessitating identification of equivalent and substitute parts for ongoing design requirements and production continuity. Equivalent parts maintain identical electrical and mechanical specifications, while substitute parts provide functional alternatives with acceptable parameter variations within the application envelope.

Key Parameters

Parameter	FSV360FP Value	Unit
Technology	Schottky	—
Voltage - DC Reverse (Vr) (Max)	60	V
Current - Average Rectified (Io)	3	A
Voltage - Forward (Vf) (Max) @ If	650 mV @ 3 A	mV @ A
Speed	Fast Recovery ≤ 500ns, > 200mA (Io)	—
Reverse Recovery Time (trr)	10.62	ns
Current - Reverse Leakage @ Vr	100 µA @ 60 V	µA @ V
Mounting Type	Surface Mount	—
Package / Case	SOD-123H	—
Operating Temperature - Junction	-55 to 150	°C
RoHS Status	ROHS3 Compliant	—
Moisture Sensitivity Level (MSL)	1 (Unlimited)	—

Substitute Part Grouping Explanation

Substitution of the FSV360FP is determined by the following critical parameters:

Mandatory Matching Parameters:

Technology: Schottky diode
Voltage - DC Reverse (Vr) (Max): 60 V minimum
Current - Average Rectified (Io): 3 A minimum
Mounting Type: Surface Mount
Operating Temperature Range: -55°C to 150°C minimum

Acceptable Variation Parameters:

Voltage - Forward (Vf): Variations within ±100 mV at rated current are acceptable
Reverse Recovery Time (trr): Variations within ±2 ns are acceptable
Current - Reverse Leakage: Variations up to 200 µA @ 60 V are acceptable
Package / Case: SOD-123H, SOD-123HE, SOD-123W, and DO-214AC packages are mechanically compatible with appropriate PCB layout modifications

Compliance Requirements:

RoHS3 Compliant
MSL 1 (Unlimited)
REACH Unaffected status

Substitute parts are grouped into two categories: direct equivalents (identical electrical and package specifications) and parametric equivalents (matching electrical ratings with alternative package options).

Parameter Comparison

Part Number	Manufacturer	Vr (Max) [V]	Io [A]	Vf (Max) @ If [mV @ A]	trr [ns]	Ir @ Vr [µA @ V]	Package	Status
FSV360FP	onsemi	60	3	650 @ 3	10.62	100 @ 60	SOD-123H	Obsolete

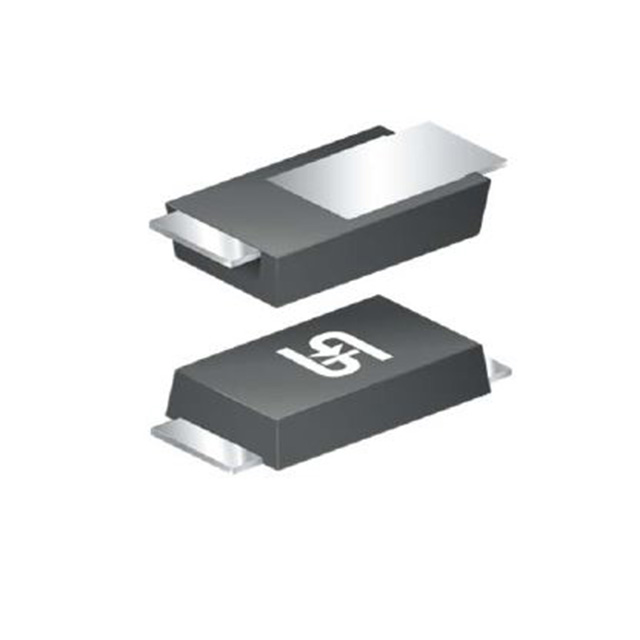

TSSE3H60	Taiwan Semiconductor Corporation	60	3	600 @ 3	—	100 @ 60	SOD-123H	Active
SMD36HE1-TP	Micro Commercial Co	60	3	650 @ 3	—	50 @ 60	SOD-123H	Active
SS3060HE-AU_R1_000A1	Panjit International Inc.	60	3	650 @ 3	—	100 @ 60	SOD-123H	Active
SS3060HE_R1_00001	Panjit International Inc.	60	3	650 @ 3	—	100 @ 60	SOD-123H	Active
SS36LW	Taiwan Semiconductor Corporation	60	3	700 @ 3	—	200 @ 60	SOD-123W	Active
SSA36	onsemi	60	3	750 @ 3	10.74	100 @ 60	DO-214AC	Not For New Designs
V3P6L-M3/H	Vishay General Semiconductor - Diodes Division	60	2.3	450 @ 1.5	—	900 @ 60	DO-220AA	Active

Engineering Selection Recommendations

Direct Equivalents (Recommended Primary Choices):

TSSE3H60, SMD36HE1-TP, SS3060HE-AU_R1_000A1, and SS3060HE_R1_00001 are direct electrical and mechanical equivalents to the FSV360FP. All four parts maintain the 60 V / 3 A rating, SOD-123H package configuration, and active product status. TSSE3H60 offers the lowest forward voltage drop at 600 mV, reducing power dissipation. SMD36HE1-TP provides the lowest reverse leakage current at 50 µA. SS3060HE-AU_R1_000A1 carries AEC-Q101 automotive qualification, suitable for automotive and high-reliability applications.

Alternative Package Substitutes:

SS36LW (SOD-123W package) and SSA36 (DO-214AC package) provide functional equivalence with package variations. SS36LW is active and maintains identical electrical ratings with a slightly larger reverse leakage specification. SSA36 is classified as "Not For New Designs" and exhibits higher forward voltage (750 mV), making it suitable only for legacy production support.

Current-Limited Substitute:

V3P6L-M3/H is a parametric equivalent with reduced current rating (2.3 A versus 3 A) and alternative DO-220AA package. This part is suitable only for applications with maximum current requirements below 2.3 A.

Compliance Status:

All recommended substitutes maintain ROHS3 compliance, MSL 1 rating, and REACH unaffected status, matching the original FSV360FP environmental and regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can TSSE3H60 directly replace FSV360FP without PCB modifications?

A: Yes. TSSE3H60 is a direct equivalent with identical SOD-123H package dimensions, electrical ratings (60 V / 3 A), and operating temperature range (-55°C to 150°C). No PCB layout changes are required.

Q: What is the difference between SMD36HE1-TP and SS3060HE-AU_R1_000A1?

A: Both are direct electrical equivalents with identical 60 V / 3 A ratings and SOD-123H packages. SS3060HE-AU_R1_000A1 carries AEC-Q101 automotive qualification and includes capacitance specification (125 pF @ 0 V, 1 MHz). SMD36HE1-TP offers lower reverse leakage (50 µA versus 100 µA). Selection depends on application requirements for automotive qualification.

Q: Why is V3P6L-M3/H listed as a substitute if it has lower current rating?

A: V3P6L-M3/H is a parametric equivalent suitable for applications where the maximum required current does not exceed 2.3 A. It provides superior forward voltage characteristics (450 mV @ 1.5 A) and is included for completeness in applications with reduced current demands.

Q: Can SSA36 be used in new designs?

A: SSA36 is classified as "Not For New Designs." While electrically functional, it exhibits higher forward voltage (750 mV) and uses an alternative DO-214AC package. It is suitable only for legacy production support or repair of existing equipment.

Q: What are the package differences between SOD-123H, SOD-123W, and DO-214AC?

A: SOD-123H and SOD-123W are both small outline packages suitable for high-density surface mount applications. DO-214AC (SMA) is a larger package with improved thermal characteristics. PCB footprint modifications are required when switching between these package types. Consult package datasheets for specific land pattern requirements.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating, matching the original FSV360FP environmental specifications.

Q: Which substitute offers the best thermal performance?

A: Thermal performance is determined by package type and junction-to-ambient thermal resistance. DO-214AC packages (SSA36, V3P6L-M3/H) typically offer superior thermal dissipation compared to SOD-123H variants due to larger die and lead area. Consult specific package thermal resistance specifications for quantitative comparison.

Q: Can TSSE3H60 and SMD36HE1-TP be used interchangeably?

A: Yes. Both are direct equivalents with identical electrical ratings, SOD-123H packages, and operating temperature ranges. The primary difference is reverse leakage current specification (100 µA for TSSE3H60 versus 50 µA for SMD36HE1-TP). Selection can be based on inventory availability or specific leakage current requirements.
