FSBB20CH60 Equivalent & Substitute Parts

Part Overview

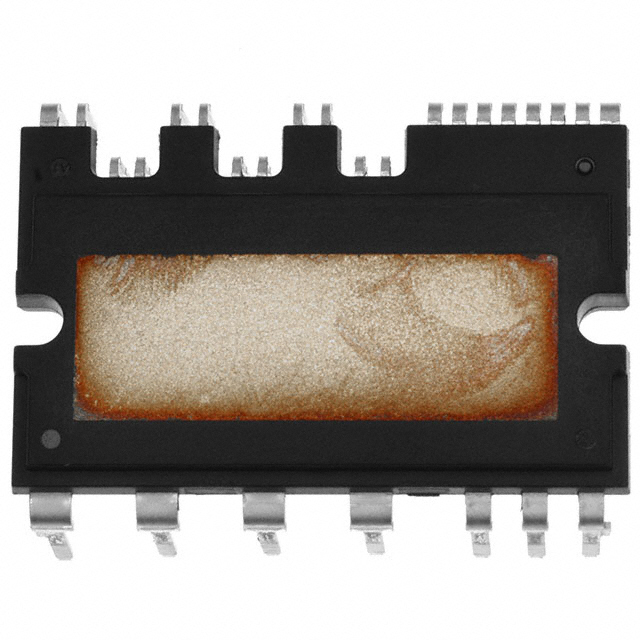

The FSBB20CH60 is a Smart Power Module (SPM) IGBT power driver designed for 3-phase applications operating at 600V with a 20A current rating. Manufactured by onsemi as part of the Motion SPM® 3 series, this component is packaged in a 27-PowerDIP Module format with through-hole mounting. The product is currently classified as Obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and component procurement.

Substiute Parts

FSBB20CH60

onsemiIn Stock: 2581FSBB20CH60 Datasheet

Current PartRFQ

FNC42060F2

onsemiIn Stock: 1984FNC42060F2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FSBB20CH60 is determined by the following core electrical and mechanical parameters:

Critical Matching Parameters:

• Type: IGBT power driver module
• Configuration: 3-phase topology
• Current Rating: 20 A
• Voltage Rating: 600 V
• Mounting Type: Through Hole

Acceptable Variation Parameters:

• Voltage Isolation: Minimum 2000Vrms (original specifies 2500Vrms)
• Package / Case: Alternative PowerDIP module formats with compatible through-hole footprints
• Series: Different Motion SPM® generations acceptable if electrical specifications align

The FNC42060F2 qualifies as a substitute based on matching all critical parameters while operating within acceptable isolation voltage tolerance and maintaining through-hole mounting compatibility.

Parameter Comparison

Engineering Selection Recommendations

The FNC42060F2 serves as a functional equivalent for FSBB20CH60 replacement applications. Both components share identical electrical specifications for current (20A), voltage (600V), and 3-phase IGBT configuration. The isolation voltage differential (2500Vrms vs. 2000Vrms) remains within acceptable margins for most industrial motor drive and power conversion applications.

Physical footprint differences exist between the 27-PowerDIP and 26-PowerDIP packages. PCB layout modifications may be required to accommodate the dimensional change from 1.205" to 1.024" module length. Both components maintain through-hole mounting compatibility.

Both parts carry REACH Unaffected status, confirming regulatory compliance for European market applications. The FNC42060F2 classification as "Not For New Designs" indicates onsemi's transition strategy; however, this designation does not preclude its use in legacy system maintenance or replacement scenarios where FSBB20CH60 availability is constrained.

Frequently Asked Questions (FAQ)

Q: Can FNC42060F2 directly replace FSBB20CH60 without PCB modifications?

A: Electrical compatibility is confirmed. Physical package dimensions differ (27-PowerDIP vs. 26-PowerDIP), requiring PCB layout assessment. Pin configuration and through-hole spacing must be verified against your specific board design before implementation.

Q: What is the significance of the isolation voltage difference (2500Vrms vs. 2000Vrms)?

A: Both isolation ratings exceed standard industrial requirements for 600V motor drive applications. The 500Vrms reduction in the FNC42060F2 does not compromise functional performance in typical 3-phase inverter topologies. System-level isolation requirements should be evaluated based on your application's safety standards.

Q: Why is FNC42060F2 marked "Not For New Designs" if it is a suitable substitute?

A: This designation reflects onsemi's product lifecycle management and indicates the component is transitioning toward obsolescence. For legacy system support and component replacement, the part remains functionally qualified. New product development should reference current-generation Motion SPM® modules from onsemi's active portfolio.

Q: Are there packaging or moisture sensitivity considerations for substitution?

A: FSBB20CH60 carries MSL 1 (Unlimited), indicating no moisture sensitivity constraints. FNC42060F2 lists MSL as Not Applicable, confirming equivalent or superior moisture tolerance. Both components support standard through-hole assembly processes without special handling requirements.

Q: What compliance certifications apply to both parts?

A: Both FSBB20CH60 and FNC42060F2 maintain REACH Unaffected status, confirming compliance with European chemical substance regulations. ECCN classification (EAR99) applies to both components, indicating standard commercial export treatment.
