FSB50550BSL Equivalent & Substitute Parts

Part Overview

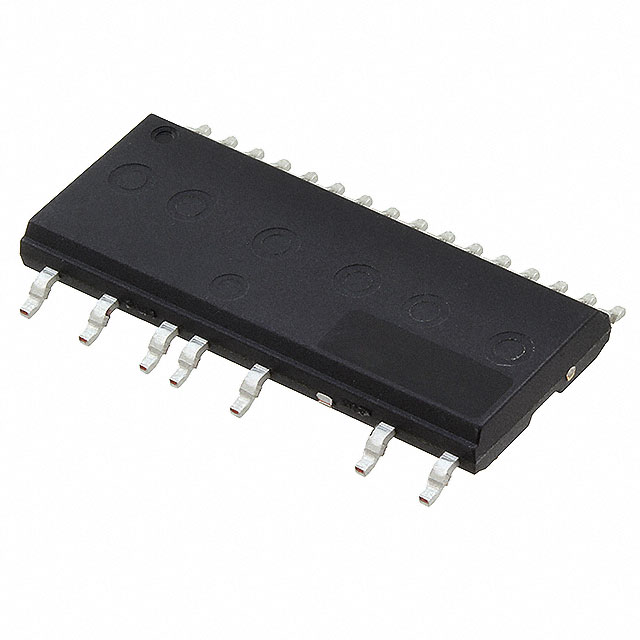

The FSB50550BSL is an Intelligent Power Module (IPM) manufactured by onsemi, designed as a Power Driver Module with MOSFET configuration for 3 Phase Inverter applications. This device operates at 500V with a 3A current rating and features a 23-PowerSMD Module package with Gull Wing mounting. The FSB50550BSL is classified as Obsolete, necessitating identification of active equivalent components for continued system design and maintenance applications. The part is RoHS3 compliant and maintains REACH Unaffected status.

Substiute Parts

FSB50550BSL

onsemiIn Stock: 1458FSB50550BSL Datasheet

Current PartRFQ

NFA50460R47

onsemiIn Stock: 1630NFA50460R47 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FSB50550BSL is determined by the following critical parameters:

Configuration Match: Both the main part and substitute maintain 3 Phase Inverter configuration, ensuring functional compatibility in motor drive and power conversion applications.

Series Continuity: Both components belong to the onsemi Motion SPM® 5 series, confirming design lineage and pin compatibility within the same product family.

Isolation Voltage: Both parts maintain 1500Vrms isolation voltage rating, meeting galvanic isolation requirements for industrial applications.

Mounting and Package: Both utilize Surface Mount technology with compatible PowerSMD module packaging, enabling direct PCB integration.

Compliance Standards: Both parts maintain RoHS3 compliance, REACH Unaffected status, and identical MSL ratings, ensuring regulatory and environmental compatibility.

Voltage and Current Ratings: The substitute part operates at higher voltage (600V vs 500V) and current (4A vs 3A) specifications, providing enhanced performance headroom for applications within the original design envelope.

Parameter Comparison

Engineering Selection Recommendations

The NFA50460R47 is the manufacturer-recommended substitute for the obsolete FSB50550BSL. Both components share identical isolation voltage, mounting methodology, and regulatory compliance certifications. The NFA50460R47 maintains Active product status, ensuring long-term availability and supply chain continuity.

The substitute part operates at elevated voltage (600V) and current (4A) ratings compared to the original specification (500V, 3A). This higher performance envelope accommodates the original application requirements while providing operational margin. The transition from MOSFET to IGBT technology within the same SPM® 5 series reflects onsemi's product evolution strategy while maintaining functional compatibility for 3 Phase Inverter configurations.

Both parts comply with RoHS3 and maintain identical MSL ratings, confirming suitability for equivalent manufacturing and storage protocols. The substitute's Active status eliminates obsolescence risk associated with the original component.

Frequently Asked Questions (FAQ)

Q: Can the NFA50460R47 directly replace the FSB50550BSL in existing designs?

A: The NFA50460R47 is the manufacturer-recommended substitute within the Motion SPM® 5 series. Both parts maintain identical isolation voltage (1500Vrms), Surface Mount configuration, and 3 Phase Inverter topology. The substitute's higher voltage and current ratings (600V/4A vs 500V/3A) operate within the original application envelope.

Q: What is the primary reason for substitution?

A: The FSB50550BSL is classified as Obsolete. The NFA50460R47 is an Active component from the same manufacturer and product series, providing continued availability and supply chain security.

Q: Are there packaging differences between these parts?

A: Both components utilize Tape & Reel (TR) packaging with Surface Mount configuration. The 23-PowerSMD Module package format remains consistent across both parts.

Q: Do compliance certifications differ between the main part and substitute?

A: Both parts maintain identical RoHS3 compliance, REACH Unaffected status, and Moisture Sensitivity Level 3 (168 Hours) ratings. ECCN classification remains EAR99 for both components.

Q: What is the significance of the IGBT vs MOSFET technology difference?

A: The substitute employs IGBT technology while the original uses MOSFET technology. Both are integrated within the same Motion SPM® 5 series architecture, maintaining functional compatibility for 3 Phase Inverter applications. This represents onsemi's product line evolution within the same family.

Q: Are isolation voltage requirements met by the substitute?

A: Yes. Both the FSB50550BSL and NFA50460R47 maintain 1500Vrms isolation voltage rating, meeting galvanic isolation specifications for industrial motor drive and power conversion applications.
