FSB50450AT Equivalent & Substitute Parts

Part Overview

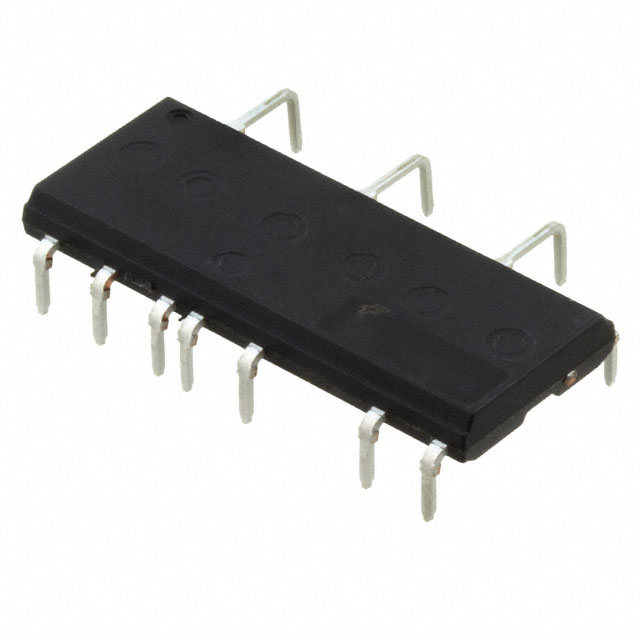

The FSB50450AT is a Power Driver Module manufactured by onsemi, featuring a 3-phase MOSFET configuration rated for 500V and 1.5A operation in a 23-PowerDIP Through Hole package. This component is part of the Motion SPM® 5 series and carries an Obsolete product status. Due to its obsolescence, identifying equivalent and substitute parts is essential for design continuity, system maintenance, and procurement planning.

Substiute Parts

FSB50450AT

onsemiIn Stock: 791FSB50450AT Datasheet

Current PartRFQ

NFA50460R47

onsemiIn Stock: 1630NFA50460R47 Datasheet

SimilarRFQ

FSB50550B

onsemiIn Stock: 1698FSB50550B Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the FSB50450AT are identified based on the following allowable parameter variations:

Voltage Rating: Substitutes may operate at equal or higher voltage ratings (500V or above) to ensure safe operation within the application's electrical constraints.

Current Rating: Substitutes must meet or exceed the 1.5A requirement to handle the intended load without thermal or electrical stress.

Voltage Isolation: All substitutes maintain the 1500Vrms isolation specification, ensuring equivalent safety and performance characteristics.

Configuration: Substitutes retain the 3-phase topology to maintain functional compatibility with existing circuit designs.

Series Compatibility: All substitutes belong to the Motion SPM® 5 series, ensuring design-level compatibility and pin configuration alignment.

Compliance Standards: All substitutes maintain ROHS3 compliance and REACH unaffected status, meeting regulatory requirements equivalent to the original part.

Parameter Comparison

Engineering Selection Recommendations

NFA50460R47 is an active production part with enhanced electrical specifications (600V, 4A) compared to the FSB50450AT. This part provides higher voltage and current headroom, making it suitable for applications requiring increased performance margins. However, it employs Surface Mount packaging rather than Through Hole, requiring PCB redesign for mechanical compatibility. The IGBT technology differs from the original MOSFET type, introducing different switching characteristics and thermal behavior.

FSB50550B maintains MOSFET technology and Through Hole mounting identical to the FSB50450AT, with doubled current capacity (3A versus 1.5A) at the same 500V voltage rating. This part is also Obsolete but offers direct mechanical compatibility with existing PCB designs. The 23-PowerDIP package dimensions differ slightly (0.551" versus 0.748"), requiring verification of footprint clearance in the target application.

Both substitutes maintain Motion SPM® 5 series alignment, ROHS3 compliance, and 1500Vrms isolation specifications. Selection between these options depends on whether mechanical compatibility (FSB50550B) or active production status and enhanced performance (NFA50460R47) takes priority in the design requirement.

Frequently Asked Questions (FAQ)

Q: Can NFA50460R47 directly replace FSB50450AT on the existing PCB?

A: No. NFA50460R47 uses Surface Mount packaging while FSB50450AT uses Through Hole mounting. PCB redesign is required. Additionally, the IGBT technology introduces different electrical characteristics compared to the original MOSFET design.

Q: Is FSB50550B a direct mechanical substitute?

A: FSB50550B uses Through Hole mounting compatible with the original design. However, the 23-PowerDIP package dimensions differ (0.551" versus 0.748"), requiring verification that the footprint and clearances accommodate the new package size.

Q: Why does NFA50460R47 have higher current and voltage ratings?

A: NFA50460R47 represents a newer generation within the Motion SPM® 5 series with enhanced specifications. Higher ratings provide additional design margin but do not guarantee backward compatibility with applications designed for lower specifications.

Q: Are all substitutes RoHS compliant?

A: Yes. All listed substitutes maintain ROHS3 compliance and REACH unaffected status, meeting regulatory requirements equivalent to the original FSB50450AT.

Q: What is the primary difference between MOSFET and IGBT types in these parts?

A: FSB50450AT and FSB50550B use MOSFET technology, while NFA50460R47 uses IGBT technology. These represent different semiconductor switching mechanisms with distinct switching speeds, thermal characteristics, and gate drive requirements. Selection depends on application-specific performance needs.

Q: Can I use FSB50550B as a drop-in replacement?

A: FSB50550B offers the closest mechanical compatibility due to Through Hole mounting and MOSFET technology. However, package dimension differences must be verified against PCB footprint specifications before implementation.
