FN9263S1-1-06 Equivalent & Substitute Parts

Part Overview

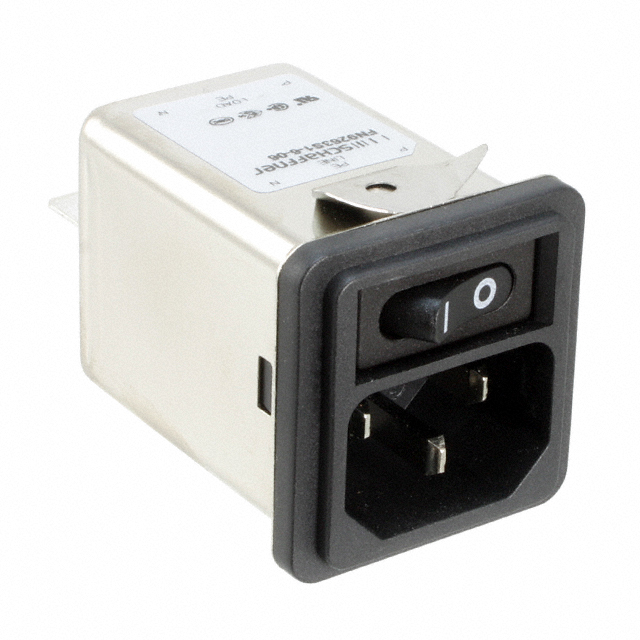

The FN9263S1-1-06 is a power entry connector receptacle module manufactured by Schaffner EMC Inc., designed for IEC 320-C14 panel mount applications. This component features filtered EMI/RFI protection with an integrated on-off switch and 1A current rating. The part is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations.

Substiute Parts

FN9263S1-1-06

Schaffner EMC Inc.In Stock: 1146FN9263S1-1-06 Datasheet

Current PartRFQ

FN9264S-1-06

Schaffner EMC Inc.In Stock: 848FN9264S-1-06 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FN9263S1-1-06 is determined by strict alignment of the following critical parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades - Module
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 1A
• Switch Features: Switch On-Off
• Mounting Type: Panel Mount, Snap-In
• Termination: Quick Connect - 0.250" (6.3mm)
• Material Flammability Rating: UL94 V-2
• Ingress Protection: IP40
• Approval Agency: CQC, CSA, ENEC, UL

The FN9264S-1-06 meets all critical functional and electrical parameters. Variations in panel cutout dimensions and panel thickness tolerance ranges reflect design refinements in the successor model but do not affect electrical compatibility or functional performance.

Parameter Comparison

Engineering Selection Recommendations

The FN9264S-1-06 is the direct substitute for the obsolete FN9263S1-1-06. Both components share identical electrical specifications, connector interface standards, filtering characteristics, and regulatory certifications. The FN9264S-1-06 maintains active product status with Schaffner EMC Inc., ensuring ongoing availability and supply chain continuity.

Panel cutout dimension differences require mechanical verification during integration. The FN9264S-1-06 accommodates panel thicknesses from 1.00mm to 2.50mm, compared to the original 0.60mm to 1.50mm range. Existing panel cutouts designed for the FN9263S1-1-06 may require modification to accommodate the FN9264S-1-06 mounting footprint.

Both components maintain identical compliance certifications (CQC, CSA, ENEC, UL) and RoHS3 compliance status, supporting direct substitution in regulated applications.

Frequently Asked Questions (FAQ)

Q: Can the FN9264S-1-06 replace the FN9263S1-1-06 in existing designs?

A: Electrical and functional compatibility is complete. Mechanical compatibility requires verification of panel cutout dimensions and thickness tolerance ranges. The FN9264S-1-06 panel cutout is 29.50mm x 33.00mm versus 28.30mm x 33.30mm for the original part.

Q: Are there differences in filtering performance between these parts?

A: Both components feature identical filtered (EMI, RFI) - Commercial filter type with 1A current rating. Filtering performance specifications are equivalent.

Q: What is the packaging difference between these parts?

A: The FN9263S1-1-06 packaging is unspecified in available documentation. The FN9264S-1-06 is supplied in Tray packaging.

Q: Do both parts meet the same regulatory standards?

A: Both components carry identical approval certifications: CQC, CSA, ENEC, and UL. RoHS3 compliance is maintained across both parts.

Q: Why is the FN9263S1-1-06 classified as obsolete?

A: Product obsolescence reflects Schaffner EMC Inc. lifecycle management. The FN9264S-1-06 represents the active successor product with equivalent electrical performance and enhanced mechanical specifications.
