FN660B-10-06 Equivalent & Substitute Parts

Part Overview

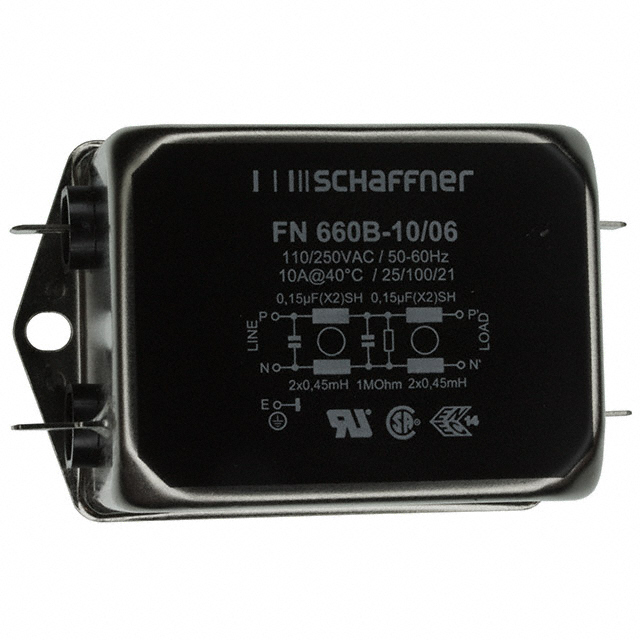

The FN660B-10-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 10A with DC to 400Hz operating frequency. This chassis-mount filter features a two-stage configuration with quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering.

The FN660B-10-06 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system continuity, ensure procurement availability, and support ongoing maintenance and replacement requirements for installations currently using this component.

Substiute Parts

FN660B-10-06

Schaffner EMC Inc.In Stock: 1256FN660B-10-06 Datasheet

Current PartRFQ

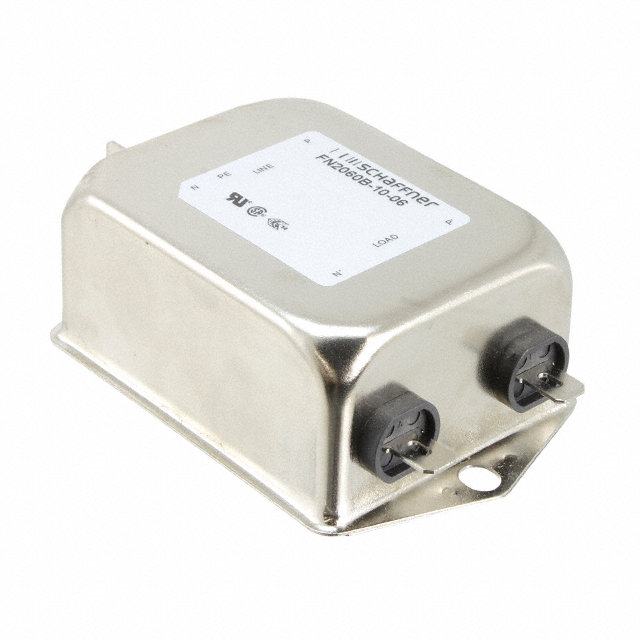

FN2060B-10-06

Schaffner EMC Inc.In Stock: 835FN2060B-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN660B-10-06 is based on electrical and mechanical parameter compatibility. The following criteria determine valid substitutes:

Primary Compatibility Parameters:

• Voltage rating: 250VAC (exact match required)
• Current rating: 10A (exact match required)
• Operating frequency: DC ~ 400Hz (exact match required)
• Filter type: Single Phase (exact match required)
• Configuration: Two Stage (exact match required)
• Mounting type: Chassis Mount (exact match required)
• Termination style: Quick Connect (exact match required)
• Operating temperature range: -25°C ~ 100°C (exact match required)

The FN2060B-10-06 meets all primary compatibility parameters and qualifies as a direct substitute for the obsolete FN660B-10-06.

Parameter Comparison

Engineering Selection Recommendations

The FN2060B-10-06 is the direct substitute for the obsolete FN660B-10-06. Both components share identical electrical ratings (250VAC, 10A, DC ~ 400Hz) and mechanical specifications (chassis mount, quick-connect termination, two-stage single-phase configuration).

The FN2060B-10-06 offers the advantage of active product status, ensuring ongoing availability and support. It carries expanded regulatory approvals including CE certification in addition to CSA, ENEC, and UR certifications held by the original part. The substitute meets ROHS3 compliance, representing current environmental standards.

The inductance difference (800µH versus 450µH) reflects design evolution within the FN 2060 series while maintaining functional compatibility for general-purpose EMC/EMI filtering applications at the specified electrical parameters.

Frequently Asked Questions (FAQ)

Q: Can the FN2060B-10-06 directly replace the FN660B-10-06 in existing installations?

A: Yes. Both components share identical voltage, current, frequency, mounting, and termination specifications. The FN2060B-10-06 is electrically and mechanically compatible for direct substitution.

Q: What is the significance of the inductance difference between these parts?

A: The FN2060B-10-06 has 800µH inductance compared to 450µH in the FN660B-10-06. Both values are within the design parameters for single-phase EMC/EMI filtering at 10A, 250VAC. The higher inductance in the newer design reflects current filtering technology while maintaining compatibility with the specified operating frequency range.

Q: Why is the FN660B-10-06 listed as obsolete?

A: Product obsolescence typically reflects manufacturer discontinuation decisions. The FN2060B-10-06 represents the current active equivalent from Schaffner EMC Inc. for this application category.

Q: Are there packaging differences between these parts?

A: The FN660B-10-06 packaging is unspecified in available data. The FN2060B-10-06 is supplied in Tray packaging. Confirm packaging requirements with your procurement specifications.

Q: What regulatory certifications apply to the substitute part?

A: The FN2060B-10-06 holds CE, CSA, ENEC, and UR approvals. The original FN660B-10-06 held CSA, ENEC, and UR certifications. The substitute provides expanded regulatory coverage suitable for broader market applications.
