FN660-10-06 Equivalent & Substitute Parts Reference

Part Overview

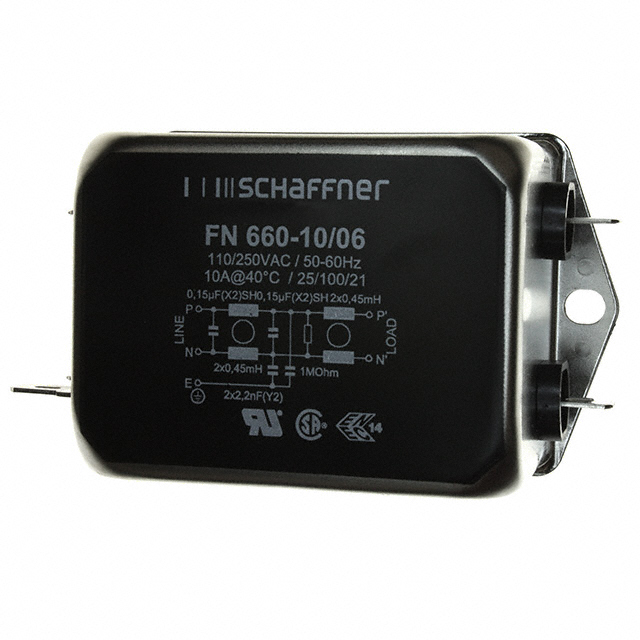

The FN660-10-06 is a Single Phase EMC/EMI Line Filter rated at 10 A and 250V AC, designed for general-purpose filtering applications with a two-stage configuration and chassis mounting. The part is obsolete, necessitating the identification and selection of alternative models that maintain compatibility with the main electrical, mechanical, and regulatory parameters.

Substiute Parts

FN660-10-06

Schaffner EMC Inc.In Stock: 1006FN660-10-06 Datasheet

Current PartRFQ

FN2060-10-06

Schaffner EMC Inc.In Stock: 3384FN2060-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined by strict equivalence or compatibility of the following parameters: filter type (Single Phase), configuration (Two Stage), voltage rating (250V AC), current rating (10 A), frequency range (DC ~ 400Hz), mounting type (Chassis Mount), termination style (Quick Connect), approval agency certifications, operating temperature range, RoHS status, and REACH status. Only parts meeting these criteria are presented as substitutes.

Parameter Comparison

Engineering Selection Recommendations

The FN2060-10-06 line filter is listed as a substitute for the FN660-10-06 based on part status, compliance, and included certifications. Both parts are RoHS and REACH compliant, operate in the same voltage and current ranges, and share mounting and termination styles. The substitute part, FN2060-10-06, is active and maintains approval agency listings comparable to those of the original.

Frequently Asked Questions (FAQ)

Q1: What are the critical parameters to consider when selecting a substitute for FN660-10-06?
A1: Filter type, configuration, voltage and current ratings, frequency range, mounting type, termination style, approval agency compliance, operating temperature range, and environmental compliance status are essential for ensuring a valid substitution.

Q2: Can FN2060-10-06 be used as a direct substitute for FN660-10-06?
A2: FN2060-10-06 meets the required electrical, mechanical, and compliance parameters provided for substitution in this product category.

Q3: Are the chassis mount and quick connect features maintained in the substitute part?
A3: Both FN660-10-06 and FN2060-10-06 offer chassis mount and quick connect termination styles as specified.

Q4: How do approval agency listings compare between the main and substitute parts?
A4: Approval agency certifications for both parts include CSA, ENEC, and UR; FN2060-10-06 additionally carries CE listing. Approval agency compliance is maintained.

Q5: Are there differences in RoHS and REACH compliance status?
A5: Both the original and substitute parts are RoHS compliant and REACH unaffected according to the provided information.
