FN610B-6-06 Equivalent & Substitute Parts

Part Overview

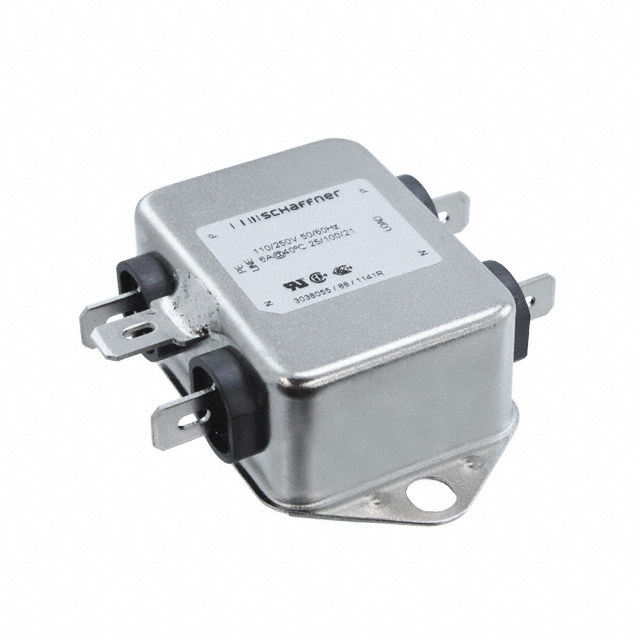

The FN610B-6-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 6A with DC to 400Hz operating frequency. This chassis-mount filter features quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering.

The FN610B-6-06 has reached obsolete product status. Identifying equivalent substitute parts is necessary to maintain system availability and ensure continued procurement of compatible filtering solutions that meet the same electrical and mechanical specifications.

Substiute Parts

FN610B-6-06

Schaffner EMC Inc.In Stock: 1188FN610B-6-06 Datasheet

Current PartRFQ

FN2010B-6-06

Schaffner EMC Inc.In Stock: 1187FN2010B-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN610B-6-06 is determined by strict equivalence across the following critical parameters:

• Voltage rating: 250VAC
• Current capacity: 6A
• Filter topology: Single-phase, single-stage configuration
• Operating frequency range: DC to 400Hz
• Mounting interface: Chassis mount with quick-connect termination
• Regulatory compliance: CSA, ENEC, and UR certifications
• Temperature operating range: -25°C to 100°C

The FN2010B-6-06 meets all these criteria and is classified as an active substitute for the obsolete FN610B-6-06.

Parameter Comparison

Engineering Selection Recommendations

The FN2010B-6-06 is the direct substitute for the obsolete FN610B-6-06. Both parts share identical electrical ratings (250VAC, 6A, DC to 400Hz), mechanical interfaces (chassis mount, quick-connect), and regulatory certifications (CSA, ENEC, UR).

The FN2010B-6-06 carries active product status and is currently in stock, making it the appropriate selection for new designs and replacement applications. The FN2010B-6-06 meets ROHS3 compliance, representing an updated regulatory posture compared to the FN610B-6-06.

The inductance difference (750µH versus 1mH) reflects design evolution within the FN 2010 series. Both values are within acceptable filtering performance parameters for the specified 6A, 250VAC application envelope.

Frequently Asked Questions (FAQ)

Q: Can the FN2010B-6-06 directly replace the FN610B-6-06 in existing designs?

A: Yes. Both parts meet identical electrical specifications (250VAC, 6A, DC to 400Hz), share the same mounting type (chassis mount), and use identical termination (quick-connect). Regulatory certifications are equivalent across both parts.

Q: What is the significance of the inductance difference between these parts?

A: The FN2010B-6-06 specifies 1mH inductance compared to 750µH in the FN610B-6-06. Both values are design parameters within the respective product series and do not affect compatibility for the stated 6A, 250VAC application.

Q: Why is the FN610B-6-06 listed as obsolete?

A: The FN610B-6-06 has reached end-of-life status. The FN2010B-6-06 represents the current-generation equivalent from Schaffner EMC Inc. and is the recommended selection for ongoing procurement.

Q: Are there packaging differences between these parts?

A: The FN610B-6-06 is supplied with standard packaging, while the FN2010B-6-06 is supplied in tray packaging. Both packaging formats are suitable for component handling and storage in production environments.

Q: Do both parts meet the same regulatory standards?

A: Yes. Both the FN610B-6-06 and FN2010B-6-06 carry CSA, ENEC, and UR approvals. The FN2010B-6-06 additionally meets ROHS3 compliance requirements.
