FN610B-3-06 Equivalent & Substitute Parts

Part Overview

The FN610B-3-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 3A with DC to 400Hz operating frequency. This chassis-mount filter is designed for general-purpose applications requiring electromagnetic compatibility filtering in single-phase power systems.

The FN610B-3-06 has reached obsolete product status. Identifying equivalent substitute parts is necessary to maintain system continuity, ensure procurement availability, and support ongoing maintenance and replacement requirements for installations currently using this component.

Substiute Parts

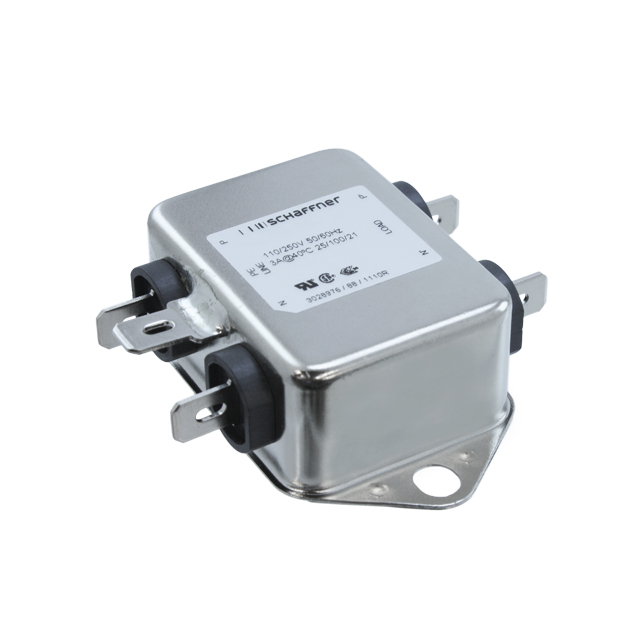

FN610B-3-06

Schaffner EMC Inc.In Stock: 957FN610B-3-06 Datasheet

Current PartRFQ

FN2010B-3-06

Schaffner EMC Inc.In Stock: 1118FN2010B-3-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN610B-3-06 is based on electrical and mechanical parameter equivalence within the Schaffner EMC line filter product family. The substitute part FN2010B-3-06 maintains compatibility through the following critical parameters:

• Voltage rating: 250VAC (identical)
• Current rating: 3A (identical)
• Operating frequency range: DC ~ 400Hz (identical)
• Filter type: Single Phase (identical)
• Configuration: Single Stage (identical)
• Mounting type: Chassis Mount (identical)
• Termination style: Quick Connect (identical)
• Operating temperature range: -25°C ~ 100°C (identical)
• Regulatory approvals: CSA, ENEC, UR (identical)

The FN2010B-3-06 represents an active product within the current Schaffner EMC portfolio, providing direct functional replacement capability for the obsolete FN610B-3-06.

Parameter Comparison

Engineering Selection Recommendations

The FN2010B-3-06 is the direct substitute for the obsolete FN610B-3-06. Selection is based on the following engineering criteria:

Product Status: The FN2010B-3-06 maintains active product status within the Schaffner EMC portfolio, ensuring long-term availability and continued manufacturer support compared to the obsolete FN610B-3-06.

Electrical Equivalence: Both parts share identical voltage, current, frequency, and filtering characteristics, enabling direct functional replacement in existing circuit designs without modification.

Regulatory Compliance: Both parts carry identical regulatory approvals (CSA, ENEC, UR) and maintain current RoHS3 compliance status, meeting contemporary environmental and safety standards.

Mechanical Compatibility: Identical mounting type (Chassis Mount) and termination style (Quick Connect) ensure physical and electrical interface compatibility with existing installations.

Frequently Asked Questions (FAQ)

Q: Can the FN2010B-3-06 directly replace the FN610B-3-06 in existing applications?

A: Yes. The FN2010B-3-06 maintains identical electrical ratings (250VAC, 3A, DC~400Hz), filter configuration (single-phase, single-stage), mounting type (chassis mount), and termination style (quick connect). Direct substitution is supported without circuit modification.

Q: What is the difference in inductance between these parts?

A: The FN610B-3-06 has 2mH inductance, while the FN2010B-3-06 has 2.5mH inductance. Both values fall within acceptable operating parameters for single-phase EMC filtering at the specified voltage and current ratings.

Q: Are there packaging differences between these parts?

A: The FN610B-3-06 uses standard packaging, while the FN2010B-3-06 is supplied in tray packaging. This difference affects procurement and handling but does not impact electrical or mechanical performance.

Q: Why is the FN610B-3-06 listed as obsolete?

A: The FN610B-3-06 has been discontinued by Schaffner EMC Inc. The FN2010B-3-06 represents the current active product offering with equivalent specifications and improved compliance status (ROHS3).

Q: Do both parts meet current regulatory requirements?

A: Yes. Both parts carry CSA, ENEC, and UR approvals. The FN2010B-3-06 additionally meets ROHS3 compliance, reflecting current environmental standards.
