FN610B-20-06 Equivalent & Substitute Parts

Part Overview

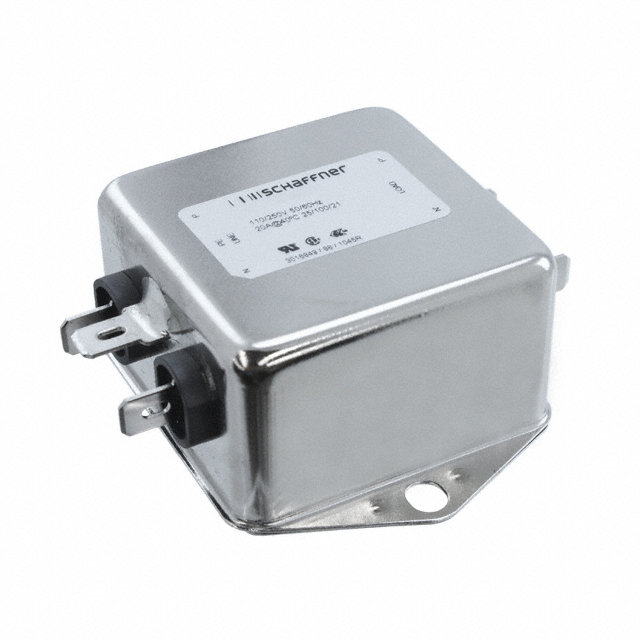

The FN610B-20-06 is a single-phase EMC/EMI line filter rated for 250VAC at 20A with DC to 400Hz operating frequency range. This chassis-mount filter features quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering.

The FN610B-20-06 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for new designs or replacement applications.

Substiute Parts

FN610B-20-06

Schaffner EMC Inc.In Stock: 902FN610B-20-06 Datasheet

Current PartRFQ

FN2010B-20-06

Schaffner EMC Inc.In Stock: 1132FN2010B-20-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN610B-20-06 is based on electrical and mechanical parameter equivalence within the Schaffner EMC line filter product family. The primary substitute, FN2010B-20-06, maintains compatibility through the following critical parameters:

• Voltage rating: 250VAC (identical)
• Current capacity: 20A (identical)
• Operating frequency: DC ~ 400Hz (identical)
• Filter type: Single Phase (identical)
• Configuration: Single Stage (identical)
• Mounting type: Chassis Mount (identical)
• Termination style: Quick Connect (identical)
• Operating temperature range: -25°C ~ 100°C (identical)
• Approval certifications: CSA, ENEC, UR (identical)

The FN2010B-20-06 represents an active product within the current Schaffner portfolio, providing long-term availability and supply chain continuity for applications previously served by the obsolete FN610B-20-06.

Parameter Comparison

Engineering Selection Recommendations

The FN2010B-20-06 is the direct substitute for the obsolete FN610B-20-06. Both parts maintain identical electrical ratings, frequency response, and regulatory certifications (CSA, ENEC, UR). The FN2010B-20-06 carries active product status, ensuring availability and ongoing manufacturer support.

The FN2010B-20-06 offers enhanced compliance through ROHS3 certification compared to the RoHS compliance of the original part. Both parts are REACH unaffected and carry the same EAR99 export classification.

Selection of the FN2010B-20-06 is appropriate for applications requiring 250VAC, 20A single-phase EMC filtering with DC to 400Hz frequency operation and chassis-mount installation.

Frequently Asked Questions (FAQ)

Q: Can the FN2010B-20-06 directly replace the FN610B-20-06 in existing designs?

A: Yes. Both parts share identical electrical specifications (250VAC, 20A, DC ~ 400Hz), filter configuration (single-phase, single-stage), mounting type (chassis mount), and termination style (quick connect). Regulatory certifications are equivalent.

Q: What is the difference in inductance between these parts?

A: The FN610B-20-06 has 480µH inductance, while the FN2010B-20-06 has 600µH inductance. Both values are within the operating parameters for 250VAC, 20A single-phase filtering applications.

Q: Does the FN2010B-20-06 meet current environmental compliance standards?

A: Yes. The FN2010B-20-06 is ROHS3 compliant and REACH unaffected, meeting current environmental regulations. The original FN610B-20-06 is RoHS compliant and REACH unaffected.

Q: What is the packaging difference?

A: The FN610B-20-06 is supplied with standard packaging, while the FN2010B-20-06 is supplied in tray packaging. Both are suitable for component handling and storage.

Q: Are there any temperature or frequency limitations when substituting?

A: No. Both parts operate across the identical temperature range (-25°C ~ 100°C) and frequency range (DC ~ 400Hz). No operational limitations exist for substitution.
