FN610-6-06 Equivalent & Substitute Parts

Part Overview

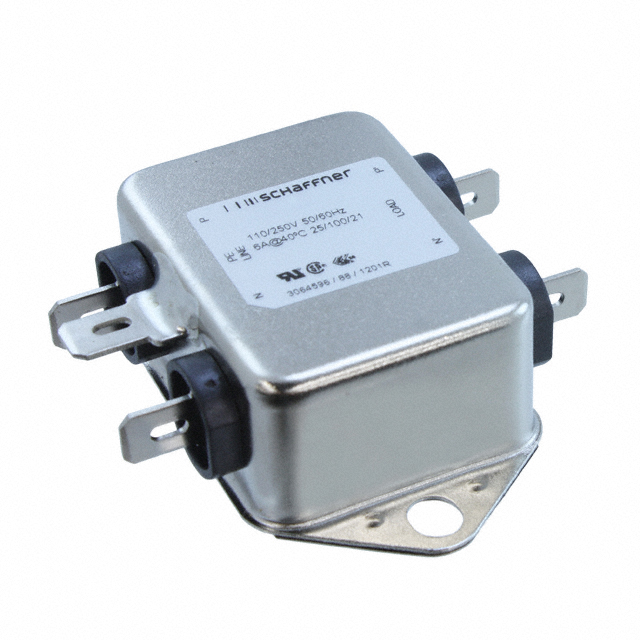

The FN610-6-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 6A with DC to 400Hz operating frequency range. This chassis-mount filter features quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The product is currently obsolete, making identification of suitable substitute components essential for system maintenance, repair, and new design implementations where equivalent filtering performance is required.

Substiute Parts

FN610-6-06

Schaffner EMC Inc.In Stock: 863FN610-6-06 Datasheet

Current PartRFQ

FN2010-6-06

Schaffner EMC Inc.In Stock: 1985FN2010-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The FN2010-6-06 qualifies as a direct substitute for the FN610-6-06 based on the following critical parameters:

• Voltage Rating: Both parts are rated for 250VAC
• Current Rating: Both parts are rated for 6A
• Operating Frequency: Both support DC ~ 400Hz operation
• Filter Type & Configuration: Both are single-phase, single-stage EMC/EMI line filters
• Mounting & Termination: Both feature chassis mount with quick-connect termination
• Operating Temperature Range: Both operate across -25°C ~ 100°C
• Regulatory Approvals: Both hold CSA, ENEC, and UR certifications
• Applications: Both are designated for general-purpose use

The FN2010-6-06 represents an active product from the same manufacturer's current product line, providing functional equivalence with enhanced availability and ongoing support.

Parameter Comparison

Engineering Selection Recommendations

The FN2010-6-06 is the designated substitute for the obsolete FN610-6-06. Selection is based on:

• Product Status: The FN610-6-06 is obsolete with no ongoing manufacturing or support. The FN2010-6-06 is an active product with current availability (1904 units in stock versus 833 units for the obsolete part).
• Electrical Equivalence: Both parts maintain identical voltage, current, frequency, and temperature specifications, ensuring functional compatibility in existing applications.
• Regulatory Compliance: Both parts hold equivalent certifications (CSA, ENEC, UR) and meet current RoHS requirements, with the FN2010-6-06 meeting the more recent ROHS3 standard.
• Physical Compatibility: Identical mounting type (chassis mount) and termination style (quick connect) ensure direct mechanical replacement without circuit redesign.

Frequently Asked Questions (FAQ)

Q: Can the FN2010-6-06 directly replace the FN610-6-06 in existing applications?

A: Yes. Both parts share identical electrical ratings (250VAC, 6A, DC~400Hz), mounting configuration (chassis mount), and termination method (quick connect). The FN2010-6-06 is the active equivalent product.

Q: What is the difference in inductance between these parts?

A: The FN610-6-06 has 750µH inductance while the FN2010-6-06 has 1mH inductance. Both values fall within the operating specifications for single-stage EMC/EMI line filters at this current rating and frequency range.

Q: Are there packaging differences between these parts?

A: The FN610-6-06 has unspecified packaging, while the FN2010-6-06 is supplied in box packaging. This does not affect electrical or mechanical compatibility.

Q: Why is the FN610-6-06 marked as obsolete?

A: The FN610-6-06 has been superseded by the FN2010-6-06 in Schaffner EMC Inc.'s product line. The newer series provides equivalent performance with improved availability and ongoing manufacturer support.

Q: Do both parts meet current regulatory standards?

A: Yes. Both parts hold CSA, ENEC, and UR certifications. The FN2010-6-06 additionally meets ROHS3 compliance, representing the current regulatory standard.
