FN610-1-06 Equivalent & Substitute Parts

Part Overview

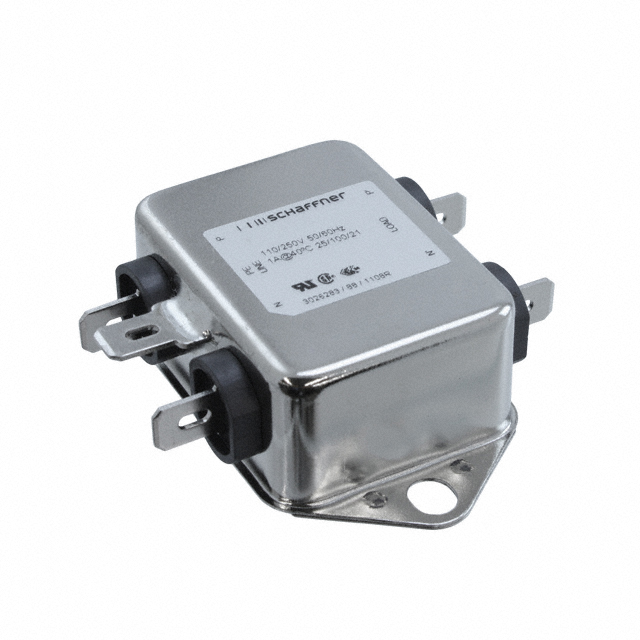

The FN610-1-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 1A with DC to 400Hz operating frequency range. This chassis-mount filter is designed for general-purpose applications requiring electromagnetic compatibility filtering. The product is currently obsolete, making identification of suitable substitute components essential for system redesign, maintenance, or production continuation.

Substiute Parts

FN610-1-06

Schaffner EMC Inc.In Stock: 966FN610-1-06 Datasheet

Current PartRFQ

FN2010-1-06

Schaffner EMC Inc.In Stock: 2000FN2010-1-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The FN2010-1-06 qualifies as a direct substitute for the FN610-1-06 based on the following critical parameters:

Matching Parameters:

• Voltage rating: 250VAC (identical)
• Current rating: 1A (identical)
• Operating frequency: DC ~ 400Hz (identical)
• Filter type: Single Phase (identical)
• Configuration: Single Stage (identical)
• Mounting type: Chassis Mount (identical)
• Termination style: Quick Connect (identical)
• Operating temperature range: -25°C ~ 100°C (identical)
• Approval agencies: CSA, ENEC, UR (identical)

Differing Parameters:

• Inductance: FN610-1-06 = 3mH; FN2010-1-06 = 12mH
• Series designation: FN 610 vs. FN 2010
• Product status: Obsolete vs. Active
• RoHS compliance level: RoHS Compliant vs. ROHS3 Compliant
• Packaging: Not specified vs. Tray

The FN2010-1-06 represents an active-production successor within the Schaffner EMC line filter portfolio, maintaining electrical and mechanical compatibility while offering enhanced inductance characteristics and current compliance standards.

Parameter Comparison

Engineering Selection Recommendations

The FN2010-1-06 is the designated substitute for the obsolete FN610-1-06. Both components maintain identical electrical ratings (250VAC, 1A, DC~400Hz) and mechanical specifications (chassis mount, quick connect termination). The FN2010-1-06 is currently in active production with enhanced ROHS3 compliance status, ensuring long-term availability and supply chain continuity.

The primary technical difference is inductance specification: the FN2010-1-06 provides 12mH compared to the FN610-1-06's 3mH. This increased inductance value may affect EMI filtering characteristics and should be evaluated within the context of the target application's frequency response requirements and attenuation specifications.

Both components carry identical regulatory approvals (CSA, ENEC, UR) and operate across the same temperature range (-25°C to 100°C), supporting direct substitution in equivalent circuit designs.

Frequently Asked Questions (FAQ)

Q: Can the FN2010-1-06 directly replace the FN610-1-06 in existing designs?

A: Yes, from an electrical and mechanical standpoint. Both components share identical voltage, current, frequency, mounting, and termination specifications. However, the inductance difference (12mH vs. 3mH) requires verification that the application's EMI filtering requirements remain satisfied with the higher inductance value.

Q: What is the significance of the inductance difference between these parts?

A: Inductance directly affects the filter's frequency response and attenuation characteristics. The FN2010-1-06's higher inductance (12mH) provides greater filtering effectiveness at certain frequency ranges but may introduce different impedance characteristics. Circuit-level analysis is necessary to confirm compatibility with specific EMI suppression targets.

Q: Why is the FN610-1-06 obsolete?

A: The FN610-1-06 has been superseded by the FN2010-1-06 within Schaffner's product line. The newer variant maintains functional compatibility while offering improved compliance standards (ROHS3) and active production status.

Q: Are the regulatory approvals identical between these parts?

A: Yes. Both the FN610-1-06 and FN2010-1-06 carry CSA, ENEC, and UR approvals, ensuring equivalent regulatory compliance for applications requiring these certifications.

Q: What packaging differences exist between these components?

A: The FN610-1-06 packaging specification is not provided in the technical data. The FN2010-1-06 is supplied in Tray packaging. Confirm packaging requirements with your procurement or assembly process specifications.

Q: Are both components RoHS compliant?

A: Yes. The FN610-1-06 is RoHS Compliant, and the FN2010-1-06 is ROHS3 Compliant, indicating enhanced compliance with current RoHS directives.
