FN610-10-06 Equivalent & Substitute Parts

Part Overview

The FN610-10-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 10A with DC to 400Hz operating frequency. This chassis-mount filter features quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering.

The FN610-10-06 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system continuity, ensure procurement availability, and support ongoing maintenance and production requirements for applications currently utilizing this component.

Substiute Parts

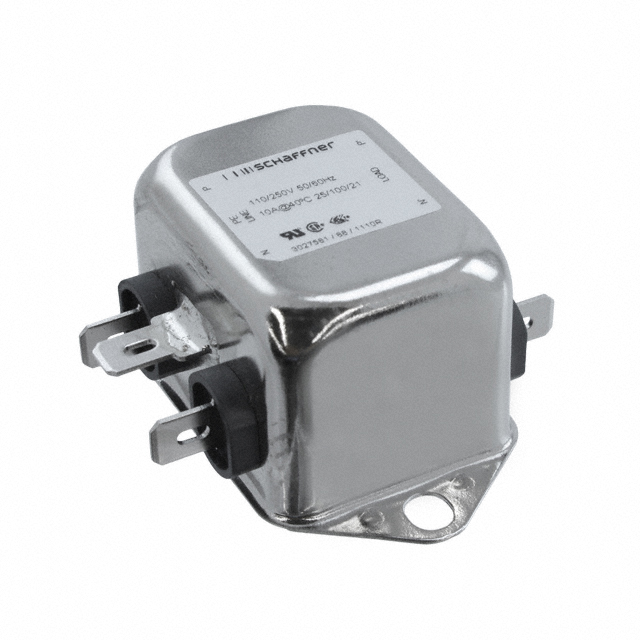

FN610-10-06

Schaffner EMC Inc.In Stock: 1194FN610-10-06 Datasheet

Current PartRFQ

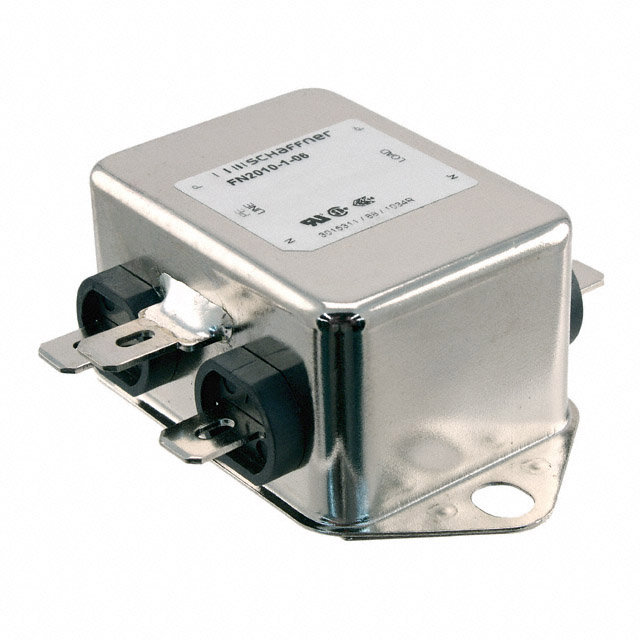

FN2010-10-06

Schaffner EMC Inc.In Stock: 1705FN2010-10-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN610-10-06 is based on electrical and mechanical parameter equivalence within the Schaffner EMC line filter product family. The following parameters determine substitution eligibility:

• Voltage rating: 250VAC (exact match required)
• Current rating: 10A (exact match required)
• Operating frequency: DC ~ 400Hz (exact match required)
• Filter type: Single Phase (exact match required)
• Configuration: Single Stage (exact match required)
• Mounting type: Chassis Mount (exact match required)
• Termination style: Quick Connect (exact match required)
• Operating temperature range: -25°C ~ 100°C (exact match required)
• Regulatory approvals: CSA, ENEC, UR (exact match required)

The FN2010-10-06 meets all substitution criteria and is classified as an active product with current manufacturing status and improved inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The FN2010-10-06 is the direct substitute for the obsolete FN610-10-06. Both components share identical electrical ratings, frequency response, mounting configuration, and regulatory certifications. The FN2010-10-06 is manufactured by the same supplier and maintains active product status with established supply chain availability.

The FN2010-10-06 offers improved RoHS3 compliance status compared to the FN610-10-06. The inductance specification differs (800µH versus 450µH); this parameter variation reflects design evolution within the FN 2010 series and does not affect functional substitution for applications meeting the specified electrical and mechanical requirements.

Frequently Asked Questions (FAQ)

Q: Can the FN2010-10-06 directly replace the FN610-10-06 in existing applications?

A: Yes. Both components meet identical electrical specifications (250VAC, 10A, DC ~ 400Hz), share the same filter type and configuration, and carry equivalent regulatory approvals. Mechanical compatibility is confirmed through identical mounting type and termination style.

Q: What is the significance of the inductance difference between these parts?

A: The inductance values (450µH for FN610-10-06 and 800µH for FN2010-10-06) reflect design variations within the respective product series. Both values are within the operational parameters for single-stage, single-phase EMC filtering at the specified voltage and current ratings. Component selection should be based on the primary electrical and mechanical parameters listed in the Key Parameters table.

Q: Why is the FN610-10-06 classified as obsolete?

A: Product obsolescence reflects manufacturing discontinuation by Schaffner EMC Inc. The FN2010-10-06 represents the current active equivalent within the product family, ensuring continued availability and support for applications requiring this filter specification.

Q: Are packaging differences relevant to substitution?

A: Packaging format (tray for FN2010-10-06 versus unspecified for FN610-10-06) does not affect component functionality or electrical performance. Packaging selection is determined by procurement and inventory management requirements rather than technical compatibility.

Q: What regulatory certifications apply to both parts?

A: Both the FN610-10-06 and FN2010-10-06 carry CSA, ENEC, and UR approvals, confirming compliance with applicable safety and electromagnetic compatibility standards for single-phase line filtering applications.
