FN3258-30-47 Equivalent & Substitute Parts

Part Overview

The FN3258-30-47 is a three-phase delta EMC/EMI line filter rated for 30 A with chassis mount configuration and terminal block termination. This component is designed for general-purpose applications requiring electromagnetic compatibility filtering in three-phase AC systems. The part is currently listed as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

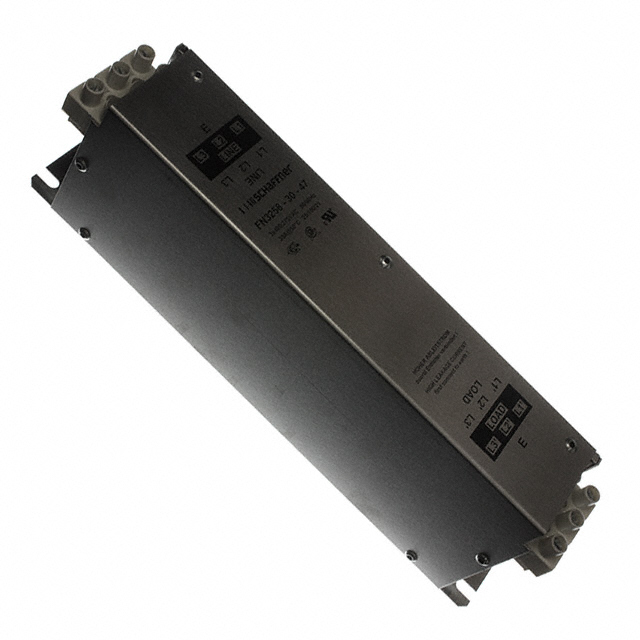

FN3258-30-47

Schaffner EMC Inc.In Stock: 1065FN3258-30-47 Datasheet

Current PartRFQ

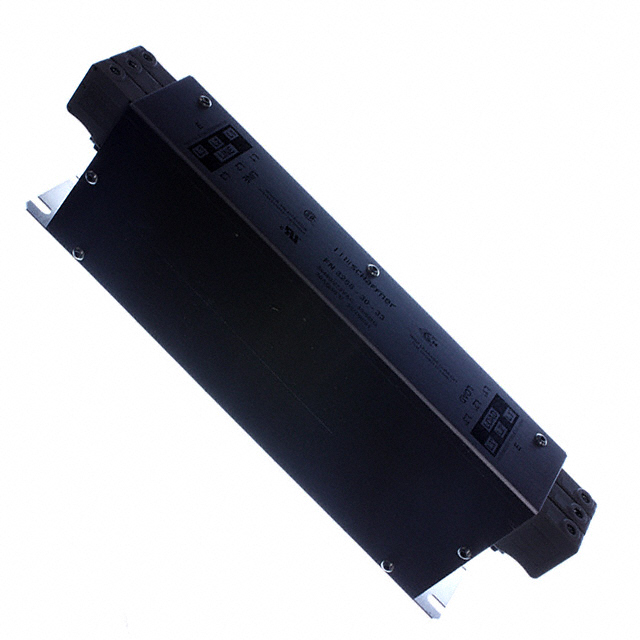

FN3258-30-33

Schaffner EMC Inc.In Stock: 1046FN3258-30-33 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The FN3258-30-47 can be substituted with the FN3258-30-33 based on the following critical parameters that remain constant across both parts:

• Filter Type: Three Phase (Delta)
• Configuration: Single Stage
• Current Rating: 30 A
• Voltage Rating - Phase to Ground/Neutral: 277 V
• Voltage Rating - Phase to Phase: 480 V
• Frequency - Operating: DC ~ 60Hz
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Operating Temperature Range: -25°C ~ 100°C
• Approval Agencies: CSA, ENEC, UR
• Series: FN 3258

The primary distinction between these parts is product status and packaging format. The FN3258-30-33 is an active product with tray packaging, whereas the FN3258-30-47 is obsolete with different packaging specifications.

Parameter Comparison

Engineering Selection Recommendations

The FN3258-30-33 is the direct functional equivalent for the obsolete FN3258-30-47. Both parts maintain identical electrical specifications, mechanical mounting characteristics, and regulatory certifications. The FN3258-30-33 carries active product status with current manufacturing support and inventory availability (965 units in stock). The upgrade to ROHS3 compliance on the FN3258-30-33 represents an enhancement in environmental regulatory adherence. For new designs or replacement procurement, the FN3258-30-33 is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Can the FN3258-30-33 directly replace the FN3258-30-47 in existing installations?

A: Yes. Both parts share identical electrical ratings (30 A, 277 V phase-to-ground, 480 V phase-to-phase), filter configuration (three-phase delta, single stage), mounting type (chassis mount), and termination style (terminal block). The operating temperature range and frequency specifications are also identical.

Q: What is the difference between the FN3258-30-47 and FN3258-30-33?

A: The primary differences are product status and packaging. The FN3258-30-47 is obsolete, while the FN3258-30-33 is an active product supplied in tray packaging. The FN3258-30-33 also carries ROHS3 compliance versus RoHS compliance on the FN3258-30-47.

Q: Are the regulatory certifications identical between these parts?

A: Yes. Both parts carry CSA, ENEC, and UR approvals, meeting the same regulatory requirements for EMC/EMI line filtering applications.

Q: What packaging format is used for the FN3258-30-33?

A: The FN3258-30-33 is supplied in tray packaging, which differs from the original FN3258-30-47 packaging specification.

Q: Is the FN3258-30-33 currently available?

A: Yes. The FN3258-30-33 is an active product with 965 units in stock as new original inventory.
