FN3258-16-45 Equivalent & Substitute Parts

Part Overview

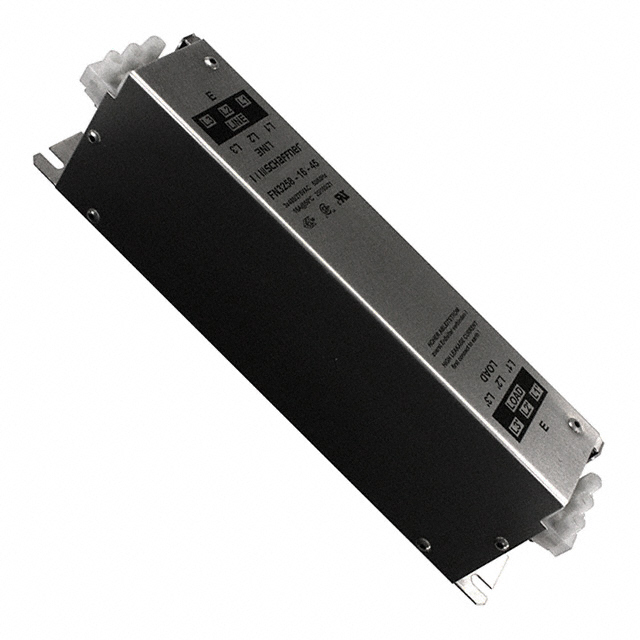

The FN3258-16-45 is a three-phase delta EMC/EMI line filter rated for 16 A with chassis mount configuration and terminal block termination. This component is classified as obsolete, making substitute parts necessary for ongoing procurement and system maintenance. The filter operates across DC to 60 Hz frequency range and meets international safety and electromagnetic compatibility standards.

Substiute Parts

FN3258-16-45

Schaffner EMC Inc.In Stock: 905FN3258-16-45 Datasheet

Current PartRFQ

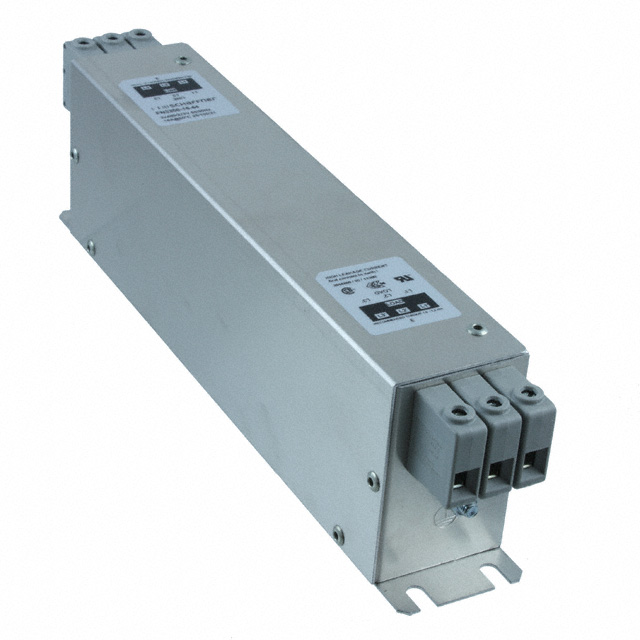

FN3258-16-44

Schaffner EMC Inc.In Stock: 1114FN3258-16-44 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FN3258-16-45 is determined by the following critical parameters:

• Filter Type: Three Phase (Delta) configuration
• Current Rating: 16 A
• Voltage Rating: 277 V AC (phase to ground/neutral) and 480 V AC (phase to phase)
• Frequency Range: DC ~ 60 Hz operation
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Operating Temperature Range: -25°C ~ 100°C
• Approval Certifications: CSA, ENEC, UR compliance

The FN3258-16-44 meets all these critical parameters and belongs to the same FN 3258 series, establishing it as a direct substitute. The primary distinction is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The FN3258-16-44 is the direct substitute for the obsolete FN3258-16-45. Both components maintain identical electrical and mechanical specifications across all critical parameters: three-phase delta configuration, 16 A current rating, 277 V phase-to-ground and 480 V phase-to-phase voltage ratings, and DC to 60 Hz frequency operation.

The FN3258-16-44 carries active product status, ensuring ongoing availability and manufacturer support. Both parts hold equivalent international certifications (CSA, ENEC, UR) and meet RoHS compliance requirements. The FN3258-16-44 achieves ROHS3 compliance, representing an enhanced compliance level compared to the standard RoHS designation of the original part.

Packaging differs between the two parts: the FN3258-16-45 uses standard packaging while the FN3258-16-44 is supplied in tray packaging. This distinction affects procurement and handling procedures but does not impact functional or electrical performance.

Frequently Asked Questions (FAQ)

Q: Can the FN3258-16-44 directly replace the FN3258-16-45 in existing applications?

A: Yes. Both parts share identical electrical ratings (16 A, 277 V phase-to-ground, 480 V phase-to-phase), frequency range (DC ~ 60 Hz), filter configuration (three-phase delta, single stage), mounting type (chassis mount), and termination style (terminal block). Operating temperature range and approval certifications are also equivalent.

Q: What is the significance of the product status difference?

A: The FN3258-16-45 is classified as obsolete, indicating discontinued manufacturing and limited availability. The FN3258-16-44 maintains active status, ensuring continued production, technical support, and reliable procurement channels.

Q: Does packaging affect compatibility?

A: Packaging differences (standard versus tray) do not affect electrical or mechanical compatibility. Packaging selection depends on procurement requirements, storage conditions, and handling procedures specific to your supply chain.

Q: Are the RoHS compliance levels equivalent?

A: Both parts meet RoHS requirements. The FN3258-16-44 achieves ROHS3 compliance, which represents an enhanced compliance standard. This upgrade does not impact functional performance but indicates improved environmental and regulatory alignment.

Q: What certifications apply to both parts?

A: Both the FN3258-16-45 and FN3258-16-44 hold approval from CSA, ENEC, and UR agencies, ensuring compliance with North American, European, and international safety standards for EMC/EMI line filters.
