FN2410H-45-33 Equivalent & Substitute Parts

Part Overview

The FN2410H-45-33 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 45 A at 520V/300VAC with DC to 400Hz operating frequency. This component is classified as obsolete, necessitating identification of active equivalent models to maintain system functionality and ensure continued availability for new designs and field replacements.

Substiute Parts

FN2410H-45-33

Schaffner EMC Inc.In Stock: 752FN2410H-45-33 Datasheet

Current PartRFQ

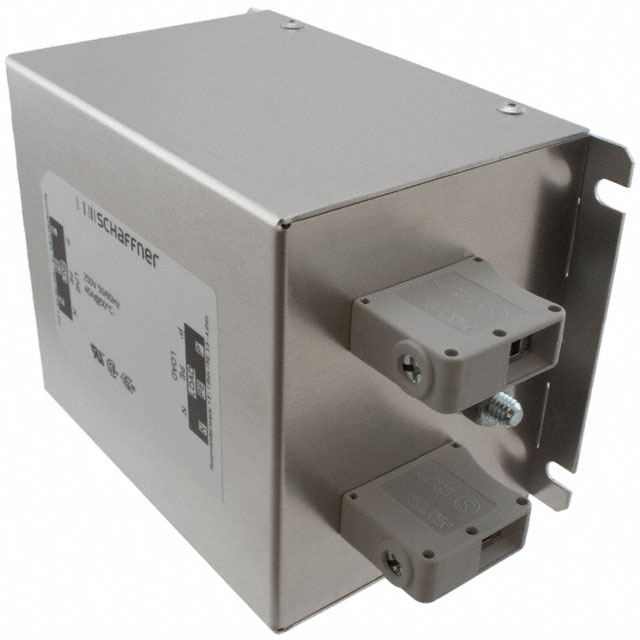

FN2410-45-33

Schaffner EMC Inc.In Stock: 774FN2410-45-33 Datasheet

SimilarRFQ

FN2410H-60-34

Schaffner EMC Inc.In Stock: 909FN2410H-60-34 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FN2410H-45-33 is determined by the following critical parameters:

Primary Substitution Criteria:

• Series: FN 2410 (same product family)
• Filter Type: Single Phase
• Configuration: Single Stage
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Operating Temperature Range: -25°C ~ 100°C
• Approval Agencies: CSA, ENEC, UR

Electrical Compatibility Parameters:

• Voltage Rating: 520V/300VAC (must support both voltage levels)
• Current Rating: 45 A minimum
• Frequency Range: DC ~ 400Hz minimum

Two substitute parts meet these criteria and are classified as active products within the FN 2410 series.

Parameter Comparison

Engineering Selection Recommendations

FN2410-45-33: This substitute maintains identical current rating (45 A) and frequency range (DC ~ 400Hz) as the main part. However, the voltage rating is limited to 250VAC, which does not support the 520V/300VAC requirement of the FN2410H-45-33. This part is suitable only for applications operating at 250VAC. Product status is active with ROHS3 compliance.

FN2410H-60-34: This substitute supports the same dual voltage rating (520V/300VAC) and maintains all mechanical and thermal specifications. The current rating is increased to 60 A, providing headroom above the 45 A requirement. The operating frequency is specified as 250Hz, which is narrower than the DC ~ 400Hz range of the main part. Product status is active with ROHS3 compliance and full certification alignment (CSA, ENEC, UR).

For direct functional replacement of the FN2410H-45-33 in 520V/300VAC applications, the FN2410H-60-34 is the appropriate selection. The FN2410-45-33 is limited to 250VAC systems only.

Frequently Asked Questions (FAQ)

Q: Can FN2410-45-33 replace FN2410H-45-33 in all applications?

A: No. The FN2410-45-33 is rated for 250VAC only, while the FN2410H-45-33 operates at 520V/300VAC. Substitution is valid only for applications using 250VAC supply voltage.

Q: What is the difference between FN2410H-60-34 and FN2410H-45-33?

A: The FN2410H-60-34 has a higher current rating (60 A vs. 45 A) and a narrower frequency range (250Hz vs. DC ~ 400Hz). Both support 520V/300VAC operation. The increased current capacity provides margin for the same or higher load applications.

Q: Are all three parts mechanically compatible?

A: Yes. All three parts share identical mounting type (chassis mount), termination style (terminal block), and operating temperature range (-25°C ~ 100°C), ensuring mechanical interchangeability in the same installation footprint.

Q: What is the product status significance?

A: The FN2410H-45-33 is obsolete, meaning it is no longer manufactured. The FN2410-45-33 and FN2410H-60-34 are active products with current manufacturing and availability.

Q: Do all parts meet the same compliance standards?

A: Yes. All three parts carry CSA, ENEC, and UR approvals. The main part is RoHS Compliant, while both substitutes are ROHS3 Compliant, representing an updated compliance standard.

Q: Which substitute should be selected for a 520V/300VAC application?

A: The FN2410H-60-34 is the appropriate selection, as it maintains the required dual voltage rating and all mechanical specifications of the original part.
