FN2320Y-6-06 Equivalent & Substitute Parts

Part Overview

The FN2320Y-6-06 is a single phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 6A with DC to 400Hz operating frequency range. This chassis mount filter features a two-stage configuration with quick connect termination and is designed for general purpose applications. The product is currently obsolete, making identification of suitable substitute components essential for system maintenance, repair, and redesign applications.

Substiute Parts

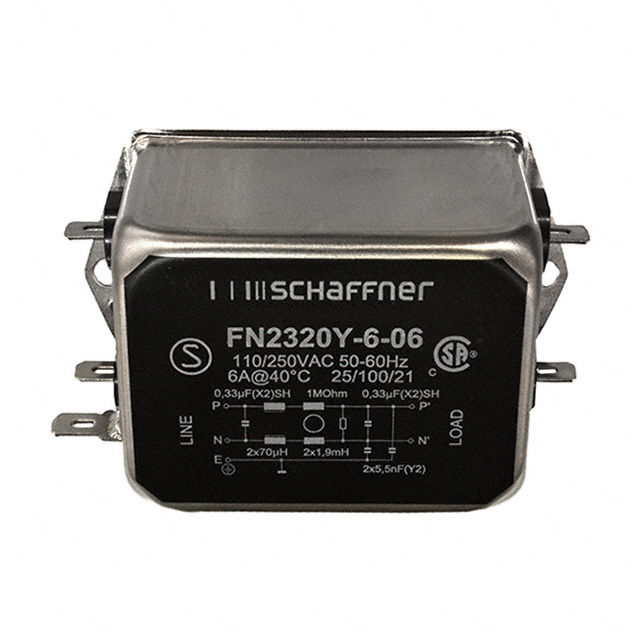

FN2320Y-6-06

Schaffner EMC Inc.In Stock: 1007FN2320Y-6-06 Datasheet

Current PartRFQ

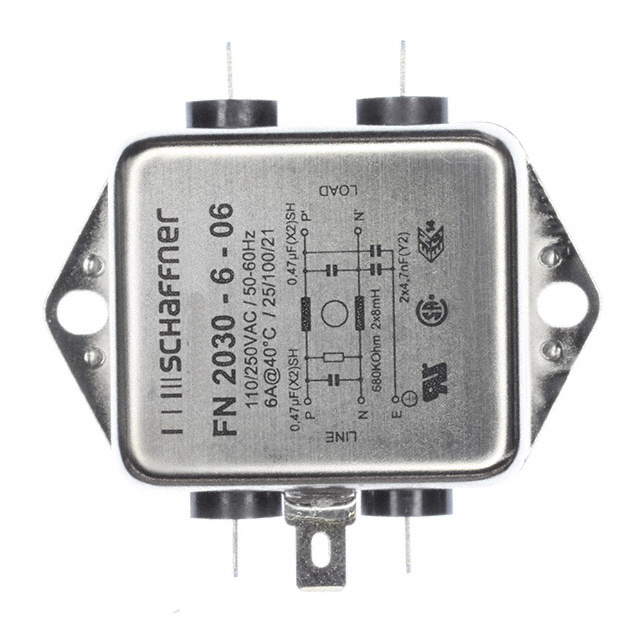

FN2030-6-06

Schaffner EMC Inc.In Stock: 1658FN2030-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN2320Y-6-06 is determined by the following critical parameters that must remain constant or compatible:

• Voltage Rating: 250VAC (exact match required)
• Current Rating: 6A (exact match required)
• Frequency Range: DC ~ 400Hz (must support full range)
• Filter Type: Single Phase (exact match required)
• Mounting Type: Chassis Mount (exact match required)
• Termination Style: Quick Connect (exact match required)
• Operating Temperature Range: -25°C ~ 100°C (minimum requirement)
• Approval Agencies: CSA, SEMKO certifications

The FN2030-6-06 qualifies as a substitute based on matching voltage, current, frequency, filter type, mounting, and termination specifications. The primary difference is configuration: the FN2030-6-06 uses a single stage design versus the two-stage design of the FN2320Y-6-06. This configuration difference does not prevent substitution when electrical and mechanical parameters align.

Parameter Comparison

Engineering Selection Recommendations

The FN2030-6-06 is an active product substitute for the obsolete FN2320Y-6-06. Both components share identical electrical ratings (250VAC, 6A, DC ~ 400Hz) and mechanical specifications (chassis mount, quick connect termination). The FN2030-6-06 carries current regulatory compliance including ROHS3 and maintains CSA and ENEC certifications, providing enhanced availability and compliance assurance compared to the obsolete main part.

The inductance difference (1.9mH versus 8mH) and configuration difference (two-stage versus single-stage) reflect design variations within the same product family. Selection between these parts should be based on specific EMI/EMI filtering requirements and circuit design parameters of the target application.

Frequently Asked Questions (FAQ)

Q: Can the FN2030-6-06 directly replace the FN2320Y-6-06 in existing designs?

A: The FN2030-6-06 matches all critical electrical and mechanical parameters: 250VAC rating, 6A current capacity, DC to 400Hz frequency range, chassis mount configuration, and quick connect termination. Physical fit and electrical compatibility are maintained. The single-stage versus two-stage configuration difference should be evaluated against specific EMI filtering requirements of the application.

Q: What is the significance of the inductance difference between these parts?

A: The FN2320Y-6-06 has 1.9mH inductance while the FN2030-6-06 has 8mH inductance. This difference reflects the two-stage versus single-stage filter design. Inductance affects filtering characteristics and impedance behavior. Application-specific EMI performance requirements determine whether this difference is acceptable for substitution.

Q: Are there packaging differences between these parts?

A: The FN2320Y-6-06 is packaged in standard format, while the FN2030-6-06 is supplied in Tray packaging. Both use quick connect termination and chassis mount configuration. Packaging format does not affect electrical or mechanical compatibility.

Q: What compliance certifications apply to the substitute part?

A: The FN2030-6-06 holds CSA, ENEC, and UR approvals with ROHS3 compliance and REACH unaffected status. The original FN2320Y-6-06 held CSA and SEMKO approvals. The substitute provides current regulatory compliance suitable for modern applications.

Q: Why is the FN2320Y-6-06 listed as obsolete?

A: Product obsolescence indicates the part is no longer manufactured. The FN2030-6-06, as an active product from the same manufacturer with matching specifications, serves as the current production equivalent for applications requiring 250VAC, 6A single phase EMC/EMI line filtering with chassis mount configuration.
