FN2310X-6-06 Equivalent & Substitute Parts

Part Overview

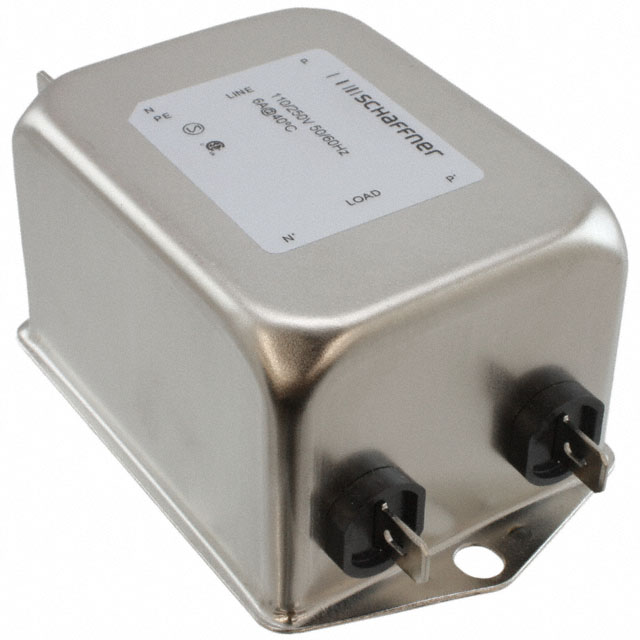

The FN2310X-6-06 is a single-phase EMC/EMI line filter manufactured by Schaffner EMC Inc., rated for 250VAC at 6A with DC to 400Hz operating frequency. This chassis-mount filter features quick-connect termination and single-stage configuration. The product is currently obsolete, making identification of suitable substitute components essential for system maintenance, repair, and redesign applications where continued availability is required.

Substiute Parts

FN2310X-6-06

Schaffner EMC Inc.In Stock: 945FN2310X-6-06 Datasheet

Current PartRFQ

FN2090-6-06

Schaffner EMC Inc.In Stock: 1121FN2090-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN2310X-6-06 is determined by the following critical parameters:

• Current Rating: 6A (must match or exceed)
• Voltage Rating: 250VAC (must support)
• Operating Frequency: DC ~ 400Hz (must support)
• Mounting Type: Chassis Mount (physical compatibility)
• Termination Style: Quick Connect (interface compatibility)
• Filter Type: Single Phase (functional requirement)

The FN2090-6-06 qualifies as a substitute because it maintains the same current rating (6A), supports the required voltage range (110V/250VAC includes 250V), operates across the same frequency spectrum (DC ~ 400Hz), uses identical mounting and termination methods, and is a single-phase filter. The FN2090-6-06 is currently active in production, addressing the obsolescence of the FN2310X-6-06.

Parameter Comparison

Engineering Selection Recommendations

The FN2090-6-06 is the designated substitute for the obsolete FN2310X-6-06. Both components are manufactured by Schaffner EMC Inc. and share identical current, voltage, frequency, mounting, and termination specifications. The FN2090-6-06 is currently in active production status, ensuring availability for new designs and replacement applications.

The FN2090-6-06 provides broader regulatory compliance with CE, CSA, ENEC, and UR certifications compared to the FN2310X-6-06 (CSA, SEMKO). Both components maintain RoHS compliance. The FN2090-6-06 operates across a slightly reduced temperature range (-20°C to 100°C versus -25°C to 100°C), which is acceptable for most general-purpose applications.

The FN2090-6-06 features two-stage configuration with 8mH inductance, compared to the single-stage 19.3mH design of the FN2310X-6-06. This configuration difference does not prevent substitution when the electrical parameters (voltage, current, frequency) and physical interface (mounting, termination) are compatible.

Frequently Asked Questions (FAQ)

Q: Can the FN2090-6-06 directly replace the FN2310X-6-06 in existing installations?

A: Yes. Both components share identical current (6A), voltage (250VAC), frequency (DC ~ 400Hz), mounting type (chassis mount), and termination style (quick connect) specifications. Physical and electrical compatibility is maintained.

Q: What is the difference between single-stage and two-stage filter configurations?

A: The FN2310X-6-06 uses single-stage filtering with 19.3mH inductance, while the FN2090-6-06 uses two-stage filtering with 8mH inductance. Both configurations meet the electrical requirements for 6A, 250VAC operation across DC to 400Hz frequency range. Configuration differences do not affect substitution eligibility when core electrical parameters match.

Q: Are there temperature range considerations for substitution?

A: The FN2310X-6-06 operates from -25°C to 100°C, while the FN2090-6-06 operates from -20°C to 100°C. For applications requiring operation below -20°C, the FN2310X-6-06 specifications must be verified. For standard industrial applications within -20°C to 100°C, the FN2090-6-06 is suitable.

Q: What packaging is available for the substitute part?

A: The FN2090-6-06 is supplied in tray packaging. Verify packaging requirements for your procurement and assembly processes.

Q: How do the regulatory certifications compare?

A: The FN2090-6-06 holds CE, CSA, ENEC, and UR certifications, providing broader regulatory coverage than the FN2310X-6-06 (CSA, SEMKO). Both maintain RoHS compliance. Verify that the FN2090-6-06 certifications meet your application requirements.
