FLV110 Equivalent & Substitute Parts Reference

Part Overview

The FLV110 is a red diffused LED indicator manufactured by Everlight Electronics Co Ltd, designed for through-hole mounting applications. This T-1 3/4 (5mm) lens package LED operates at a forward voltage of 1.6V with a test current of 10mA, delivering 3mcd luminous intensity at a 70° viewing angle. The component is classified as Active product status with full RoHS3 compliance and unlimited moisture sensitivity rating.

Substitute parts are identified to address application requirements including alternative voltage ratings, luminous intensity levels, and specific circuit integration needs while maintaining compatibility with the T-1 3/4 through-hole mounting standard.

Key Parameters

Parameter	FLV110 Specification
Manufacturer	Everlight Electronics Co Ltd
Color	Red
Lens Transparency	Diffused
Lens Size	5mm, T-1 3/4
Voltage - Forward (Vf) Typical	1.6V
Current - Test	10mA
Millicandela Rating	3mcd
Viewing Angle	70°
Wavelength - Peak	660nm
Mounting Type	Through Hole
Package / Case	Radial
Height (Max)	7.49mm
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the FLV110 are grouped based on the following compatibility criteria:

Primary Substitution Parameters:

Lens color: Red
Lens transparency: Diffused
Mounting type: Through Hole
Package type: Radial T-1 3/4 (5mm)
RoHS3 compliance requirement
MSL rating: 1 (Unlimited)

Secondary Variation Parameters:

Forward voltage (Vf): 1.6V to 12V range
Test current: 2mA to 13mA
Millicandela rating: 2mcd to 8mcd
Viewing angle: 50° to 70°
Wavelength peak: 635nm to 660nm
Physical height: 7.49mm to 10.95mm

Substitutes are valid when the application circuit can accommodate the specified forward voltage and test current of the alternative part while maintaining the through-hole radial package configuration and diffused red lens characteristics.

Parameter Comparison

Part Number	Manufacturer	Vf (Typ)	Current - Test	mcd Rating	Viewing Angle	Wavelength Peak	Height (Max)	Product Status
FLV110	Everlight Electronics	1.6V	10mA	3mcd	70°	660nm	7.49mm	Active
4302H1-5V	Visual Communications Company - VCC	5V	10mA	8mcd	60°	635nm	10.08mm	Active
4302H1-12V	Visual Communications Company - VCC	12V	13mA	8mcd	60°	635nm	10.08mm	Active

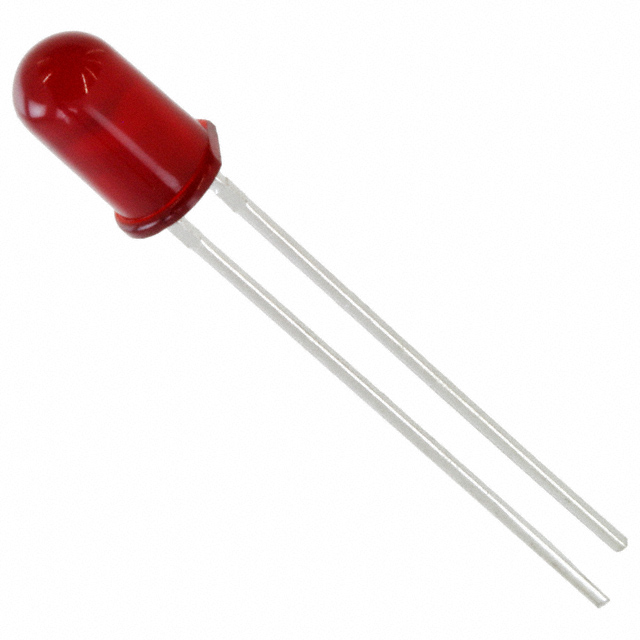

5219183F	Dialight	7.5V	10mA	8mcd	60°	635nm	10.95mm	Active

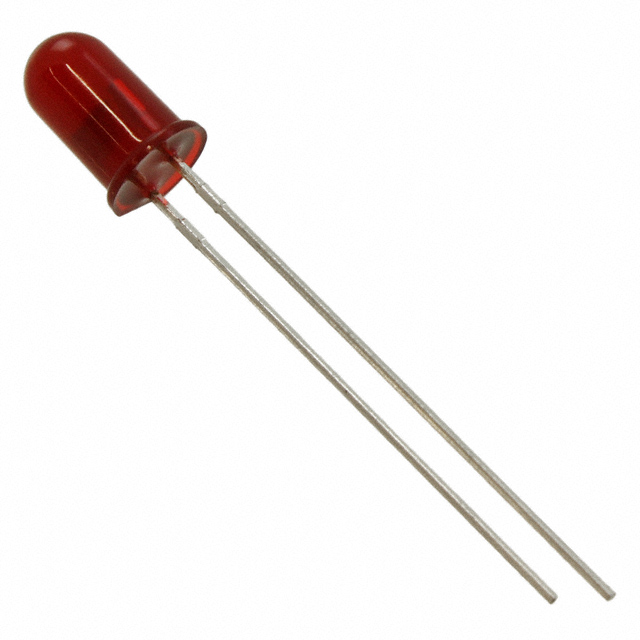

5219246F	Dialight	2.2V	10mA	7mcd	60°	635nm	9.66mm	Active
5219320F	Dialight	1.8V	2mA	2mcd	50°	635nm	9.57mm	Active
HLMP-D150	onsemi	-	-	-	-	-	-	Obsolete

Engineering Selection Recommendations

Active Status Parts: All substitute parts except HLMP-D150 maintain Active product status, ensuring continued availability and manufacturing support. Selection among active substitutes depends on circuit voltage requirements and luminous intensity specifications.

Voltage-Matched Substitutes:

5219246F (2.2V): Closest voltage match to FLV110 (1.6V), suitable for low-voltage applications with 10mA test current compatibility
5219320F (1.8V): Voltage-compatible alternative with reduced current requirement (2mA), appropriate for current-limited circuit designs
4302H1-5V (5V): Standard logic-level voltage substitute with increased luminous intensity (8mcd)
5219183F (7.5V): Mid-range voltage option for 7.5V circuit integration
4302H1-12V (12V): High-voltage industrial applications with 13mA current specification

Compliance Considerations: All active substitute parts maintain RoHS3 compliance and MSL 1 (Unlimited) rating, matching the FLV110 environmental and regulatory requirements. HLMP-D150 is classified as Obsolete and is not recommended for new designs.

Physical Integration: FLV110 offers the lowest profile height (7.49mm) among substitutes. Alternative parts range from 9.57mm to 10.95mm maximum height. PCB layout and enclosure clearance must accommodate the selected substitute's physical dimensions.

Frequently Asked Questions (FAQ)

Q: Can 4302H1-5V directly replace FLV110 in a 1.6V circuit?

A: No. The 4302H1-5V requires 5V forward voltage operation, which is incompatible with 1.6V circuits. Circuit redesign with appropriate current-limiting resistor calculation is required for voltage conversion.

Q: What is the primary difference between 5219246F and 5219320F?

A: Both are Dialight 521 series parts with similar voltage ratings (2.2V vs 1.8V). The 5219320F operates at reduced test current (2mA vs 10mA) and delivers lower luminous intensity (2mcd vs 7mcd). Selection depends on brightness requirements and available circuit current capacity.

Q: Are all substitute parts compatible with the same PCB footprint as FLV110?

A: All substitute parts use through-hole radial T-1 3/4 (5mm) mounting packages with compatible lead spacing. However, physical height variations (7.49mm to 10.95mm) may affect enclosure fit and component clearance. Verify mechanical constraints before substitution.

Q: Why is HLMP-D150 listed if it is Obsolete?

A: HLMP-D150 is included in the reference data as a historical substitute record. Obsolete status indicates discontinued manufacturing and unavailable inventory. This part is not recommended for new designs or replacements.

Q: What viewing angle differences exist among substitutes?

A: FLV110 provides 70° viewing angle. Most substitutes (4302H1 series and 5219183F) offer 60° viewing angle. 5219320F provides 50° viewing angle. Narrower viewing angles concentrate luminous intensity in a smaller cone, affecting visibility from off-axis positions.

Q: Can I use 4302H1-12V in a 5V application?

A: No. The 4302H1-12V is specified for 12V operation. Using it in a 5V circuit will result in insufficient forward voltage and non-functional LED operation. Use 4302H1-5V for 5V applications.

Q: What is the wavelength difference between FLV110 and Dialight substitutes?

A: FLV110 operates at 660nm peak wavelength (deep red). Dialight 521 series substitutes (5219246F, 5219320F, 5219183F) operate at 635nm peak wavelength (standard red). Both are red LEDs; the wavelength difference affects perceived color tone and spectral response in optical sensing applications.
