FI-X30SSL-HF-R2500 Equivalent & Substitute Parts

Part Overview

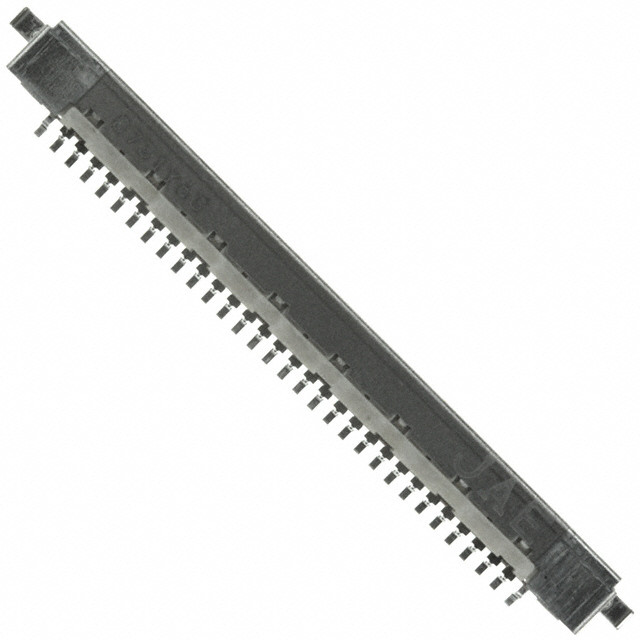

The FI-X30SSL-HF-R2500 is a 30-position receptacle connector manufactured by JAE Electronics, designed for surface mount, right-angle board-to-cable/wire applications. This connector features a 0.039" (1.00mm) pitch with gold-plated mating contacts and tin-plated posts, operating across -40°C to 80°C with a 1A per contact current rating at 200V.

The FI-X30SSL-HF-R2500 carries an obsolete product status. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications currently utilizing this connector.

Substiute Parts

FI-X30SSL-HF-R2500

JAE ElectronicsIn Stock: 4548FI-X30SSL-HF-R2500 Datasheet

Current PartRFQ

FI-X30SSLA-HF-R2500

JAE ElectronicsIn Stock: 18677FI-X30SSLA-HF-R2500 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FI-X30SSL-HF-R2500 is determined by strict alignment across the following critical parameters:

• Connector type (Receptacle)
• Number of positions (30)
• Pitch specification (0.039" / 1.00mm)
• Mounting configuration (Surface Mount, Right Angle)
• Contact finish specifications (Gold mating, Tin post)
• Electrical ratings (1A per contact, 200V)
• Operating temperature range (-40°C ~ 80°C)
• Flammability compliance (UL94 V-0)
• Series designation (FI-X)

Parts meeting all these criteria are classified as direct functional equivalents and may be substituted without design modification.

Parameter Comparison

Engineering Selection Recommendations

The FI-X30SSLA-HF-R2500 is a direct functional equivalent to the FI-X30SSL-HF-R2500. Both parts share identical electrical, mechanical, and thermal specifications within the FI-X series.

The primary distinction is product status: the FI-X30SSL-HF-R2500 is obsolete, while the FI-X30SSLA-HF-R2500 maintains active status. The FI-X30SSLA-HF-R2500 is supplied in Tape & Reel packaging, whereas the original part is supplied in bulk format.

For new designs or production continuity, the FI-X30SSLA-HF-R2500 is the appropriate selection. Both parts comply with UL94 V-0 flammability requirements and REACH regulations. The FI-X30SSLA-HF-R2500 additionally carries RoHS3 compliance certification.

Frequently Asked Questions (FAQ)

Q: Can the FI-X30SSLA-HF-R2500 directly replace the FI-X30SSL-HF-R2500 in existing designs?

A: Yes. Both connectors are mechanically and electrically identical across all specified parameters. No design modification is required for substitution.

Q: What is the difference between the two part numbers?

A: The primary differences are product status and packaging format. The FI-X30SSL-HF-R2500 is obsolete and supplied in bulk; the FI-X30SSLA-HF-R2500 is active and supplied in Tape & Reel format. Electrical and mechanical specifications are identical.

Q: Does packaging format affect connector performance?

A: No. Tape & Reel packaging is a supply and handling format only. It does not alter connector electrical performance, mechanical fit, or thermal characteristics.

Q: Are there compliance differences between these parts?

A: The FI-X30SSLA-HF-R2500 includes RoHS3 compliance certification in addition to the shared UL94 V-0 and REACH compliance. Both parts meet the same electrical and thermal standards.

Q: What inventory considerations apply to these parts?

A: The FI-X30SSL-HF-R2500 has 4,519 pieces in stock (obsolete status). The FI-X30SSLA-HF-R2500 has 18,625 pieces in stock (active status), providing greater supply availability for ongoing production requirements.
