FGRMS22-24 Equivalent & Substitute Parts

Part Overview

The FGRMS22-24 is a 24VDC industrial relay manufactured by Omron Automation and Safety, configured as a 4PST relay with 2 Form A and 2 Form B contacts rated for 6A switching capacity. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain system functionality and ensure continued availability for new installations and field replacements.

Key Parameters

Parameter	Value
Coil Voltage	24VDC
Contact Form	4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Rating (Current)	6 A
Switching Voltage	250VAC, 125VDC - Max
Coil Current	15 mA
Coil Resistance	1.6 kOhms
Operating Temperature Range	-40°C ~ 85°C
Release Time	10 ms
Termination Style	Screw Terminal
Mounting Type	DIN Rail
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitute parts for the FGRMS22-24 are identified based on strict electrical and mechanical compatibility criteria. The primary substitution logic is based on the following parameters:

Critical Matching Parameters:

Coil voltage: 24VDC
Contact configuration: 4PST with 2NO/2NC arrangement
Contact current rating: 6A minimum
Switching voltage capability: 250VAC, 125VDC minimum
Coil current: 15 mA
Coil resistance: 1.6 kOhms
Operating temperature range: -40°C to 85°C minimum
Release time: 10 ms maximum

G7SA-2A2B-DC24 qualifies as a direct functional equivalent relay, matching all critical electrical parameters and contact specifications. This part is active and available, providing a direct replacement for the obsolete FGRMS22-24.

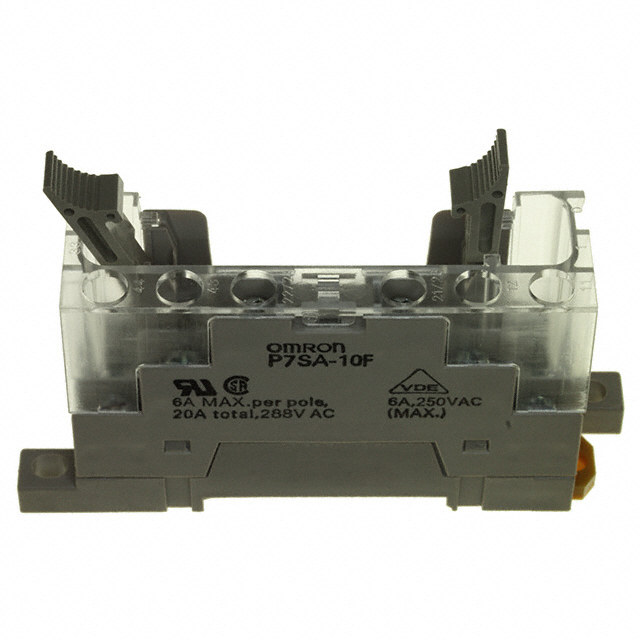

P7SA-10F is a relay socket accessory designed for G7SA series relays on DIN rail mounting. This component supports the mechanical installation of G7SA relays in systems originally configured for FGRMS22-24 relays, enabling modular replacement strategies.

Parameter Comparison

Parameter	FGRMS22-24	G7SA-2A2B-DC24	P7SA-10F
Coil Voltage	24VDC	24VDC	N/A
Contact Form	4PST-2NO/2NC	4PST-2NO/2NC	N/A
Contact Rating (Current)	6 A	6 A	N/A
Switching Voltage	250VAC, 125VDC - Max	250VAC, 125VDC - Max	N/A
Coil Current	15 mA	15 mA	N/A
Coil Resistance	1.6 kOhms	1.6 kOhms	N/A
Operating Temperature Range	-40°C ~ 85°C	-40°C ~ 85°C	N/A
Release Time	10 ms	10 ms	N/A
Mounting Type	DIN Rail	Socketable, Through Hole	DIN Rail
Termination Style	Screw Terminal	PC Pin, Plug In	Screw Terminal
Product Status	Obsolete	Active	Active
RoHS Status	Not Specified	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

G7SA-2A2B-DC24 is the primary direct substitute for FGRMS22-24. This relay maintains electrical equivalence across all critical parameters including coil voltage, contact configuration, current rating, and switching voltage specifications. The G7SA-2A2B-DC24 is active and ROHS3 compliant, providing regulatory compliance advantages over the obsolete FGRMS22-24. The transition from screw terminal to PC pin termination requires circuit board or connector adaptation during implementation.

P7SA-10F serves as a supporting component for G7SA series relay integration in DIN rail environments. This socket accommodates G7SA relays and maintains screw terminal connectivity, facilitating mechanical compatibility with existing DIN rail installations. The P7SA-10F is active and ROHS3 compliant.

Selection between direct relay substitution (G7SA-2A2B-DC24) and socket-based integration (G7SA-2A2B-DC24 with P7SA-10F) depends on existing circuit architecture and termination requirements.

Frequently Asked Questions (FAQ)

Q: Can G7SA-2A2B-DC24 directly replace FGRMS22-24 in all applications?

A: G7SA-2A2B-DC24 matches all electrical specifications of FGRMS22-24, including coil voltage, contact configuration, current rating, and switching voltage. However, termination style differs: FGRMS22-24 uses screw terminals while G7SA-2A2B-DC24 uses PC pins. Circuit board or connector modifications are required for direct substitution.

Q: What is the purpose of P7SA-10F in relation to FGRMS22-24 replacement?

A: P7SA-10F is a DIN rail socket designed for G7SA series relays. It enables mechanical mounting of G7SA-2A2B-DC24 relays on DIN rail and provides screw terminal connectivity, supporting integration strategies where direct board-level replacement is not feasible.

Q: Are both substitute parts ROHS3 compliant?

A: Yes. Both G7SA-2A2B-DC24 and P7SA-10F are ROHS3 compliant, providing regulatory compliance advantages over the obsolete FGRMS22-24.

Q: What are the key electrical parameters that determine substitution compatibility?

A: Substitution compatibility is determined by coil voltage (24VDC), contact form (4PST-2NO/2NC), contact current rating (6A), switching voltage (250VAC, 125VDC maximum), coil current (15 mA), coil resistance (1.6 kOhms), and operating temperature range (-40°C to 85°C).

Q: Does G7SA-2A2B-DC24 maintain the same release time as FGRMS22-24?

A: Yes. Both parts specify a 10 ms release time, ensuring equivalent switching response characteristics.
