FFH60UP40S Equivalent & Substitute Parts

Part Overview

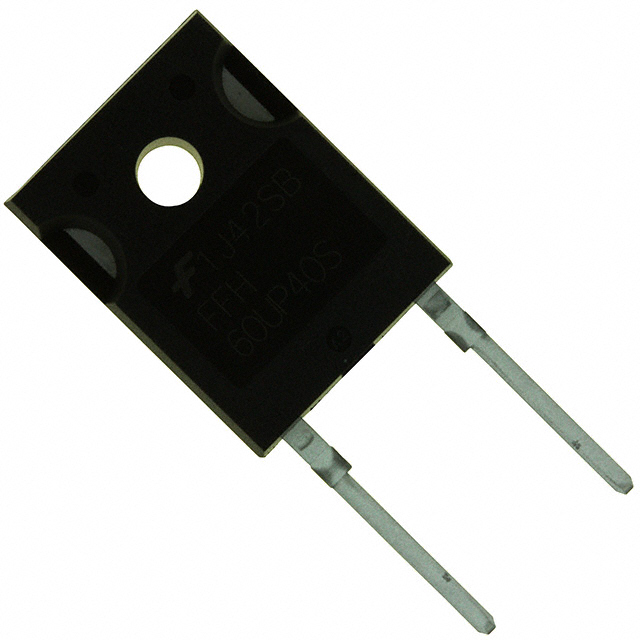

The FFH60UP40S is an onsemi general-purpose rectifier diode rated for 400 V DC reverse voltage and 60 A average rectified current in a Through Hole TO-247-2 package. This component is classified as Active product status and is RoHS3 compliant. Equivalent and substitute parts are identified when design requirements necessitate alternative sourcing, inventory management, or when specific performance characteristics align with application needs while maintaining electrical and mechanical compatibility.

Substiute Parts

FFH60UP40S

onsemiIn Stock: 1398FFH60UP40S Datasheet

Current PartRFQ

DPG60I400HA

IXYSIn Stock: 1523DPG60I400HA Datasheet

SimilarRFQ

VS-60EPU04-N3

Vishay General Semiconductor - Diodes DivisionIn Stock: 2635VS-60EPU04-N3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the FFH60UP40S are qualified based on the following electrical and mechanical parameters:

Primary Substitution Criteria:

• Voltage - DC Reverse (Vr) (Max): 400 V
• Current - Average Rectified (Io): 60 A
• Mounting Type: Through Hole
• Package / Case: TO-247-2 or compatible variant
• Speed Classification: Fast Recovery ≤ 500ns, > 200mA (Io)
• RoHS3 Compliance

Identified Substitute Parts:

1. DPG60I400HA (IXYS) – Meets all primary substitution criteria with identical voltage and current ratings, Through Hole TO-247-2 mounting, and RoHS3 compliance.

2. VS-60EPU04-N3 (Vishay General Semiconductor - Diodes Division) – Meets all primary substitution criteria with identical voltage and current ratings, Through Hole TO-247AC Modified mounting, and RoHS3 compliance.

Parameter Comparison

Engineering Selection Recommendations

All three diodes maintain Active product status and RoHS3 compliance, qualifying them for equivalent substitution in applications requiring 400 V, 60 A general-purpose rectification with Through Hole TO-247-2 mounting.

FFH60UP40S (onsemi): Primary selection for applications with operating temperature requirements between -65°C and 150°C. Forward voltage drop of 1.3 V @ 60 A and reverse recovery time of 85 ns establish baseline performance characteristics.

DPG60I400HA (IXYS): Suitable for applications requiring extended operating temperature range (-55°C to 175°C) and superior reverse recovery performance (45 ns). Forward voltage drop of 1.47 V @ 60 A results in higher power dissipation compared to the primary part. Reverse leakage current of 1 µA @ 400 V indicates enhanced leakage characteristics.

VS-60EPU04-N3 (Vishay): Suitable for applications requiring extended operating temperature range (-55°C to 175°C). Forward voltage drop of 1.25 V @ 60 A is lower than the primary part, reducing power dissipation. Reverse recovery time of 85 ns matches the primary part. Reverse leakage current of 50 µA @ 400 V is intermediate between the primary and IXYS options.

Frequently Asked Questions (FAQ)

Q: Can DPG60I400HA replace FFH60UP40S in all applications?

A: DPG60I400HA meets the electrical and mechanical substitution criteria of 400 V, 60 A, Through Hole TO-247-2 mounting, and RoHS3 compliance. The forward voltage drop of 1.47 V @ 60 A is higher than the FFH60UP40S (1.3 V @ 60 A), resulting in increased power dissipation. Thermal design must account for this difference. The superior reverse recovery time of 45 ns provides improved switching performance.

Q: What is the difference between TO-247-2 and TO-247AC Modified packages?

A: Both packages are Through Hole mounting types with compatible mechanical footprints. The TO-247AC Modified designation for VS-60EPU04-N3 indicates a variant of the standard TO-247-2 package. Pin configuration and mounting hole spacing remain compatible for direct substitution.

Q: How do forward voltage drops affect circuit performance?

A: Forward voltage drop directly impacts power dissipation in the diode. FFH60UP40S at 1.3 V @ 60 A dissipates 78 W; DPG60I400HA at 1.47 V @ 60 A dissipates 88.2 W; VS-60EPU04-N3 at 1.25 V @ 60 A dissipates 75 W. Thermal management and heat sink design must accommodate the selected part's power dissipation characteristics.

Q: Are all three parts suitable for high-frequency switching applications?

A: All three parts are classified as Fast Recovery diodes with recovery times ≤ 500ns. DPG60I400HA offers the fastest recovery at 45 ns, while FFH60UP40S and VS-60EPU04-N3 both provide 85 ns recovery time. Selection depends on specific switching frequency requirements and circuit topology.

Q: What is the significance of reverse leakage current differences?

A: Reverse leakage current affects standby power consumption and thermal stability. DPG60I400HA exhibits 1 µA @ 400 V, VS-60EPU04-N3 exhibits 50 µA @ 400 V, and FFH60UP40S exhibits 100 µA @ 400 V. Lower leakage current reduces standby power dissipation and improves performance in high-impedance circuits.

Q: Can these parts be used interchangeably in existing PCB designs?

A: All three parts share Through Hole TO-247-2 package compatibility and identical electrical ratings of 400 V and 60 A. Direct PCB substitution is mechanically feasible. Thermal design review is necessary due to variations in forward voltage drop and reverse leakage current.

Q: What temperature range considerations apply to part selection?

A: FFH60UP40S operates from -65°C to 150°C. DPG60I400HA and VS-60EPU04-N3 both operate from -55°C to 175°C. Applications requiring operation below -55°C must use FFH60UP40S. Applications requiring operation above 150°C must use DPG60I400HA or VS-60EPU04-N3.
