FD-61G Equivalent & Substitute Parts

Part Overview

The FD-61G is a reflective optical sensor manufactured by Panasonic Industrial Automation Sales, part of the FX-500 series. This sensor features a 420mm (16.535") sensing distance and operates with a cable connection method, offering IP67 ingress protection. The FD-61G is classified as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

FD-61G

Panasonic Industrial Automation SalesIn Stock: 1119FD-61G Datasheet

Current PartRFQ

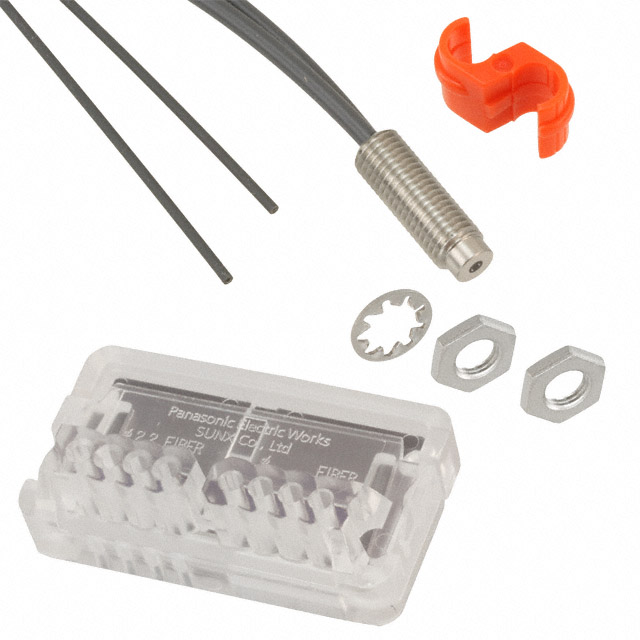

FD-61

Panasonic Industrial Automation SalesIn Stock: 710FD-61 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the FD-61G is based on the following critical parameters that determine functional compatibility:

• Sensing Method: Reflective operation must be maintained
• Series Compatibility: FX-500 series maintains consistent electrical and mechanical interfaces
• Connection Method: Cable-based connection required
• Cable Length: 2m standard length
• Sensing Distance Range: Acceptable variance within optical sensor specifications

The FD-61 (base model without the "G" designation) qualifies as a substitute based on these parameters. While the FD-61 offers an increased sensing distance of 450mm (17.717") compared to the FD-61G's 420mm, both sensors operate within the same FX-500 series architecture and share identical connection methodology and cable specifications.

Parameter Comparison

Engineering Selection Recommendations

The FD-61 serves as the active production equivalent for the obsolete FD-61G. Both components maintain identical mechanical and electrical interfaces within the FX-500 series. The FD-61 provides enhanced sensing distance capability (450mm versus 420mm), which represents a functional improvement for applications requiring extended detection range.

From a compliance perspective, the FD-61 meets current RoHS3 requirements, whereas the FD-61G meets legacy RoHS compliance standards. Both components carry MSL Level 1 ratings, indicating unlimited moisture sensitivity protection.

For new designs or system replacements, the FD-61 is the appropriate selection due to its active product status and current regulatory compliance. For legacy system maintenance where sensing distance is a critical constraint, the increased range of the FD-61 may require application-level validation.

Frequently Asked Questions (FAQ)

Q: Can the FD-61 directly replace the FD-61G in existing installations?

A: Yes. Both sensors share identical connection methodology, cable specifications, and series architecture. The primary difference is sensing distance: FD-61 provides 450mm range versus FD-61G's 420mm range. Applications with spatial constraints should account for this extended detection capability.

Q: What is the significance of the product status difference?

A: The FD-61G is classified as obsolete, indicating discontinued manufacturing and limited availability. The FD-61 maintains active production status, ensuring supply chain continuity and access to current manufacturing batches.

Q: Are there compliance differences between these parts?

A: Both components are RoHS compliant. The FD-61G meets RoHS standards, while the FD-61 meets the more recent ROHS3 specification. Both carry identical MSL Level 1 ratings for moisture sensitivity.

Q: Does the increased sensing distance of the FD-61 affect system performance?

A: The FD-61's 450mm sensing distance represents an extension of the FD-61G's 420mm capability. Applications designed for the shorter range will function with the FD-61; however, systems with precise distance-dependent logic should be reviewed for compatibility.

Q: What packaging options are available?

A: The FD-61 is supplied in Box packaging. Standard cable length for both components is 2m (78.74").
