FCE17E09SC2DB D-Sub 9 Position Receptacle Equivalent & Substitute Parts

Part Overview

The FCE17E09SC2DB is a 9 position D-Sub receptacle connector manufactured by Amphenol ICC (Commercial Products). This right-angle, through-hole solder termination connector features female sockets in a DE/E shell size configuration. The connector is classified as Active product status and is RoHS Compliant with UL94 V-0 flammability rating.

Substitute parts are identified when equivalent D-Sub receptacle connectors share the same core functional specifications: 9 positions, 2 rows, right-angle mounting, solder termination, DE/E shell size, and female socket configuration. Alternative sources become necessary for inventory availability, extended operating temperature ranges, enhanced current ratings, or specific flange feature requirements.

Substiute Parts

FCE17E09SC2DB

Amphenol ICC (Commercial Products)In Stock: 958FCE17E09SC2DB Datasheet

Current PartRFQ

5745988-6

TE Connectivity AMP ConnectorsIn Stock: 15755745988-6 Datasheet

SimilarRFQ

5747836-6

TE Connectivity AMP ConnectorsIn Stock: 11865747836-6 Datasheet

SimilarRFQ

626-009-262-032

Mercury United Electronics, Inc.In Stock: 846626-009-262-032 Datasheet

SimilarRFQ

626-009-662-032

Mercury United Electronics, Inc.In Stock: 923626-009-662-032 Datasheet

SimilarRFQ

747836-6

TE Connectivity AMP ConnectorsIn Stock: 1095747836-6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the FCE17E09SC2DB are qualified based on the following core parameters that must align with the main part:

Mandatory Matching Parameters:

• Connector Style: D-Sub
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 9
• Number of Rows: 2
• Shell Size, Connector Layout: 1 (DE, E)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Contact Finish: Gold
• Material Flammability Rating: UL94 V-0
• Moisture Sensitivity Level: 1 (Unlimited)

Allowable Variations in Substitute Parts:

• Shell Material Finish: Steel with Tin or Nickel plating
• Contact Finish Thickness: 15.0µin to 30.0µin or Flash
• Current Rating: 3A to 6A per contact
• Operating Temperature Range: Extended ranges acceptable (-55°C to 105°C)
• Flange Feature: Housing/Shell (Unthreaded), Housing/Shell (4-40), or Mating Side Female Screwlock (4-40)
• Dielectric Material: Thermoplastic or Polyester Thermoplastic variants
• Contact Material: Phosphor Bronze or Copper Alloy
• Voltage Rating: Presence or absence acceptable
• Backset Spacing: 0.584" to 0.590"

Five substitute parts meet these criteria across three manufacturers: TE Connectivity AMP Connectors (747836-6, 5747836-6, 5745988-6) and Mercury United Electronics, Inc. (626-009-262-032, 626-009-662-032).

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity AMP Connectors Series (747836-6, 5747836-6, 5745988-6):

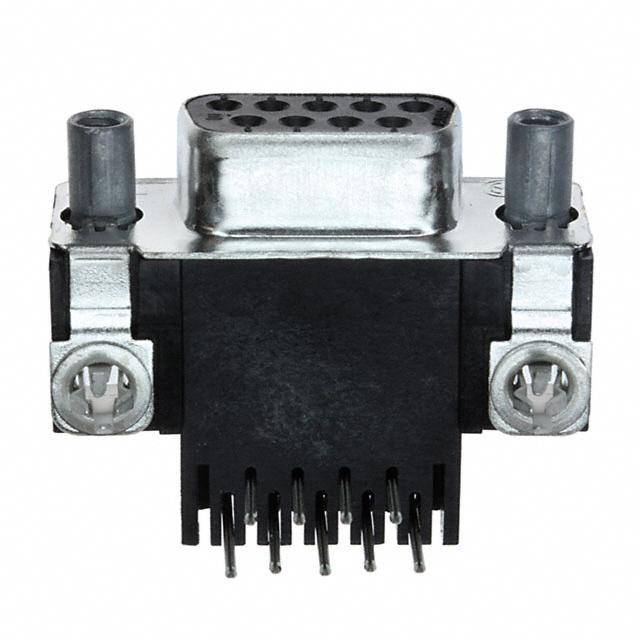

These three substitute parts from the AMPLIMITE HD-20 series provide enhanced electrical performance with 6A current rating versus the 5A rating of the FCE17E09SC2DB. All three maintain UL94 V-0 flammability compliance and MSL 1 rating. Operating temperature range extends to -55°C to 105°C, providing broader environmental capability. Contact finish thickness is doubled to 30.0µin (0.76µm) compared to the main part's 15.0µin. All three feature Mating Side Female Screwlock (4-40) flange configuration and include Board Lock and Ground Strap features.

• 747836-6: Tube packaging, RoHS status Not applicable, REACH Affected
• 5747836-6: Tube packaging, RoHS Compliant, REACH status Vendor Undefined
• 5745988-6: Tray packaging, ROHS3 Compliant, REACH Unaffected

Mercury United Electronics, Inc. Series 626 (626-009-262-032, 626-009-662-032):

These two substitute parts provide alternative sourcing with Board Edge mounting capability in addition to Through Hole and Right Angle options. Both feature Nickel plated steel shells and Copper Alloy contacts. Current rating is 3A per contact, which is lower than the main part. Operating temperature range is -55°C to 85°C. Both include Board Lock, Mounting Brackets, and Shielded features. Contact finish thickness differs: 626-009-262-032 has Flash thickness while 626-009-662-032 has 30.0µin (0.76µm). Both are ROHS3 Compliant and REACH Unaffected.

Selection Basis:

All substitute parts maintain Active product status and UL94 V-0 flammability compliance. TE Connectivity parts offer superior current handling and extended temperature range. Mercury United Electronics parts provide shielded configuration and board edge mounting flexibility. Selection should be based on specific application requirements for current capacity, operating temperature, mounting configuration, and packaging format.

Frequently Asked Questions (FAQ)

Q: Can 747836-6, 5747836-6, or 5745988-6 be used as direct replacements for FCE17E09SC2DB?

A: Yes. All three TE Connectivity parts share identical core specifications: 9 position, 2 row, DE/E shell size, right-angle through-hole solder termination, female socket receptacle configuration, gold contact finish, UL94 V-0 rating, and MSL 1. The TE Connectivity parts provide enhanced specifications with 6A current rating, extended operating temperature to 105°C, and thicker gold plating (30.0µin versus 15.0µin).

Q: What are the differences between 747836-6, 5747836-6, and 5745988-6?

A: All three are AMPLIMITE HD-20 series connectors with identical electrical and mechanical specifications. Differences are in packaging format (Tube versus Tray), RoHS compliance status, and REACH classification. 747836-6 has RoHS status Not applicable with REACH Affected. 5747836-6 is RoHS Compliant with Vendor Undefined REACH status. 5745988-6 is ROHS3 Compliant with REACH Unaffected status.

Q: Can Mercury United Electronics 626-009-262-032 or 626-009-662-032 replace the FCE17E09SC2DB?

A: These parts share the same 9 position, 2 row, DE/E shell size, right-angle solder termination, and female socket configuration. However, current rating is 3A per contact compared to 5A for the main part. Both Mercury parts support Board Edge mounting in addition to Through Hole and Right Angle. Both are shielded and include Mounting Brackets. Selection depends on whether the 3A current rating is sufficient for the application.

Q: What is the difference between 626-009-262-032 and 626-009-662-032?

A: Both are Series 626 connectors with identical specifications except for contact finish thickness. 626-009-262-032 has Flash contact finish thickness, while 626-009-662-032 has 30.0µin (0.76µm) thickness. Both are ROHS3 Compliant and REACH Unaffected.

Q: How do shell material finishes compare between substitute options?

A: FCE17E09SC2DB uses Steel with Tin plating. TE Connectivity parts (747836-6, 5747836-6, 5745988-6) also use Steel with Tin plating. Mercury United Electronics parts (626-009-262-032, 626-009-662-032) use Steel with Nickel plating. Both tin and nickel plating provide corrosion resistance; selection depends on specific environmental and application requirements.

Q: What packaging options are available for substitute parts?

A: TE Connectivity offers Tube packaging (747836-6, 5747836-6) and Tray packaging (5745988-6). Mercury United Electronics offers Bulk packaging (626-009-262-032, 626-009-662-032). FCE17E09SC2DB packaging is not specified in the provided data.

Q: Are all substitute parts RoHS compliant?

A: 5747836-6 is RoHS Compliant. 5745988-6 is ROHS3 Compliant. 626-009-262-032 and 626-009-662-032 are ROHS3 Compliant. 747836-6 has RoHS status Not applicable. FCE17E09SC2DB is RoHS Compliant.

Q: What is the operating temperature range difference?

A: FCE17E09SC2DB operates from -40°C to 85°C. TE Connectivity AMPLIMITE HD-20 parts (747836-6, 5747836-6, 5745988-6) operate from -55°C to 105°C, providing extended low and high temperature capability. Mercury United Electronics 626 series parts operate from -55°C to 85°C, matching the upper limit of the main part but extending the lower limit.

Q: Do all substitute parts have the same backset spacing?

A: TE Connectivity parts have 0.590" (14.99mm) backset spacing, matching the FCE17E09SC2DB. Mercury United Electronics parts have 0.584" (14.84mm) backset spacing, a 0.006" difference. This minor variation should be evaluated for specific PCB layout requirements.
