FCE17A15PE480 D-Sub Plug 15 Position Equivalent & Substitute Parts

Part Overview

The FCE17A15PE480 is a 15 position D-Sub plug connector manufactured by Amphenol ICC (Commercial Products). This through-hole solder termination connector features male pins in a 2-row configuration with shell size 2 (DA, A) layout. The connector is actively produced and stocked with 689 units in inventory.

Equivalent and substitute parts are necessary when the primary part becomes unavailable, when alternative packaging formats are required, or when design specifications permit selection from qualified alternatives that meet the same electrical and mechanical requirements.

Key Parameters

Parameter	FCE17A15PE480 Specification
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Through Hole
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Current Rating	5A
Operating Temperature Range	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Contact Material	Phosphor Bronze

Substitute Part Grouping Explanation

Substitution eligibility for the FCE17A15PE480 is determined by the following critical parameters:

Core Compatibility Requirements:

Connector type: Plug with male pins
Position count: 15 positions
Row configuration: 2 rows
Shell size and layout: 2 (DA, A)
Mounting method: Through hole
Termination method: Solder
Contact material: Phosphor bronze
Contact finish: Gold plated
Flammability rating: UL94 V-0

Allowable Variations:

Flange feature type (board side, housing/shell, mating side configurations)
Shell material finish (tin plated, tin-nickel plated, cadmium plated)
Contact finish thickness (15.0µin, 30.0µin, 50.0µin, or flash)
Current rating (5A or 6A per contact)
Operating temperature range (provided minimum is -40°C and maximum is 85°C or higher)
Dielectric material composition (thermoplastic glass filled, polyester glass filled, polybutylene terephthalate)
Packaging format (tray, bulk)
RoHS compliance status (compliant or non-compliant, depending on application requirements)

Substitute parts must maintain mechanical and electrical interchangeability at the connector interface while accommodating design-specific requirements for flange configuration, temperature performance, and regulatory compliance.

Parameter Comparison

Parameter	FCE17A15PE480	1-338310-2	2-338310-2	3-338310-2	5-338310-2	D15P24A4GV00LF	D15P24A4PA00LF	D15P24A6GX00LF	D15P24B4GV00LF	D15P24B6PA00LF	M24308/24-2F
Manufacturer	Amphenol ICC	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity ADM
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	15	15	15	15	15	15	15	15	15	15
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Cadmium Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Brass
Current Rating (Amps)	5A	6A	6A	6A	6A	5A per Contact	5A per Contact	5A per Contact	5A per Contact	5A per Contact	5A
Operating Temperature Range	-40°C ~ 85°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	Not Specified
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS non-compliant
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Substitutes (Highest Compatibility):

The TE Connectivity AMPLIMITE HDP-20 series parts (1-338310-2, 2-338310-2, 3-338310-2, 5-338310-2) are direct functional equivalents to the FCE17A15PE480. These parts maintain identical connector geometry, pin configuration, and solder termination. All variants are RoHS compliant and actively produced. Selection among these four variants depends on flange feature requirements:

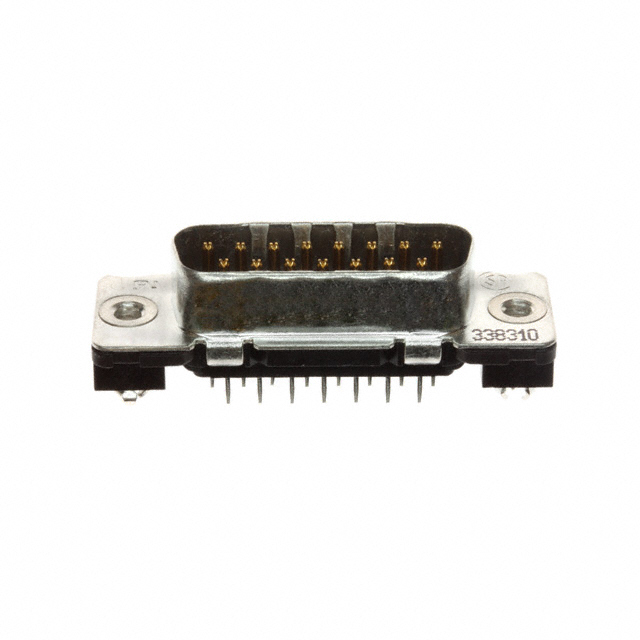

1-338310-2: Board lock feature with 4-40 housing/shell flange
2-338310-2: Board lock feature with M3 housing/shell flange

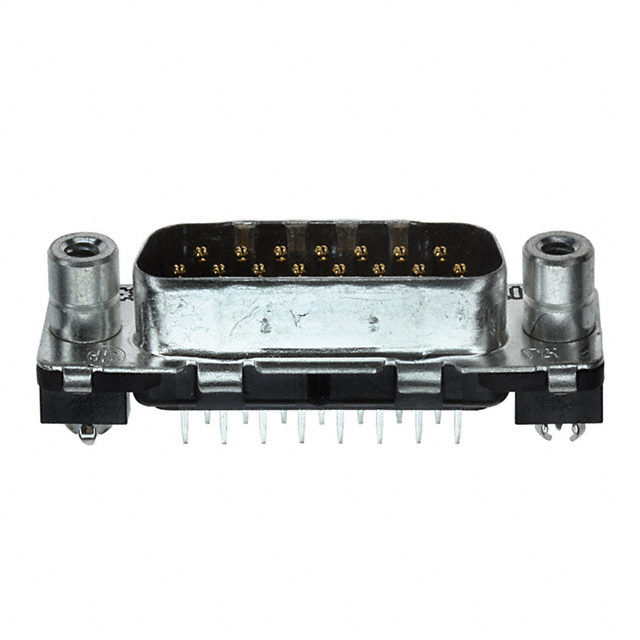

3-338310-2: Board lock feature with 4-40 mating side female screwlock
5-338310-2: Grounding indents only with unthreaded housing/shell flange

All four variants support higher current ratings (6A versus 5A) and extended operating temperature ranges (-55°C to 105°C versus -40°C to 85°C).

Secondary Substitutes (Amphenol ICC Delta D Series):

The Amphenol ICC (FCI) Delta D series (D15P24A4GV00LF, D15P24A4PA00LF, D15P24A6GX00LF, D15P24B4GV00LF, D15P24B6PA00LF) provides equivalent mechanical and electrical performance with extended temperature capability (-55°C to 125°C). These parts feature tin-nickel plated steel shells and support 300V voltage rating. Selection among variants depends on flange configuration and contact finish thickness requirements. All Delta D variants are RoHS compliant and actively produced.

Military/Aerospace Alternative:

The TE Connectivity M24308/24-2F is a military-specification connector conforming to MIL-DTL-24308. This part is RoHS non-compliant and features cadmium plating on the steel shell with 50.0µin gold contact finish. This option is suitable only for applications where military specification compliance is required and RoHS exemption is permitted. The contact material is brass rather than phosphor bronze.

Compliance Considerations:

For applications requiring RoHS compliance, all substitute parts except M24308/24-2F are acceptable. The Delta D series and AMPLIMITE HDP-20 series both meet RoHS requirements. For applications operating within the FCE17A15PE480 temperature range (-40°C to 85°C), all listed substitutes provide adequate thermal performance. For applications requiring extended temperature operation, the Delta D series and AMPLIMITE HDP-20 series are preferred.

Frequently Asked Questions (FAQ)

Q: Can I substitute a TE Connectivity AMPLIMITE HDP-20 connector for the FCE17A15PE480?

A: Yes. The AMPLIMITE HDP-20 series maintains identical connector geometry, pin count, row configuration, shell size, and solder termination. Mechanical and electrical interchangeability is confirmed. Verify that the specific flange feature variant (board lock, unthreaded, or screwlock) matches your PCB mounting requirements.

Q: What is the difference between the four TE Connectivity AMPLIMITE HDP-20 variants?

A: The variants differ in flange feature configuration. Part 1-338310-2 includes board lock with 4-40 threaded housing flange. Part 2-338310-2 includes board lock with M3 threaded housing flange. Part 3-338310-2 includes board lock with 4-40 mating side female screwlock. Part 5-338310-2 features unthreaded housing flange with grounding indents only. Select the variant matching your PCB mounting hole pattern and fastening method.

Q: Are the Amphenol ICC Delta D series connectors compatible with the FCE17A15PE480?

A: Yes. The Delta D series maintains the same 15-position, 2-row, shell size 2 (DA, A) configuration with solder termination and phosphor bronze contacts. Mechanical interchangeability is confirmed. The Delta D series offers extended operating temperature range (-55°C to 125°C) and 300V voltage rating. Shell finish is tin-nickel plated rather than tin plated.

Q: What is the current rating difference between the FCE17A15PE480 and substitute parts?

A: The FCE17A15PE480 is rated at 5A. The TE Connectivity AMPLIMITE HDP-20 series is rated at 6A per contact. The Amphenol ICC Delta D series is rated at 5A per contact. The TE Connectivity M24308/24-2F is rated at 5A. For applications requiring 5A operation, all substitutes are acceptable. For applications requiring 6A operation, only the AMPLIMITE HDP-20 series is suitable.

Q: Can I use the military-specification M24308/24-2F connector as a substitute?

A: The M24308/24-2F is mechanically and electrically compatible. However, this part is RoHS non-compliant and features cadmium plating and brass contacts instead of phosphor bronze. Use this connector only when military specification compliance is required and RoHS exemption is documented. For commercial applications, the AMPLIMITE HDP-20 or Delta D series are preferred.

Q: What packaging formats are available for substitute parts?

A: The TE Connectivity AMPLIMITE HDP-20 series is available in tray packaging (1-338310-2, 3-338310-2, 5-338310-2) and bulk packaging (2-338310-2). The Amphenol ICC Delta D series is available in tray packaging. The TE Connectivity M24308/24-2F is available in bulk packaging. Verify packaging requirements with your procurement process.

Q: Do all substitute parts meet RoHS compliance requirements?

A: All substitute parts except M24308/24-2F are RoHS compliant. The AMPLIMITE HDP-20 series is RoHS compliant (with 5-338310-2 designated ROHS3 compliant). The Delta D series is RoHS compliant. The M24308/24-2F is RoHS non-compliant. Confirm RoHS compliance requirements for your application before part selection.

Q: What is the operating temperature range for each substitute option?

A: The FCE17A15PE480 operates from -40°C to 85°C. The TE Connectivity AMPLIMITE HDP-20 series operates from -55°C to 105°C. The Amphenol ICC Delta D series operates from -55°C to 125°C. The TE Connectivity M24308/24-2F operates from -55°C to 125°C. For applications within the FCE17A15PE480 temperature range, all substitutes are acceptable. For extended temperature applications, the Delta D series or M24308/24-2F provide additional margin.

Q: How do contact finish thicknesses differ among substitute parts?

A: The FCE17A15PE480 specifies 15.0µin (0.38µm) gold contact finish. The TE Connectivity AMPLIMITE HDP-20 series does not specify contact finish thickness. The Amphenol ICC Delta D series offers variants with flash finish or 30.0µin (0.76µm) finish. The TE Connectivity M24308/24-2F specifies 50.0µin (1.27µm) finish. For applications with specific contact finish requirements, verify the selected variant meets thickness specifications.
