FCE17A15PC2DB D-Sub 15 Position Right Angle Solder Plug Connector

Part Overview

The FCE17A15PC2DB is a 15 position D-Sub plug connector manufactured by Amphenol ICC (Commercial Products). This connector features male pins, right angle mounting, and solder termination, designed for through-hole PCB applications. The part is currently active in production with 707 units in stock. Alternative equivalent and substitute parts are necessary to address supply chain flexibility, extended operating temperature requirements, alternative flange configurations, and different shell material finishes while maintaining electrical and mechanical compatibility.

Substiute Parts

FCE17A15PC2DB

Amphenol ICC (Commercial Products)In Stock: 770FCE17A15PC2DB Datasheet

Current PartRFQ

183-015-113R161

NorComp Inc.In Stock: 1590183-015-113R161 Datasheet

SimilarRFQ

183-015-113R171

NorComp Inc.In Stock: 1561183-015-113R171 Datasheet

SimilarRFQ

183-015-113R181

NorComp Inc.In Stock: 1492183-015-113R181 Datasheet

SimilarRFQ

183-015-113R531

NorComp Inc.In Stock: 1567183-015-113R531 Datasheet

SimilarRFQ

183-015-113R561

NorComp Inc.In Stock: 954183-015-113R561 Datasheet

SimilarRFQ

5745352-4

TE Connectivity AMP ConnectorsIn Stock: 11925745352-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the FCE17A15PC2DB are qualified based on the following core parameters that determine functional and mechanical compatibility:

Critical Matching Parameters:

• Connector Style: D-Sub
• Connector Type: Plug, Male Pins
• Number of Positions: 15
• Number of Rows: 2
• Shell Size, Connector Layout: 2 (DA, A)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Current Rating: 5A or greater
• Backset Spacing: 0.590" (14.99mm)
• Material Flammability Rating: UL94 V-0
• Contact Finish: Gold
• Color: Black

Allowable Variations:

• Shell Material Finish: Steel with Tin Plated or Nickel Plated finishes
• Flange Feature: Housing/Shell (Unthreaded), Housing/Shell (4-40), Mating Side Female Screwlock (4-40), or Mating Side Standard Screws (4-40)
• Contact Material: Phosphor Bronze or Brass
• Dielectric Material: Thermoplastic Glass Filled or Polyamide (PA9T) Nylon 9T
• Operating Temperature Range: Extended ranges acceptable if minimum -40°C and maximum ≥85°C
• RoHS Status: RoHS Compliant or ROHS3 Compliant

The NorComp Inc. 183 series parts (183-015-113R161, 183-015-113R171, 183-015-113R181, 183-015-113R531, 183-015-113R561) and TE Connectivity 5745352-4 meet all critical matching parameters and are qualified as direct substitutes with noted variations in flange configuration and shell material finish.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute (Closest Match): The 183-015-113R161 (NorComp Inc.) is the closest functional equivalent to the FCE17A15PC2DB. Both parts share identical critical parameters including connector style, position count, shell size, mounting type, termination method, current rating, and backset spacing. The 183-015-113R161 features an extended operating temperature range (-55°C to 105°C) compared to the original part (-40°C to 85°C), providing enhanced thermal performance. The primary difference is the shell material finish (Nickel Plated versus Tin Plated) and flange configuration (Unthreaded Housing/Shell). Both parts maintain UL94 V-0 flammability rating and RoHS compliance (ROHS3 for the substitute).

Alternative Substitutes with Flange Variations: The 183-015-113R171 and 183-015-113R531 (NorComp Inc.) are functionally equivalent with Housing/Shell (4-40) threaded flange features, suitable for applications requiring threaded mounting. The 183-015-113R181 and 183-015-113R561 (NorComp Inc.) feature Mating Side Female Screwlock (4-40) flanges for applications requiring mating-side locking mechanisms. All NorComp substitutes provide extended operating temperature range and ROHS3 compliance.

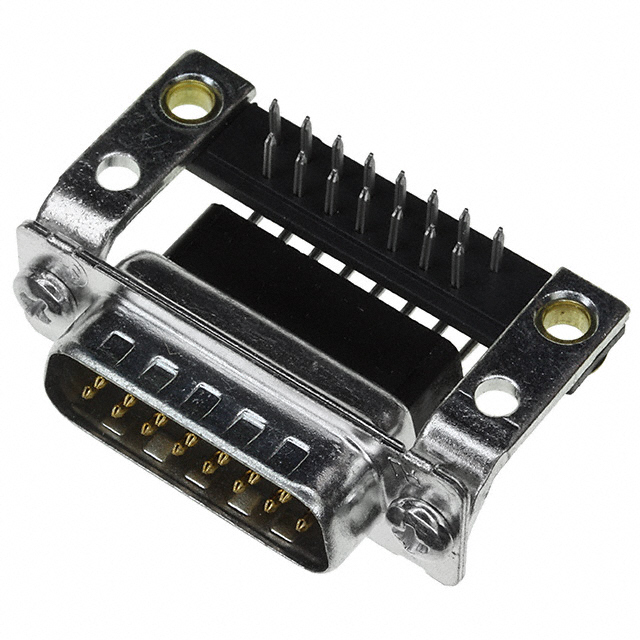

Higher Current Rating Alternative: The 5745352-4 (TE Connectivity AMP Connectors, AMPLIMITE HDP-20 series) provides a 6A current rating compared to the 5A rating of the original part, with identical shell size, position count, and mounting configuration. This part features Mating Side Standard Screws (4-40) flange configuration and includes a 125V voltage rating specification. The backset spacing differs slightly (0.545" versus 0.590"), which may affect PCB layout compatibility. This part is suitable for applications requiring higher current capacity and is RoHS Compliant with extended operating temperature range.

Compliance and Status: All substitute parts are active in production with confirmed inventory availability. All parts maintain UL94 V-0 flammability rating and are RoHS compliant or ROHS3 compliant. All parts are classified under ECCN EAR99 and HTSUS 8536.69.4040.

Frequently Asked Questions (FAQ)

Q: Can the NorComp 183 series parts directly replace the Amphenol FCE17A15PC2DB in existing PCB designs?

A: The NorComp 183 series parts (183-015-113R161, 183-015-113R171, 183-015-113R181, 183-015-113R531, 183-015-113R561) are functionally equivalent and share identical critical electrical and mechanical parameters including connector style, position count, shell size, mounting type, and backset spacing. Direct PCB substitution is supported. Flange configuration differences (Unthreaded, 4-40 threaded, or Mating Side Screwlock) may affect mounting bracket compatibility depending on application design.

Q: What is the difference between the various NorComp 183 series substitute parts?

A: All five NorComp 183 series substitutes share identical electrical specifications and core mechanical parameters. The differences are in flange configuration and mounting features: 183-015-113R161 features Unthreaded Housing/Shell flange; 183-015-113R171 and 183-015-113R531 feature Housing/Shell (4-40) threaded flanges; 183-015-113R181 and 183-015-113R561 feature Mating Side Female Screwlock (4-40) flanges. Additionally, 183-015-113R531 and 183-015-113R561 include Board Lock features. Selection depends on the specific mounting and locking requirements of the application.

Q: Is the TE Connectivity 5745352-4 a suitable substitute for the FCE17A15PC2DB?

A: The TE Connectivity 5745352-4 is functionally equivalent in connector style, position count, shell size, and mounting type. The part provides a higher current rating (6A versus 5A) and includes a 125V voltage rating specification. However, the backset spacing differs (0.545" versus 0.590"), which may require PCB layout verification to ensure compatibility with existing mounting hole patterns. The flange configuration (Mating Side Standard Screws 4-40) differs from the original part. This substitute is suitable for applications requiring higher current capacity and extended operating temperature range.

Q: What are the key differences in shell material finish between the original part and substitutes?

A: The FCE17A15PC2DB features a Steel, Tin Plated shell finish. The NorComp 183 series substitutes feature Steel, Nickel Plated shell finish. The TE Connectivity 5745352-4 features Steel, Tin Plated shell finish, matching the original part. Both Tin Plated and Nickel Plated finishes provide corrosion resistance and are suitable for standard industrial applications. Selection between finishes depends on specific environmental exposure and corrosion resistance requirements.

Q: Are all substitute parts RoHS compliant?

A: Yes. The FCE17A15PC2DB is RoHS Compliant. All NorComp 183 series substitutes are ROHS3 Compliant. The TE Connectivity 5745352-4 is RoHS Compliant. All parts meet RoHS requirements and are suitable for applications with RoHS compliance mandates.

Q: What is the operating temperature range difference between the original part and substitutes?

A: The FCE17A15PC2DB operates from -40°C to 85°C. All substitute parts (NorComp 183 series and TE Connectivity 5745352-4) operate from -55°C to 105°C, providing an extended operating temperature range. This extended range supports applications requiring operation in more extreme thermal environments.

Q: How do the contact materials differ between the original part and substitutes?

A: The FCE17A15PC2DB uses Phosphor Bronze contacts. All substitute parts use Brass contacts. Both materials provide adequate electrical conductivity and contact reliability for signal applications. The choice between Phosphor Bronze and Brass depends on specific application requirements for contact force, wear resistance, and electrical performance.

Q: What packaging formats are available for these parts?

A: The FCE17A15PC2DB is supplied in standard packaging (not specified). NorComp 183 series substitutes are supplied in Tray packaging. The TE Connectivity 5745352-4 is supplied in Bulk packaging. Packaging format selection depends on production volume requirements and inventory management procedures.

Q: Are there any moisture sensitivity considerations for these parts?

A: The FCE17A15PC2DB has Moisture Sensitivity Level (MSL) 1 (Unlimited), indicating no moisture sensitivity. The NorComp 183-015-113R161, 183-015-113R171, and 183-015-113R181 are listed as Not Applicable for MSL. The NorComp 183-015-113R531 and 183-015-113R561 have MSL 1 (Unlimited). The TE Connectivity 5745352-4 has MSL 1 (Unlimited). All parts are suitable for standard storage and handling without special moisture control requirements.

Q: What is the difference between Housing/Shell (4-40) and Mating Side Female Screwlock (4-40) flange configurations?

A: Housing/Shell (4-40) flanges feature threaded mounting holes on the connector housing shell, allowing the connector to be secured to a panel or bracket using 4-40 screws. Mating Side Female Screwlock (4-40) flanges feature threaded holes on the mating side of the connector, providing a locking mechanism that engages with the mating connector. Selection depends on whether the application requires panel mounting (Housing/Shell) or mating-side locking (Mating Side Screwlock).
