FCC17E09SN490 Equivalent & Substitute Parts Reference

Part Overview

The FCC17E09SN490 is a 9-position D-Sub receptacle connector manufactured by Amphenol ICC (Commercial Products). This connector features female sockets, vertical solder termination, and board-side flange mounting with 4-40 fasteners. The part operates across a temperature range of -40°C to 85°C with a 5A current rating and 200V voltage rating.

The FCC17E09SN490 is classified as obsolete. Equivalent and substitute parts are necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance. Substitute connectors must maintain electrical compatibility (9 positions, 2 rows, DE/E shell size) and mechanical interchangeability while meeting current manufacturing and compliance standards.

Key Parameters

Parameter	FCC17E09SN490 Value
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout	1 (DE, E)
Mounting Type	Through Hole
Flange Feature	Board Side (4-40)
Termination	Solder
Current Rating (Amps)	5A
Voltage Rating	200V
Operating Temperature	-40°C ~ 85°C
Contact Finish	Gold
Shell Material, Finish	Steel, Tin Plated
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitute parts for the FCC17E09SN490 are grouped based on strict electrical and mechanical compatibility criteria. All substitute connectors must satisfy the following mandatory parameters:

Electrical Compatibility:

Connector type: Receptacle, Female Sockets
Number of positions: 9
Number of rows: 2
Shell size and layout: 1 (DE, E)
Contact finish: Gold
Termination method: Solder
Material flammability rating: UL94 V-0

Mechanical Compatibility:

Connector style: D-Sub
Mounting type: Through Hole or Panel Mount, Through Hole
Flange feature: Board Side (4-40), Housing/Shell (Unthreaded), or Mating Side (4-40)

Performance Parameters:

Current rating: 5A or higher
Voltage rating: 125V or higher
Operating temperature range: Must encompass or exceed -40°C to 85°C

Substitutes are organized into two primary groups: Amphenol ICC series (FCE17E09SN490) and alternative manufacturers (NorComp Inc. 172 series, TE Connectivity AMPLIMITE HDP-20 series). Each group maintains full electrical and mechanical interchangeability with the original part while offering different compliance statuses and manufacturing standards.

Parameter Comparison

Part Number	Manufacturer	Series	Product Status	Positions	Mounting Type	Flange Feature	Current Rating (A)	Voltage Rating (V)	Operating Temp (°C)	Shell Material, Finish	Contact Material	RoHS Status
FCC17E09SN490	Amphenol ICC	FCC17	Obsolete	9	Through Hole	Board Side (4-40)	5	200	-40 ~ 85	Steel, Tin Plated	Phosphor Bronze	Non-compliant
FCE17E09SN490	Amphenol ICC	FCE17	Active	9	Through Hole	Board Side (4-40)	5	—	-40 ~ 85	Steel, Tin Plated	Phosphor Bronze	Compliant
172-009-283L001	NorComp Inc.	172, M Series	Active	9	Panel Mount, Through Hole	Housing/Shell (Unthreaded)	5	—	-50 ~ 125	Steel, Nickel Plated	Brass	ROHS3 Compliant
172-009-283L011	NorComp Inc.	172, M Series	Active	9	Panel Mount, Through Hole	Board Side (4-40)	5	—	-50 ~ 125	Steel, Nickel Plated	Brass	ROHS3 Compliant
172-009-283L021	NorComp Inc.	172, M Series	Active	9	Panel Mount, Through Hole	Board Side (4-40)	5	—	-50 ~ 125	Steel, Nickel Plated	Brass	ROHS3 Compliant
172-009-283L031	NorComp Inc.	172, M Series	Active	9	Panel Mount, Through Hole	Mating Side (4-40)	5	—	-50 ~ 125	Steel, Nickel Plated	Brass	ROHS3 Compliant

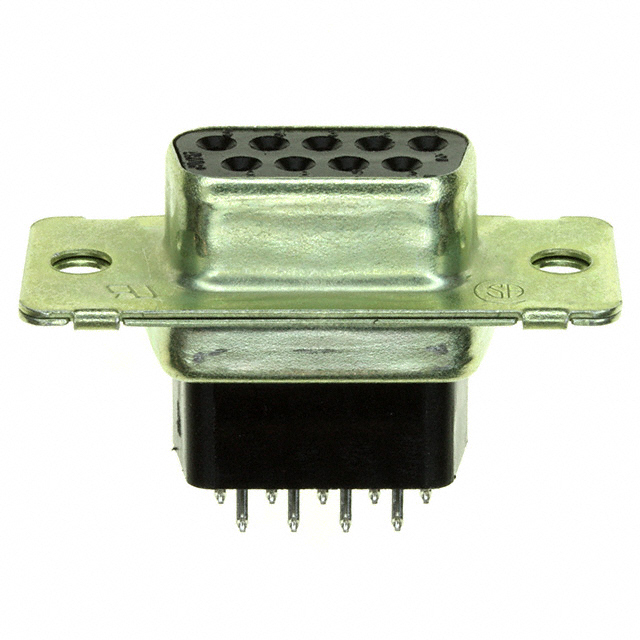

205734-1	TE Connectivity AMP	AMPLIMITE HDP-20	Active	9	Through Hole	Housing/Shell (Unthreaded)	6	125	-55 ~ 105	Steel, Yellow Chromate Plated Zinc	Phosphor Bronze	Non-compliant
205734-4	TE Connectivity AMP	AMPLIMITE HDP-20	Active	9	Through Hole	Housing/Shell (Unthreaded)	6	125	-55 ~ 105	Steel, Yellow Chromate Plated Zinc	Phosphor Bronze	Compliant
205734-5	TE Connectivity AMP	AMPLIMITE HDP-20	Active	9	Through Hole	Housing/Shell (Unthreaded)	6	125	-55 ~ 105	Steel, Yellow Chromate Plated Zinc	Phosphor Bronze	Non-compliant
205734-7	TE Connectivity AMP	AMPLIMITE HDP-20	Active	9	Through Hole	Housing/Shell (Unthreaded)	6	125	-55 ~ 105	Steel, Yellow Chromate Plated Zinc	Phosphor Bronze	Non-compliant

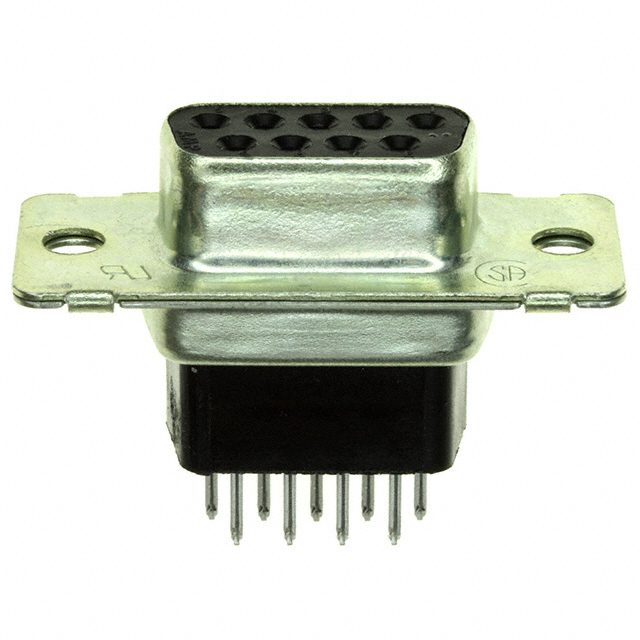

5205734-1	TE Connectivity AMP	AMPLIMITE HDP-20	Active	9	Through Hole	Housing/Shell (Unthreaded)	6	125	-55 ~ 105	Steel, Yellow Chromate Plated Zinc	Phosphor Bronze	Compliant

Engineering Selection Recommendations

Primary Substitute: FCE17E09SN490 (Amphenol ICC)

The FCE17E09SN490 is the direct equivalent to the obsolete FCC17E09SN490. Both parts share identical electrical specifications, mechanical dimensions, and mounting configurations. The FCE17E09SN490 is active in production and RoHS compliant, making it the preferred choice for new designs and legacy system replacements. This part maintains the same board-side flange mounting (4-40) and solder termination as the original.

Secondary Substitutes: NorComp Inc. 172 Series (172-009-283L011, 172-009-283L021)

The NorComp 172-009-283L011 and 172-009-283L021 connectors provide full electrical compatibility with identical 9-position, 2-row DE/E shell configuration and 5A current rating. Both parts feature board-side flange mounting (4-40) and are ROHS3 compliant. The extended operating temperature range (-50°C to 125°C) exceeds the original specification. These parts are suitable for applications requiring enhanced compliance standards and extended thermal performance.

Alternative Substitutes: TE Connectivity AMPLIMITE HDP-20 Series (205734-4, 5205734-1)

The TE Connectivity 205734-4 and 5205734-1 connectors maintain electrical compatibility with 9 positions, 2 rows, and DE/E shell size. Both deliver 6A current rating, exceeding the original 5A specification. The 205734-4 is RoHS compliant; 5205734-1 is RoHS compliant with tube packaging. These parts feature housing/shell unthreaded flange mounting, which differs from the original board-side configuration. Selection of these parts requires mechanical design verification to confirm flange compatibility with existing PCB layouts.

Compliance Considerations:

For new designs and systems requiring RoHS compliance, select FCE17E09SN490, 172-009-283L011, 172-009-283L021, 205734-4, or 5205734-1. For legacy systems with non-compliant specifications, the original FCC17E09SN490 remains available in inventory (1167 pcs).

Frequently Asked Questions (FAQ)

Q: Can the FCE17E09SN490 directly replace the FCC17E09SN490 without PCB modification?

A: Yes. The FCE17E09SN490 maintains identical electrical specifications, mechanical dimensions, and board-side flange mounting (4-40) as the FCC17E09SN490. No PCB layout changes are required for direct substitution.

Q: What is the primary difference between Amphenol ICC FCC17 and FCE17 series?

A: The FCE17E09SN490 is the active production equivalent of the obsolete FCC17E09SN490. Both maintain identical connector specifications. The FCE17 series is RoHS compliant, while the FCC17 series is not.

Q: Are NorComp 172-009-283L011 and 172-009-283L021 interchangeable with the FCC17E09SN490?

A: Both NorComp parts provide full electrical compatibility (9 positions, 2 rows, DE/E shell, 5A rating, gold-plated contacts, solder termination). Both feature board-side flange mounting (4-40), matching the original configuration. The extended operating temperature range (-50°C to 125°C) exceeds the original specification. These parts are mechanically and electrically interchangeable.

Q: Why do TE Connectivity 205734 series parts have different flange mounting than the original?

A: The TE Connectivity AMPLIMITE HDP-20 series (205734-1, 205734-4, 205734-5, 205734-7, 5205734-1) feature housing/shell unthreaded flange mounting instead of board-side (4-40) mounting. This design difference requires verification of mechanical compatibility with existing PCB mounting holes and fastener patterns before selection.

Q: What is the significance of the 6A current rating in TE Connectivity parts versus the 5A original specification?

A: The TE Connectivity AMPLIMITE HDP-20 series delivers 6A current rating, which exceeds the original 5A specification. This higher rating provides additional design margin and is fully compatible with applications designed for 5A operation. No electrical redesign is required.

Q: Are there packaging differences between substitute parts?

A: Yes. The FCC17E09SN490 and FCE17E09SN490 are supplied in standard packaging. NorComp 172 series parts are supplied in trays. TE Connectivity 205734 series parts are supplied in bulk or tube packaging (5205734-1). Verify packaging requirements for your procurement and assembly processes.

Q: Which substitute part offers the best compliance profile for new designs?

A: The FCE17E09SN490 (Amphenol ICC) is the recommended choice for new designs. It is RoHS compliant, maintains identical specifications to the original, and requires no design modifications. For applications requiring extended thermal performance, the NorComp 172-009-283L011 or 172-009-283L021 offer ROHS3 compliance with -50°C to 125°C operating range.

Q: Can I use 172-009-283L001 as a substitute if board-side flange mounting is not available?

A: The 172-009-283L001 features housing/shell unthreaded flange mounting, which differs from the original board-side (4-40) configuration. This part is electrically compatible but requires mechanical design verification to confirm compatibility with existing PCB mounting patterns and fastener arrangements.

Q: What is the inventory status of substitute parts?

A: FCE17E09SN490: 1017 pcs. NorComp 172-009-283L011: 3265 pcs. NorComp 172-009-283L021: 2607 pcs. TE Connectivity 205734-4: 1074 pcs. TE Connectivity 5205734-1: 971 pcs. All substitute parts are available as new original stock.
