FCC17E09PN2D0 Equivalent & Substitute Parts

Part Overview

The FCC17E09PN2D0 is a 9-position D-Sub plug connector with male pins manufactured by Amphenol ICC (Commercial Products). This connector features vertical solder termination, through-hole mounting, and is designed for signal applications in industrial and commercial equipment. The part is classified as obsolete, necessitating identification of active equivalent and substitute components for new designs and ongoing production requirements. Substitute parts maintain functional compatibility while offering improved availability and compliance status.

Key Parameters

Parameter	FCC17E09PN2D0
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout	1 (DE, E)
Mounting Type	Through Hole
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Current Rating (Amps)	5A
Voltage Rating	200V
Operating Temperature	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Dielectric Material	Thermoplastic
Color	Black
Product Status	Obsolete
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility for the FCC17E09PN2D0 is determined by strict equivalence across the following critical parameters:

Primary Compatibility Criteria:

Connector style: D-Sub
Connector type: Plug, Male Pins
Number of positions: 9
Number of rows: 2
Shell size and layout: 1 (DE, E)
Mounting type: Through Hole
Termination method: Solder
Contact type: Signal
Flange feature: Housing/Shell (Unthreaded)
Material flammability rating: UL94 V-0
Color: Black

Secondary Compatibility Parameters:

Contact finish: Gold
Operating temperature range: -40°C ~ 85°C minimum
Current rating: 5A minimum
Voltage rating: 125V minimum

Substitute parts must satisfy all primary criteria and maintain or exceed secondary parameter specifications. Variations in shell material finish, contact material composition, dielectric material formulation, and compliance status are permissible when primary and secondary electrical and mechanical parameters are met.

Parameter Comparison

Parameter	FCC17E09PN2D0	FCE17E09PN2D0	205733-1	205733-7	5205733-1
Manufacturer	Amphenol ICC	Amphenol ICC	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	9	9	9	9	9
Number of Rows	2	2	2	2	2
Shell Size, Connector Layout	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Yellow Chromate Plated Zinc	Steel, Yellow Chromate Plated Zinc	Steel, Yellow Chromate Plated Zinc
Contact Finish	Gold	Gold	Gold	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating (Amps)	5A	5A	6A	6A	6A
Voltage Rating	200V	Not specified	125V	125V	125V
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Contact Material	Phosphor Bronze	Phosphor Bronze	Brass	Brass	Brass
Dielectric Material	Thermoplastic	Thermoplastic, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Color	Black	Black	Black	Black	Black
Product Status	Obsolete	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	Not applicable	RoHS Compliant

Engineering Selection Recommendations

Primary Recommendation: FCE17E09PN2D0

The FCE17E09PN2D0 represents the direct active equivalent from Amphenol ICC (Commercial Products). This substitute maintains identical mechanical and electrical specifications with the FCC17E09PN2D0 across all primary compatibility criteria. The FCE17E09PN2D0 is classified as active product status, ensuring ongoing availability and supply chain continuity. This part achieves RoHS compliance, providing regulatory advantage for new designs. The dielectric material is specified as thermoplastic with glass filling, offering enhanced mechanical properties compared to the base thermoplastic formulation of the original part. Selection of FCE17E09PN2D0 is recommended for direct replacement in existing applications and new designs requiring Amphenol ICC connector architecture.

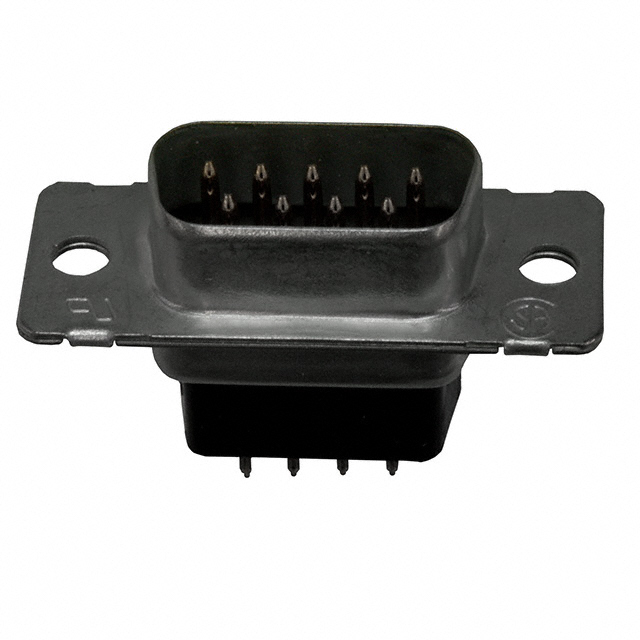

Secondary Recommendation: 5205733-1

The 5205733-1 from TE Connectivity AMP Connectors (AMPLIMITE HDP-20 series) provides functional equivalence with enhanced electrical performance. This substitute exceeds the original part specifications with 6A current rating versus 5A, and extended operating temperature range of -55°C to 105°C versus -40°C to 85°C. The 5205733-1 achieves RoHS compliance and is classified as active product status. Contact finish is specified as flash gold plating. Packaging is provided in tube format. This part is suitable for applications requiring improved thermal performance and regulatory compliance.

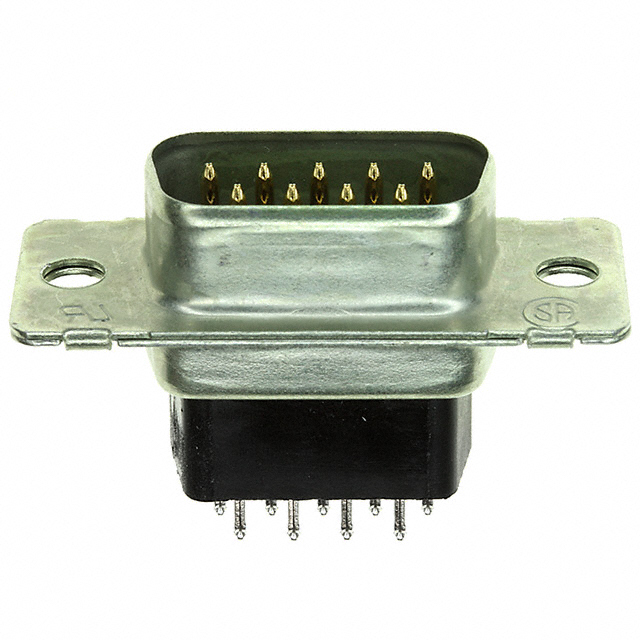

Alternative Options: 205733-1 and 205733-7

The 205733-1 and 205733-7 from TE Connectivity AMP Connectors (AMPLIMITE HDP-20 series) provide functional equivalence with identical electrical and mechanical specifications. Both parts feature 6A current rating and -55°C to 105°C operating temperature range. Contact finish thickness is specified as 30.0µin (0.76µm), exceeding the original part specification. These parts are classified as active product status. The 205733-1 is RoHS non-compliant, while 205733-7 RoHS status is not applicable. Selection between these alternatives and 5205733-1 is determined by packaging requirements (bulk versus tube) and compliance documentation needs.

Frequently Asked Questions (FAQ)

Q: Can FCE17E09PN2D0 be used as a direct replacement for FCC17E09PN2D0?

A: Yes. The FCE17E09PN2D0 maintains identical specifications across all primary compatibility parameters: 9-position D-Sub plug with male pins, shell size 1 (DE, E), through-hole solder termination, UL94 V-0 flammability rating, 5A current rating, and -40°C to 85°C operating temperature range. The FCE17E09PN2D0 is active product status and RoHS compliant, providing improved supply availability and regulatory compliance.

Q: What are the key differences between TE Connectivity AMP substitute parts and the Amphenol ICC original?

A: TE Connectivity AMP substitutes (205733-1, 205733-7, 5205733-1) maintain identical mechanical and electrical compatibility while offering enhanced specifications. Current rating is increased to 6A, operating temperature range is extended to -55°C to 105°C, and contact finish thickness is increased to 30.0µin (0.76µm) or flash plating. Contact material is brass instead of phosphor bronze, and dielectric material is polyamide nylon glass-filled instead of thermoplastic. All parts maintain gold contact finish, UL94 V-0 flammability rating, and black color.

Q: Are there voltage rating differences between substitute parts?

A: The original FCC17E09PN2D0 specifies 200V voltage rating. The FCE17E09PN2D0 does not specify voltage rating in available documentation. TE Connectivity AMP substitutes (205733-1, 205733-7, 5205733-1) specify 125V voltage rating. For applications requiring 200V operation, verify that 125V rating is acceptable for the intended circuit design, or confirm voltage rating with FCE17E09PN2D0 manufacturer documentation.

Q: What is the difference between 205733-1 and 5205733-1 packaging?

A: The 205733-1 is supplied in bulk packaging, while 5205733-1 is supplied in tube packaging. Both parts are functionally identical with identical electrical and mechanical specifications. Packaging selection is determined by assembly process requirements and inventory management practices.

Q: Is RoHS compliance required for my application?

A: RoHS compliance status varies among substitute parts. The FCE17E09PN2D0 and 5205733-1 are RoHS compliant. The 205733-1 is RoHS non-compliant. The 205733-7 RoHS status is not applicable. Verify RoHS compliance requirements for your specific application and end-market regulations before part selection.

Q: Can I use substitute parts with higher current ratings in place of the original 5A specification?

A: Yes. TE Connectivity AMP substitutes are rated for 6A, exceeding the original 5A specification. Higher current rating provides design margin and is compatible with applications designed for 5A operation. No circuit redesign is required when substituting with higher-rated components.

Q: What is the operating temperature range difference?

A: The original FCC17E09PN2D0 operates from -40°C to 85°C. The FCE17E09PN2D0 maintains this range. TE Connectivity AMP substitutes operate from -55°C to 105°C, providing extended temperature capability. For applications operating within the original -40°C to 85°C range, all substitute parts are suitable. For applications requiring extended temperature operation, TE Connectivity AMP substitutes provide enhanced performance.

Q: Are contact material differences (phosphor bronze versus brass) significant?

A: Contact material differences reflect design variations between manufacturers. Phosphor bronze (original part) and brass (TE Connectivity AMP substitutes) both provide reliable electrical contact performance and are standard materials for D-Sub connectors. Material selection does not affect functional compatibility or electrical performance in standard signal applications. Both materials maintain gold plating for corrosion resistance and electrical conductivity.
