FCC17E09AD210 Equivalent & Substitute Parts

Part Overview

The FCC17E09AD210 is a D-Sub adapter connector manufactured by Amphenol ICC (Commercial Products). This connector functions as a gender changer, converting D-Sub 9 Pin Male connections to D-Sub 9 Pin Female connections in a free-hanging (in-line) configuration. The adapter incorporates integrated filtering and is classified as a Connector Saver style component.

The FCC17E09AD210 is currently listed as obsolete. Locating equivalent or substitute parts is necessary to support legacy system maintenance, repair operations, and continued availability for applications where this connector type remains in service.

Substiute Parts

FCC17E09AD210

Amphenol ICC (Commercial Products)In Stock: 889FCC17E09AD210 Datasheet

Current PartRFQ

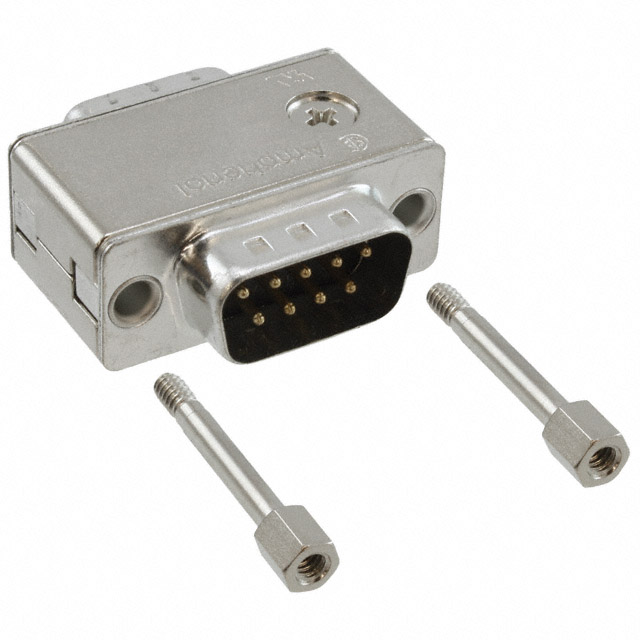

FCE17E09AD210

Amphenol ICC (Commercial Products)In Stock: 1264FCE17E09AD210 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FCC17E09AD210 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector type and pin configuration (D-Sub 9 Pin Female to 9 Pin Male)
• Mounting type (Free Hanging/In-Line)
• Current rating (5 A minimum)
• Operating temperature range (-40°C to 85°C minimum)
• Shell material and finish (Steel, Tin Plated)
• Contact finish specification (Gold, 15.0µin thickness)
• Integrated filter feature
• Housing color (Black)
• Material flammability rating (UL94 V-0)
• Moisture sensitivity level (MSL 1)

Parts meeting all these parameters are classified as direct substitutes. Differences in product status (active versus obsolete) and RoHS compliance do not affect functional equivalence but may influence procurement strategy and long-term availability.

Parameter Comparison

Engineering Selection Recommendations

FCE17E09AD210 as Direct Substitute:

The FCE17E09AD210 is a direct functional equivalent to the FCC17E09AD210. All electrical, mechanical, and environmental parameters are identical. The substitute part is manufactured by the same supplier (Amphenol ICC) and maintains identical connector specifications, pin configurations, current ratings, and operating temperature ranges.

Key Differentiation Factors:

1. Product Status: The FCE17E09AD210 is classified as Active, whereas the FCC17E09AD210 is Obsolete. This distinction affects long-term procurement viability and supplier support availability.

2. RoHS Compliance: The FCE17E09AD210 is RoHS Compliant, while the FCC17E09AD210 is RoHS non-compliant. Applications subject to RoHS regulatory requirements must use the FCE17E09AD210.

3. Packaging: The FCE17E09AD210 is supplied in Bulk packaging, whereas the FCC17E09AD210 packaging specification is not provided. Packaging differences do not affect functional performance but may influence inventory management and handling procedures.

Selection Criteria:

For new designs, system upgrades, or applications with RoHS compliance mandates, the FCE17E09AD210 is the appropriate selection. For legacy system maintenance where RoHS compliance is not required and existing inventory of FCC17E09AD210 units is available, the original part number may be retained. When FCC17E09AD210 inventory is depleted, transition to FCE17E09AD210 without functional impact.

Frequently Asked Questions (FAQ)

Q: Can FCE17E09AD210 be used as a direct replacement for FCC17E09AD210?

A: Yes. The FCE17E09AD210 is functionally equivalent to the FCC17E09AD210 across all electrical, mechanical, and environmental specifications. Both parts are D-Sub 9 Pin Female to 9 Pin Male adapters with identical current ratings, operating temperature ranges, shell materials, contact finishes, and integrated filtering features.

Q: What is the difference between FCC17E09AD210 and FCE17E09AD210?

A: The primary differences are product status and RoHS compliance. The FCC17E09AD210 is obsolete and RoHS non-compliant, while the FCE17E09AD210 is active and RoHS compliant. Functionally, both parts are identical. The FCE17E09AD210 is supplied in Bulk packaging.

Q: Are there any compatibility concerns when substituting FCE17E09AD210 for FCC17E09AD210?

A: No compatibility concerns exist. Both parts maintain identical pin configurations, connector styles, mounting types, and electrical ratings. They are interchangeable in all applications where the FCC17E09AD210 was originally specified.

Q: Does RoHS compliance affect the performance of FCE17E09AD210?

A: RoHS compliance does not affect electrical or mechanical performance. RoHS compliance indicates that the part meets restrictions on hazardous substances as defined by regulatory standards. The FCE17E09AD210 maintains identical performance characteristics to the FCC17E09AD210 while meeting RoHS requirements.

Q: What is the current rating for both parts?

A: Both the FCC17E09AD210 and FCE17E09AD210 are rated for 5 A continuous current.

Q: What is the operating temperature range?

A: Both parts operate across the temperature range of -40°C to 85°C.

Q: Are both parts suitable for filtered applications?

A: Yes. Both the FCC17E09AD210 and FCE17E09AD210 incorporate integrated filtering features and are classified as Connector Saver style adapters.

Q: What is the contact finish specification?

A: Both parts feature gold-plated contacts with a thickness of 15.0µin (0.38µm).

Q: Is packaging a factor in selecting between these parts?

A: Packaging differences do not affect functional performance. The FCE17E09AD210 is supplied in Bulk packaging. Packaging selection depends on inventory management requirements and procurement procedures rather than technical compatibility.
