FCC17C37SN490 37-Position D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

The FCC17C37SN490 is a 37-position D-Sub receptacle connector manufactured by Amphenol ICC, featuring female sockets with vertical solder termination and board-side flange mounting. This connector is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new design implementations. The part operates within a 5A current rating and 200V voltage specification, with gold-plated contacts and thermoplastic dielectric material rated UL94 V-0.

Key Parameters

Parameter	FCC17C37SN490
Connector Type	D-Sub Receptacle, Female Sockets
Number of Positions	37
Shell Size / Layout	4 (DC, C)
Mounting Type	Through Hole
Flange Feature	Board Side (4-40)
Termination	Solder
Current Rating	5A
Voltage Rating	200V
Contact Finish	Gold (15.0µin / 0.38µm)
Shell Material	Steel, Tin Plated
Operating Temperature	-40°C ~ 85°C
Material Flammability	UL94 V-0
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following critical parameters:

Primary Compatibility Criteria:

Connector type: D-Sub receptacle, female sockets
Number of positions: 37
Shell size and layout: 4 (DC, C)
Termination method: Solder
Flange feature: Board Side (4-40) or Housing/Shell (Unthreaded)
Mounting type: Through Hole
Material flammability rating: UL94 V-0

Secondary Electrical Criteria:

Current rating: Minimum 5A
Voltage rating: Minimum 200V (or unspecified)
Contact finish: Gold plated
Operating temperature range: Must encompass -40°C to 85°C

Substitute parts are grouped by manufacturer and series. Parts meeting all primary criteria and electrical specifications are classified as direct substitutes. Variations in shell material finish (tin vs. nickel plating), dielectric material composition, and contact material (phosphor bronze vs. brass) are permitted within the D-Sub 37-position receptacle category, provided all electrical and mechanical parameters remain compatible.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Mounting	Flange	Current (A)	Voltage (V)	Shell Material	Contact Finish	Temp Range (°C)	RoHS Status	Product Status
FCC17C37SN490	Amphenol ICC	FCC17	37	Through Hole	Board Side (4-40)	5	200	Steel, Tin	Gold	-40 ~ 85	Non-compliant	Obsolete
FCE17C37SN490	Amphenol ICC	FCE17	37	Through Hole	Board Side (4-40)	5	—	Steel, Tin	Gold	-40 ~ 85	Compliant	Active
172-037-283L001	NorComp Inc.	172, M Series	37	Panel Mount, Through Hole	Housing/Shell (Unthreaded)	5	—	Steel, Nickel	Gold	-50 ~ 125	ROHS3 Compliant	Active
172-037-283L011	NorComp Inc.	172, M Series	37	Panel Mount, Through Hole	Board Side (4-40)	5	—	Steel, Nickel	Gold	-50 ~ 125	ROHS3 Compliant	Active
172-037-283L021	NorComp Inc.	172, M Series	37	Panel Mount, Through Hole	Board Side (4-40)	5	—	Steel, Nickel	Gold	-50 ~ 125	ROHS3 Compliant	Active
172-037-283L031	NorComp Inc.	172, M Series	37	Panel Mount, Through Hole	Mating Side (4-40)	5	—	Steel, Nickel	Gold	-50 ~ 125	ROHS3 Compliant	Active

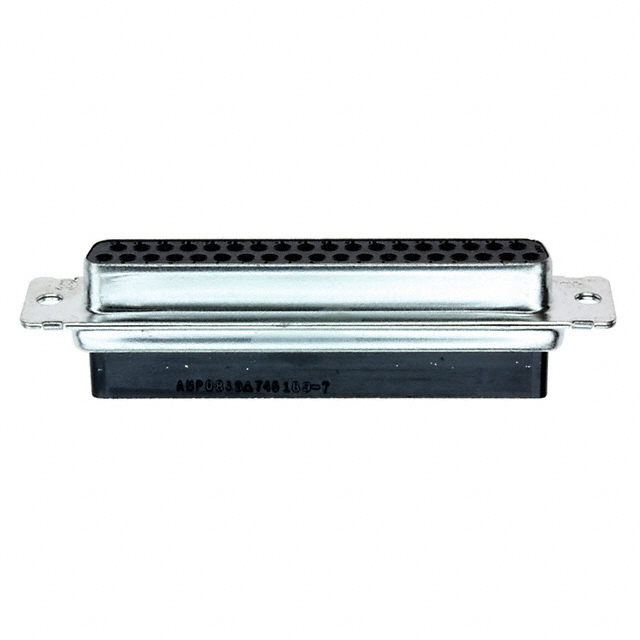

745189-7	TE Connectivity AMP	AMPLIMITE HD-20	37	Through Hole	Housing/Shell (Unthreaded)	6	125	Steel, Tin	Gold	-55 ~ 105	Non-compliant	Active

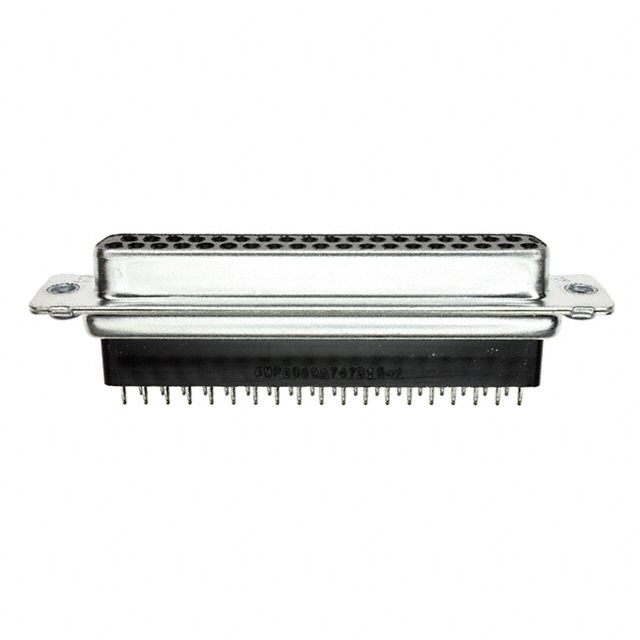

747315-1	TE Connectivity AMP	AMPLIMITE HD-20	37	Through Hole	Board Side (4-40)	6	125	Steel, Tin	Gold	-55 ~ 105	Not applicable	Active

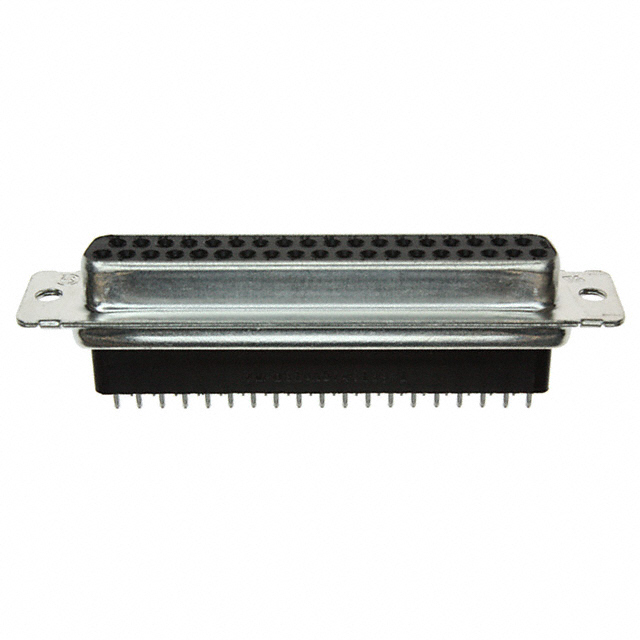

5745189-1	TE Connectivity AMP	AMPLIMITE HDP-20	37	Through Hole	Housing/Shell (Unthreaded)	6	125	Steel, Tin	Gold	-55 ~ 105	ROHS3 Compliant	Active
5745189-7	TE Connectivity AMP	AMPLIMITE HDP-20	37	Through Hole	Housing/Shell (Unthreaded)	6	125	Steel, Tin	Gold	-55 ~ 105	RoHS Compliant	Active
5747315-1	TE Connectivity AMP	AMPLIMITE HD-20	37	Through Hole	Board Side (4-40)	6	125	Steel, Tin	Gold	-55 ~ 105	RoHS Compliant	Active

Engineering Selection Recommendations

Amphenol ICC Series (FCE17C37SN490): This part maintains identical electrical and mechanical specifications to the FCC17C37SN490 while offering active product status and RoHS compliance. The FCE17 series represents the direct successor within the Amphenol ICC product line and is the preferred substitute for new designs and obsolescence mitigation.

NorComp 172 Series (172-037-283L011, 172-037-283L021): These parts provide 37-position D-Sub receptacle functionality with board-side flange mounting, matching the FCC17C37SN490 configuration. Both parts are ROHS3 compliant and active. The extended operating temperature range (-50°C to 125°C) exceeds the original specification. Nickel-plated steel shells and brass contacts differ from the original tin-plated steel and phosphor bronze, but remain within acceptable D-Sub 37-position receptacle parameters. The 172-037-283L031 variant features mating-side flange mounting and is not recommended for direct substitution due to flange position incompatibility.

TE Connectivity AMPLIMITE Series (747315-1, 5747315-1): These parts feature board-side flange mounting with 6A current rating and 125V voltage specification, exceeding the original 5A/200V ratings. The 747315-1 carries no RoHS designation, while 5747315-1 is RoHS compliant. Both are active products suitable for applications where higher current capacity is acceptable.

TE Connectivity AMPLIMITE Series (745189-7, 5745189-7, 5745189-1): These parts feature housing/shell unthreaded flange configuration, differing from the board-side mounting of the FCC17C37SN490. The 5745189-7 offers RoHS compliance and active status. These variants are suitable only where flange position flexibility exists in the mechanical design.

For new designs and obsolescence replacement, FCE17C37SN490 is the primary recommendation. For applications requiring RoHS compliance with extended temperature range, NorComp 172-037-283L011 or 172-037-283L021 are acceptable alternatives. TE Connectivity parts are suitable where higher current ratings and active product status are prioritized.

Frequently Asked Questions (FAQ)

Q: Can FCE17C37SN490 directly replace FCC17C37SN490 in existing designs?

A: Yes. The FCE17C37SN490 maintains identical electrical specifications (5A, 200V unspecified in substitute data), mechanical configuration (37-position, board-side flange, through-hole solder termination), and physical form factor. The primary difference is active product status and RoHS compliance, making it a direct substitute.

Q: What is the difference between board-side and housing/shell flange mounting?

A: Board-side flange (4-40) mounting positions the flange on the connector body facing the PCB, with threaded holes for mechanical retention. Housing/shell unthreaded flange mounting positions the flange on the connector shell without threaded retention points. These configurations are mechanically incompatible and require different PCB layouts. Verify your mechanical design before selecting a substitute with different flange positioning.

Q: Are NorComp 172 series parts compatible with the original FCC17C37SN490 footprint?

A: NorComp 172-037-283L011 and 172-037-283L021 maintain 37-position D-Sub receptacle configuration with board-side flange mounting, matching the FCC17C37SN490 mechanical interface. However, contact material differs (brass vs. phosphor bronze) and shell finish differs (nickel vs. tin plating). Electrical performance remains within D-Sub 37-position specifications. Verify mating connector compatibility before implementation.

Q: What is the significance of RoHS compliance in substitute selection?

A: RoHS compliance indicates the part meets Restriction of Hazardous Substances regulations, restricting lead, cadmium, mercury, and other hazardous materials. The original FCC17C37SN490 is RoHS non-compliant. For applications subject to RoHS requirements, FCE17C37SN490, NorComp 172 series (ROHS3 compliant), or TE Connectivity 5745189-7 and 5747315-1 (RoHS compliant) are required.

Q: Can TE Connectivity AMPLIMITE parts substitute for the FCC17C37SN490?

A: TE Connectivity parts are functionally compatible as 37-position D-Sub receptacles with solder termination and gold-plated contacts. However, they feature higher current ratings (6A vs. 5A) and lower voltage ratings (125V vs. 200V). Flange configuration varies by part number. These parts are suitable for applications where the higher current capacity is acceptable and voltage requirements do not exceed 125V. Verify electrical requirements before selection.

Q: What packaging differences exist among substitute parts?

A: FCC17C37SN490 and FCE17C37SN490 are supplied in standard packaging. NorComp 172 series parts are supplied in trays. TE Connectivity AMPLIMITE parts are supplied in tubes. Packaging differences do not affect electrical or mechanical compatibility but may impact inventory management and handling procedures.

Q: Is the extended operating temperature range of NorComp parts a concern?

A: No. NorComp 172 series parts operate from -50°C to 125°C, exceeding the original -40°C to 85°C specification. Extended temperature range provides additional design margin and is not a compatibility issue. Applications operating within the original temperature range experience no adverse effects.
