FCC17C37PE280 Equivalent & Substitute Parts

Part Overview

The FCC17C37PE280 is a 37-position D-Sub plug connector with male pins, manufactured by Amphenol ICC (Commercial Products). This through-hole solder-terminated connector features a vertical orientation and is designed for signal applications with a 5A current rating and 200V voltage rating. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain functional compatibility while offering improved availability and compliance status.

Key Parameters

Parameter	FCC17C37PE280
Connector Type	Plug, Male Pins
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Mounting Type	Through Hole
Termination	Solder
Current Rating (Amps)	5A
Voltage Rating	200V
Operating Temperature	-40°C ~ 85°C
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Product Status	Obsolete
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility for the FCC17C37PE280 is determined by the following critical parameters:

Mandatory Matching Parameters:

Connector Type: Plug, Male Pins
Number of Positions: 37
Number of Rows: 2
Shell Size, Connector Layout: 4 (DC, C)
Mounting Type: Through Hole
Termination: Solder
Material Flammability Rating: UL94 V-0

Compatible Variation Parameters:

Current Rating: Substitute parts with equal or higher current ratings (5A or greater) are acceptable
Voltage Rating: Substitute parts with equal or higher voltage ratings (200V or greater) are acceptable
Operating Temperature: Substitute parts with equal or wider operating temperature ranges are acceptable
Shell Material Finish: Steel with tin or tin-nickel plating are functionally equivalent
Contact Finish: Gold finish is maintained across all substitutes
RoHS Status: Active substitutes with RoHS compliance are preferred for new designs

The following substitute parts meet these criteria and are classified as active products with improved availability and compliance status.

Parameter Comparison

Parameter	FCC17C37PE280	FCE17C37PE280	09654617713	09654696713	5745054-4	5745074-2	5787686-1	787686-1	A-DS 37 PP/Z	D37P24A4PL00LF	D37P24A6GV00
Manufacturer	Amphenol ICC	Amphenol ICC	HARTING	HARTING	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Assmann WSW	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	37	37	37	37	37	37	37	37	37	37	37
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Current Rating (Amps)	5A	5A	6.5A	6.5A	6A	6A	6A	6A	3A	5A per Contact	5A
Voltage Rating	200V	Not Specified	Not Specified	Not Specified	125V	125V	125V	125V	250V	300V	300V
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-20°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel	Steel	Not Specified	Not Specified	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin-Nickel Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Not Specified	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold or Gold, GXT™
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS non-compliant	ROHS3 Compliant	RoHS Compliant	RoHS non-compliant

Engineering Selection Recommendations

Primary Recommendation: FCE17C37PE280

The FCE17C37PE280 from Amphenol ICC (Commercial Products) is the direct active equivalent to the obsolete FCC17C37PE280. This substitute maintains identical electrical and mechanical specifications while offering active product status and RoHS compliance. The FCE17 series represents the current production line replacement for the FCC17 series.

Secondary Recommendations for Enhanced Compliance:

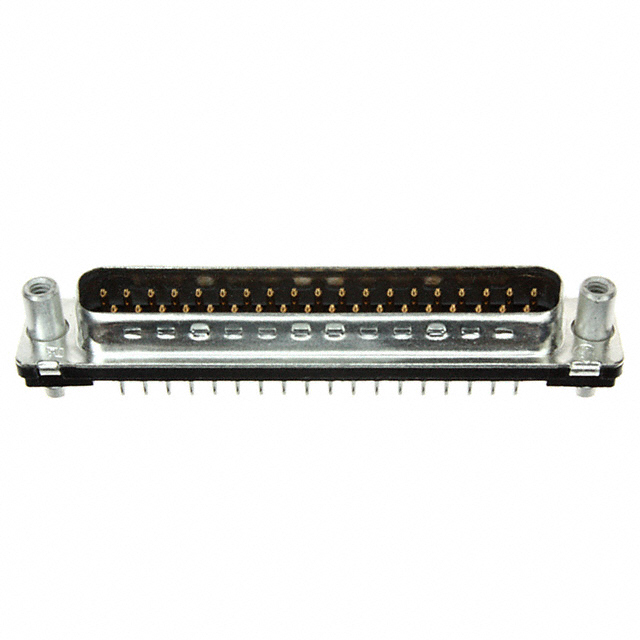

5787686-1 (TE Connectivity AMPLIMITE HD-20 series) is suitable for applications requiring ROHS3 compliance and extended operating temperature range (-55°C ~ 105°C). This part provides 6A current rating and board lock features.

D37P24A4PL00LF (Amphenol ICC Delta D series) is suitable for applications requiring RoHS compliance and extended operating temperature range (-55°C ~ 125°C). This part provides 5A per contact current rating and 300V voltage rating with M3 flange mounting.

D37P24A6GV00 (Amphenol ICC Delta D series) is suitable for applications requiring extended operating temperature range (-55°C ~ 125°C) and board lock features. This part provides 5A current rating and 300V voltage rating.

Substitutes with Current Rating Limitations:

A-DS 37 PP/Z (Assmann WSW Components) provides ROHS3 compliance and 250V voltage rating but is limited to 3A current rating. This substitute is suitable only for applications with current requirements not exceeding 3A.

Substitutes with Voltage Rating Limitations:

5745054-4, 5745074-2, and 787686-1 (TE Connectivity AMPLIMITE HD-20 series) provide 125V voltage rating, which is below the original 200V specification. These substitutes are suitable only for applications with voltage requirements not exceeding 125V.

HARTING Parts (09654617713, 09654696713):

These HARTING substitutes provide ROHS3 compliance and extended operating temperature range (-55°C ~ 125°C) with 6.5A current rating. Voltage rating is not specified for these parts. Board lock and female screwlock features are included.

Frequently Asked Questions (FAQ)

Q: Can FCE17C37PE280 be used as a direct replacement for FCC17C37PE280?

A: Yes. The FCE17C37PE280 maintains identical electrical and mechanical specifications including 37 positions, 2 rows, shell size 4 (DC, C), through-hole solder termination, 5A current rating, and UL94 V-0 flammability rating. The primary difference is active product status and RoHS compliance.

Q: What is the significance of the voltage rating difference between FCC17C37PE280 (200V) and some substitutes (125V)?

A: Voltage rating indicates the maximum voltage the connector can safely withstand. Substitutes with 125V rating are suitable only for applications operating at or below 125V. For applications requiring 200V operation, select substitutes with equal or higher voltage ratings: FCE17C37PE280, D37P24A4PL00LF, D37P24A6GV00, or A-DS 37 PP/Z.

Q: Why does A-DS 37 PP/Z have a lower current rating (3A) than the original part (5A)?

A: Current rating is determined by contact design and material composition. The A-DS 37 PP/Z is suitable only for applications with current requirements not exceeding 3A. For applications requiring 5A or higher, select substitutes with equal or higher current ratings.

Q: What is the difference between RoHS compliant and ROHS3 compliant?

A: RoHS compliance indicates conformance to the original Restriction of Hazardous Substances directive. ROHS3 compliance indicates conformance to the updated directive (EU 2015/863). Both represent compliance with hazardous substance restrictions. ROHS3 is the current standard for new designs.

Q: Are there differences in flange features between the original part and substitutes?

A: Yes. The FCC17C37PE280 features an unthreaded housing/shell flange. Substitutes include variations: unthreaded housing/shell (FCE17C37PE280, A-DS 37 PP/Z), female screwlock 4-40 (HARTING parts, 5745074-2, 5787686-1, 787686-1), housing/shell 4-40 (5745054-4), and M3 flange (D37P24A4PL00LF). Flange feature selection depends on mechanical mounting requirements.

Q: What is the difference between contact finish specifications "Gold" and "Gold, GXT™"?

A: Both indicate gold plating on contacts. GXT™ represents a specific gold plating technology. Both finishes provide equivalent electrical performance for signal applications.

Q: Can substitutes with extended operating temperature ranges be used in applications with the original temperature range (-40°C ~ 85°C)?

A: Yes. Substitutes with extended operating temperature ranges (-55°C ~ 105°C or -55°C ~ 125°C) are fully compatible with applications operating within the original -40°C ~ 85°C range. Extended temperature capability provides additional design flexibility without compromising performance.

Q: What packaging options are available for these substitutes?

A: Packaging varies by part number. FCE17C37PE280 is available in standard packaging. HARTING parts (09654617713, 09654696713) are supplied in bulk packaging. TE Connectivity parts (5745054-4, 5745074-2, 5787686-1, 787686-1) are supplied in tube packaging. Amphenol ICC Delta D parts (D37P24A4PL00LF, D37P24A6GV00) are supplied in tray packaging. Assmann WSW A-DS 37 PP/Z is supplied in tray packaging. Packaging selection does not affect electrical or mechanical compatibility.

Q: Are all substitutes suitable for solder termination?

A: Yes. All listed substitutes feature solder termination, matching the original FCC17C37PE280 specification.

Q: Which substitute offers the best overall compliance for new designs?

A: FCE17C37PE280 provides the most direct replacement with active product status and RoHS compliance. For applications requiring ROHS3 compliance specifically, 5787686-1, 09654617713, 09654696713, and A-DS 37 PP/Z are suitable options.
