Equivalent & Substitute Parts for FA2-NASP-C01-9

Part Overview

The FA2-NASP-C01-9 is an SMB Fakra connector plug manufactured by Amphenol RF, designed for 50-ohm coaxial cable termination in RF applications. This male pin connector features crimp termination for both center contact and shield, supporting frequencies up to 4 GHz with a free-hanging (in-line) mounting configuration. The part is Active status and ROHS3 compliant, making it suitable for current production and regulated applications. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling component interchangeability in system designs.

Substiute Parts

FA2-NASP-C01-9

Amphenol RFIn Stock: 916FA2-NASP-C01-9 Datasheet

Current PartRFQ

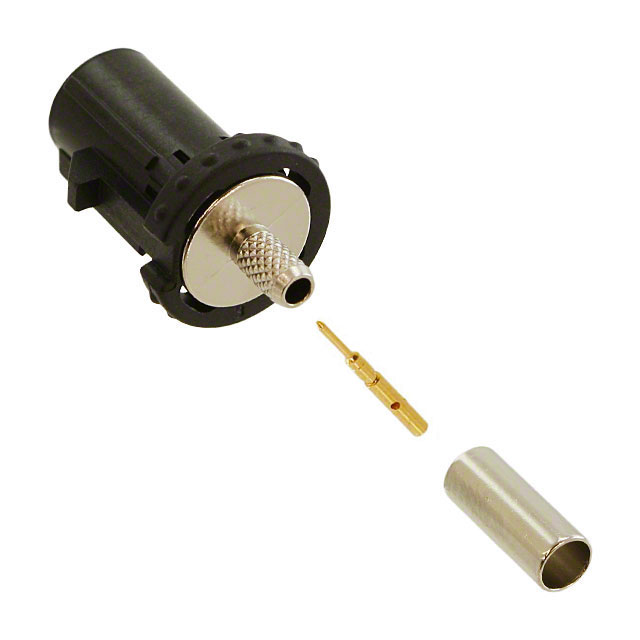

2FA1-NASP-C01-1

Amphenol RFIn Stock: 14782FA1-NASP-C01-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FA2-NASP-C01-9 is determined by strict alignment of the following critical parameters:

Electrical Compatibility Parameters:

• Connector style (SMB, Fakra)
• Connector type (Plug, Male Pin)
• Impedance (50 Ohms)
• Frequency maximum (4 GHz or higher)
• Insertion loss (0.3 dB or lower)

Mechanical Compatibility Parameters:

• Contact termination method (Crimp)
• Shield termination method (Crimp)
• Mounting type (Free Hanging/In-Line)
• Fastening type (Locking Ramp)
• Cable group compatibility (RG-174, 188, 188A, 316, LMR-100, M17/119-RG174)

Environmental & Compliance Parameters:

• Operating temperature range (must encompass or match -40°C ~ 100°C)
• Mating cycles (100 minimum)
• RoHS3 compliance
• Moisture sensitivity level (MSL 1)

The substitute part 2FA1-NASP-C01-1 meets all critical electrical and mechanical parameters. Differences in body material (Zinc Die Cast vs. Brass), dielectric material options (includes PMP), and extended operating temperature range (-40°C ~ 115°C) do not preclude substitution when the primary functional requirements are satisfied.

Parameter Comparison

Engineering Selection Recommendations

Both FA2-NASP-C01-9 and 2FA1-NASP-C01-1 are Active status products manufactured by Amphenol RF with full ROHS3 compliance and REACH compliance status. Both parts carry MSL 1 (Unlimited) moisture sensitivity ratings, indicating no special storage or handling requirements.

The substitute part 2FA1-NASP-C01-1 provides an extended operating temperature range (-40°C ~ 115°C versus -40°C ~ 100°C), which offers additional thermal margin for applications operating near the upper temperature limit. Both parts maintain identical electrical performance (0.3 dB insertion loss, 4 GHz maximum frequency) and mechanical compatibility with the specified cable groups.

Selection between these parts should be based on application-specific requirements: the FA2-NASP-C01-9 is appropriate for standard temperature range applications, while the 2FA1-NASP-C01-1 is suitable when extended thermal performance is required. Both parts satisfy equivalent functional requirements for 50-ohm SMB Fakra plug connectors in RF systems.

Frequently Asked Questions (FAQ)

Q: Can 2FA1-NASP-C01-1 be used as a direct replacement for FA2-NASP-C01-9 in existing designs?

A: Yes. Both parts share identical connector style (SMB, Fakra), connector type (Plug, Male Pin), impedance (50 Ohms), termination methods (Crimp), mounting configuration (Free Hanging/In-Line), and cable compatibility (RG-174, 188, 188A, 316, LMR-100, M17/119-RG174). Electrical performance is equivalent at 0.3 dB insertion loss and 4 GHz maximum frequency.

Q: What are the differences between these two parts?

A: The primary differences are body material composition (FA2-NASP-C01-9 uses Brass; 2FA1-NASP-C01-1 uses Zinc Die Cast), dielectric material options (2FA1-NASP-C01-1 includes Polymethylpentene as an alternative), and operating temperature range (2FA1-NASP-C01-1 extends to 115°C versus 100°C). These differences do not affect electrical or mechanical compatibility.

Q: Are both parts suitable for production applications?

A: Yes. Both parts carry Active product status and ROHS3 compliance, making them suitable for current production use. Both are REACH compliant and carry MSL 1 ratings.

Q: What cable types are compatible with these connectors?

A: Both connectors support RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups through crimp termination.

Q: Do these parts require special handling or storage?

A: No. Both parts carry MSL 1 (Unlimited) moisture sensitivity levels, indicating no special moisture control or storage requirements during handling and assembly.
