Equivalent & Substitute Parts for F8-10 Laminated Power Transformer

Part Overview

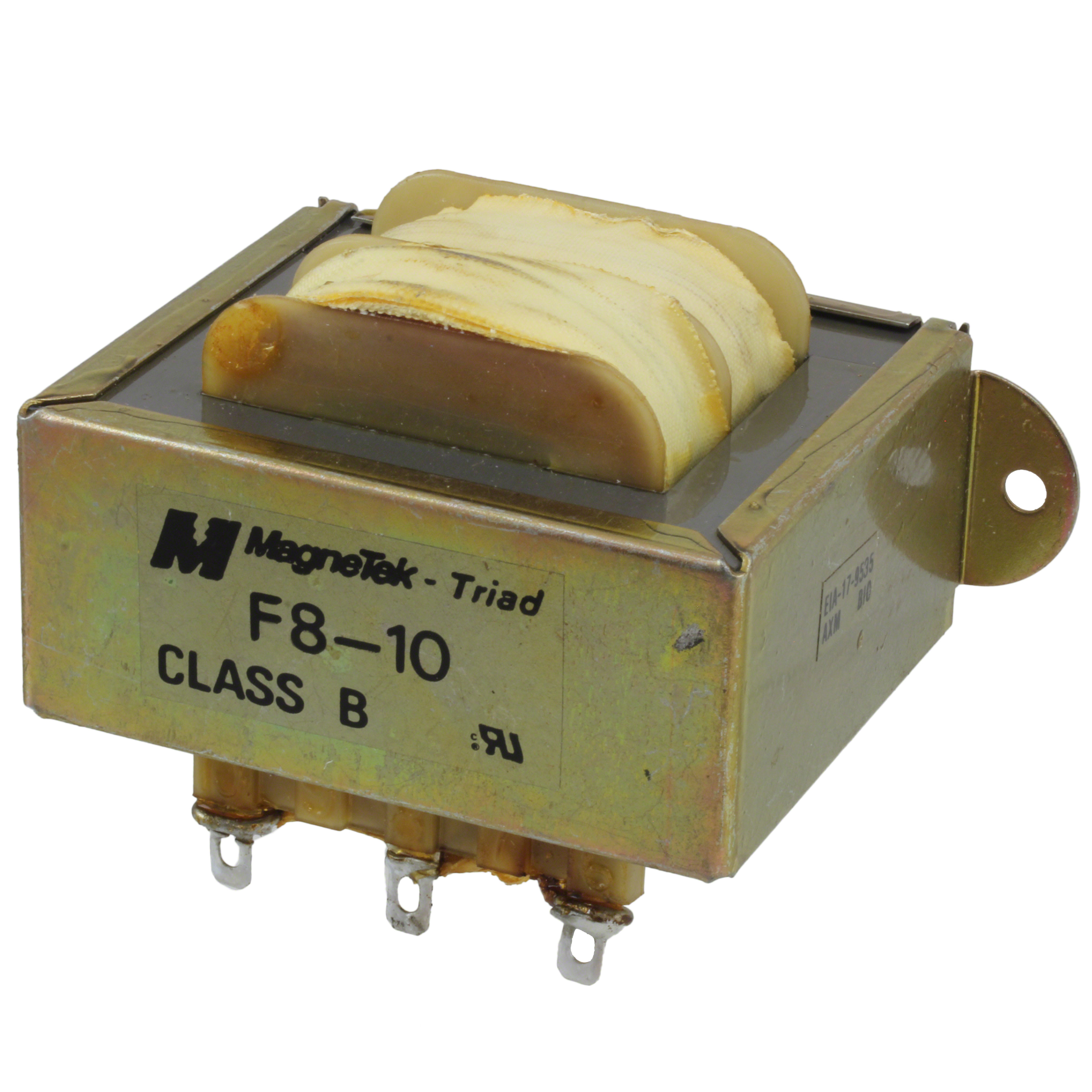

The F8-10 is a laminated core power transformer manufactured by Triad Magnetics, rated for 100VA with a primary voltage of 115V and secondary voltage of 10V at 10A maximum output current. This chassis mount transformer features a center tap secondary winding and is designed for applications requiring reliable step-down voltage conversion with electrical isolation. The part is currently in active production status with RoHS3 compliance and REACH unaffected designation. Substitute parts are identified when equivalent electrical specifications, mechanical dimensions, mounting characteristics, and regulatory compliance are maintained within acceptable tolerances for direct component replacement.

Substiute Parts

F8-10

Triad MagneticsIn Stock: 1045F8-10 Datasheet

Current PartRFQ

241-8-10

Signal TransformerIn Stock: 1025241-8-10 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the F8-10 transformer is determined by strict equivalence across the following critical parameters:

Electrical Specifications: Primary voltage (115V), secondary voltage (10V), power rating (100VA), and maximum output current (10A) must be identical. The center tap secondary winding configuration is a functional requirement that must be preserved in any substitute.

Core and Winding Configuration: Laminated core type with single primary and single secondary winding (with center tap) are mandatory specifications for functional equivalence.

Mechanical and Mounting Characteristics: Chassis mount termination with solder and quick connect (0.187" / 4.7mm) termination style ensures compatibility with existing PCB layouts and mechanical assemblies.

Regulatory and Compliance Requirements: RoHS3 compliance and REACH unaffected status must be maintained. Isolation voltage rating of 2500VAC/Vrms ensures equivalent safety performance.

Dimensional Tolerance: Length, width, and height dimensions must remain within acceptable manufacturing tolerances to ensure fit within existing enclosures and mounting structures.

The substitute part 241-8-10 from Signal Transformer meets all these criteria and is classified as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the F8-10 (Triad Magnetics) and 241-8-10 (Signal Transformer) transformers are active production components with identical electrical ratings and functional specifications. Selection between these parts may be based on:

Availability and Lead Time: Current inventory levels show 938 units of F8-10 and 926 units of 241-8-10, indicating both parts are readily available.

Regulatory Compliance: Both parts maintain RoHS3 compliance and REACH unaffected status, satisfying current environmental and safety regulations for electronic component manufacturing and distribution.

Dimensional Fit: Dimensional variations between the two parts (width difference of 1.35mm and height difference of 2.63mm) remain within standard manufacturing tolerances and do not impact chassis mount compatibility for typical applications.

Series Designation: The F8-10 belongs to the Quick Pack series, while the 241-8-10 belongs to the Two-4-One™ series. Series designation does not affect electrical or mechanical equivalence.

Termination Compatibility: Both parts feature solder and quick connect termination, ensuring compatibility with existing wiring and PCB connection methods.

Frequently Asked Questions (FAQ)

Q: Can the 241-8-10 be used as a direct replacement for the F8-10 in existing designs?

A: Yes. The 241-8-10 meets all electrical, mechanical, and regulatory specifications required for direct substitution. Dimensional variations are within acceptable manufacturing tolerances for chassis mount applications.

Q: Are the isolation voltage ratings equivalent between F8-10 and 241-8-10?

A: Yes. Both transformers provide 2500V isolation (F8-10 specified as 2500VAC; 241-8-10 specified as 2500Vrms), meeting identical safety and performance requirements.

Q: Does the center tap secondary winding function identically on both parts?

A: Yes. Both the F8-10 and 241-8-10 feature a single secondary winding with center tap configuration, providing equivalent functionality for applications requiring center-tapped output.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution eligibility is determined by: (1) identical power rating (100VA), (2) identical primary voltage (115V), (3) identical secondary voltage (10V), (4) identical maximum output current (10A), (5) identical core type (laminated), (6) identical winding configuration (single primary, single secondary with center tap), (7) identical mounting type (chassis mount), (8) compatible termination style (solder and quick connect), and (9) equivalent isolation voltage (2500V).

Q: Are there dimensional constraints that would prevent the 241-8-10 from fitting in an enclosure designed for the F8-10?

A: No. The 241-8-10 dimensions (102.40mm L × 58.50mm W × 67.70mm H) are within acceptable tolerances of the F8-10 dimensions (102.39mm L × 57.15mm W × 65.07mm H). Standard chassis mount applications accommodate these minor variations.

Q: Do both transformers comply with current environmental regulations?

A: Yes. Both the F8-10 and 241-8-10 are RoHS3 compliant and REACH unaffected, meeting current environmental and hazardous substance restrictions for electronic components.

Q: What is the significance of the series designation (Quick Pack vs. Two-4-One™)?

A: Series designation indicates manufacturer product line classification and packaging strategy but does not affect electrical performance, mechanical compatibility, or regulatory compliance. Both series are active production lines with equivalent component specifications.
