Equivalent & Substitute Parts for F5-10 Laminated Power Transformer

Part Overview

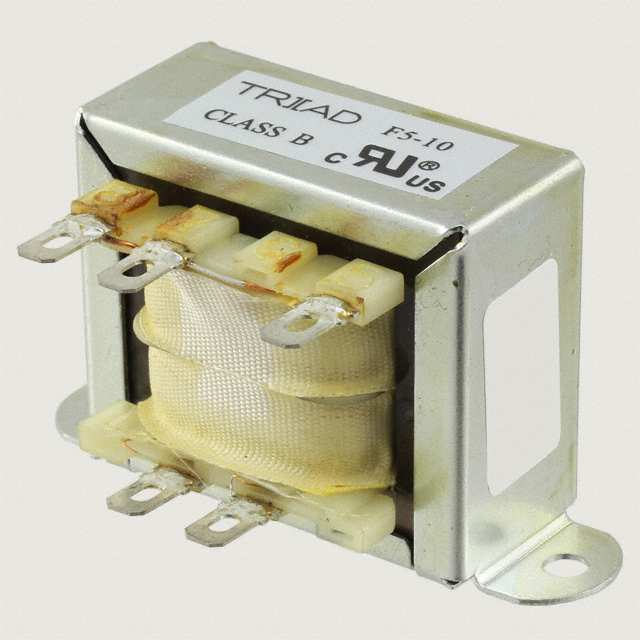

The F5-10 is a laminated core power transformer manufactured by Triad Magnetics, rated at 12VA with a 115V primary and 10V secondary output. This chassis mount transformer is designed for applications requiring step-down voltage conversion with center tap capability. The part is currently in active production status with robust inventory availability. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when procurement requirements necessitate alternative manufacturers.

Key Parameters

Parameter	Value
Power Rating	12VA
Primary Voltage	115V
Secondary Voltage (Full Load)	10V
Maximum Output Current	1.2A
Core Type	Laminated
Primary Winding Configuration	Single
Secondary Winding Configuration	Single with Center Tap
Mounting Type	Chassis Mount
Termination Style	Solder, Quick Connect
Isolation Voltage	2500VAC/Vrms
RoHS Compliance	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the F5-10 is determined by strict equivalence across the following critical parameters:

Electrical Specifications: Primary voltage (115V), secondary voltage (10V), power rating (12VA), maximum output current (1.2A), isolation voltage (2500VAC/Vrms), and center tap configuration must match exactly.

Physical Characteristics: Mounting type (chassis mount), termination style (solder and quick connect), and core type (laminated) must be identical.

Regulatory Compliance: RoHS3 compliance status must be maintained. REACH and ECCN classifications must align with the original specification.

Winding Configuration: Single primary and single secondary with center tap is a non-negotiable requirement.

The substitute part 241-5-10 from Signal Transformer meets all these criteria and is classified as a direct equivalent.

Parameter Comparison

Parameter	F5-10 (Triad Magnetics)	241-5-10 (Signal Transformer)	Match Status
Power Rating	12VA	12VA	Equivalent
Primary Voltage	115V	115V	Equivalent
Secondary Voltage (Full Load)	10V	10V	Equivalent
Maximum Output Current	1.2A	1.2A	Equivalent
Core Type	Laminated	Laminated	Equivalent
Primary Winding(s)	Single	Single	Equivalent
Secondary Winding(s)	Single with Center Tap	Single with Center Tap	Equivalent
Mounting Type	Chassis Mount	Chassis Mount	Equivalent
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Solder, Quick Connect	Equivalent
Isolation Voltage	2500VAC	2500Vrms	Equivalent
Weight	0.7 lb (317.51 g)	0.7 lb (317.51 g)	Equivalent
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Equivalent
REACH Status	REACH Unaffected	REACH Unaffected	Equivalent
ECCN	EAR99	EAR99	Equivalent
HTSUS Code	8504.31.4035	8504.31.4035	Equivalent

Engineering Selection Recommendations

Both the F5-10 and 241-5-10 are active production parts with full RoHS3 compliance and identical electrical and mechanical specifications. Selection between these parts should be based on:

Inventory Availability: The 241-5-10 (Signal Transformer) currently has 1225 units in stock, while the F5-10 (Triad Magnetics) has 885 units available.

Packaging Format: The F5-10 is supplied in bulk packaging, while the 241-5-10 is supplied in box packaging. Procurement requirements may dictate preference based on quantity needs and storage considerations.

Regulatory Compliance: Both parts maintain identical compliance certifications (ROHS3, REACH Unaffected, EAR99), ensuring interchangeability in regulated applications.

Physical Dimensions: Minor dimensional variations exist (F5-10: 71.42mm L x 34.93mm W x 41.28mm H; 241-5-10: 71.40mm L x 36.30mm W x 42.80mm H). These differences are within typical manufacturing tolerances for chassis mount transformers and do not affect functional compatibility in standard applications.

Frequently Asked Questions (FAQ)

Q: Can the 241-5-10 be used as a direct replacement for the F5-10 in existing designs?

A: Yes. The 241-5-10 meets all electrical and mechanical specifications of the F5-10, including voltage ratings, power capacity, winding configuration, mounting type, and termination style. Both parts are RoHS3 compliant and carry identical regulatory classifications.

Q: Are there any dimensional concerns when substituting the 241-5-10 for the F5-10?

A: The 241-5-10 has slightly larger dimensions (approximately 1.4mm wider and 1.5mm taller). Verify that the mounting location accommodates these minor differences before implementation.

Q: What is the significance of the center tap configuration in both parts?

A: The center tap on the secondary winding allows the transformer to provide either 10V or 5V output configurations, depending on circuit design. Both the F5-10 and 241-5-10 include this feature identically.

Q: Do both parts support the same termination methods?

A: Yes. Both the F5-10 and 241-5-10 use solder and quick connect termination (0.187" / 4.7mm), ensuring compatibility with existing PCB layouts and connector systems.

Q: What is the isolation voltage rating, and why is it important?

A: Both parts provide 2500VAC/Vrms isolation voltage, which defines the maximum voltage that can be safely applied between primary and secondary windings. This specification is critical for safety-critical applications and is identical between both parts.

Q: Are there packaging differences that affect procurement?

A: The F5-10 is supplied in bulk packaging, while the 241-5-10 is supplied in box packaging. Choose based on your procurement volume and storage requirements.

Q: Can these transformers be used in international applications?

A: Both parts are rated for 115V primary input. Verify that your application voltage matches this specification. For 230V or other international voltages, alternative transformer models are required.
