F36-170 Equivalent & Substitute Parts Reference

Part Overview

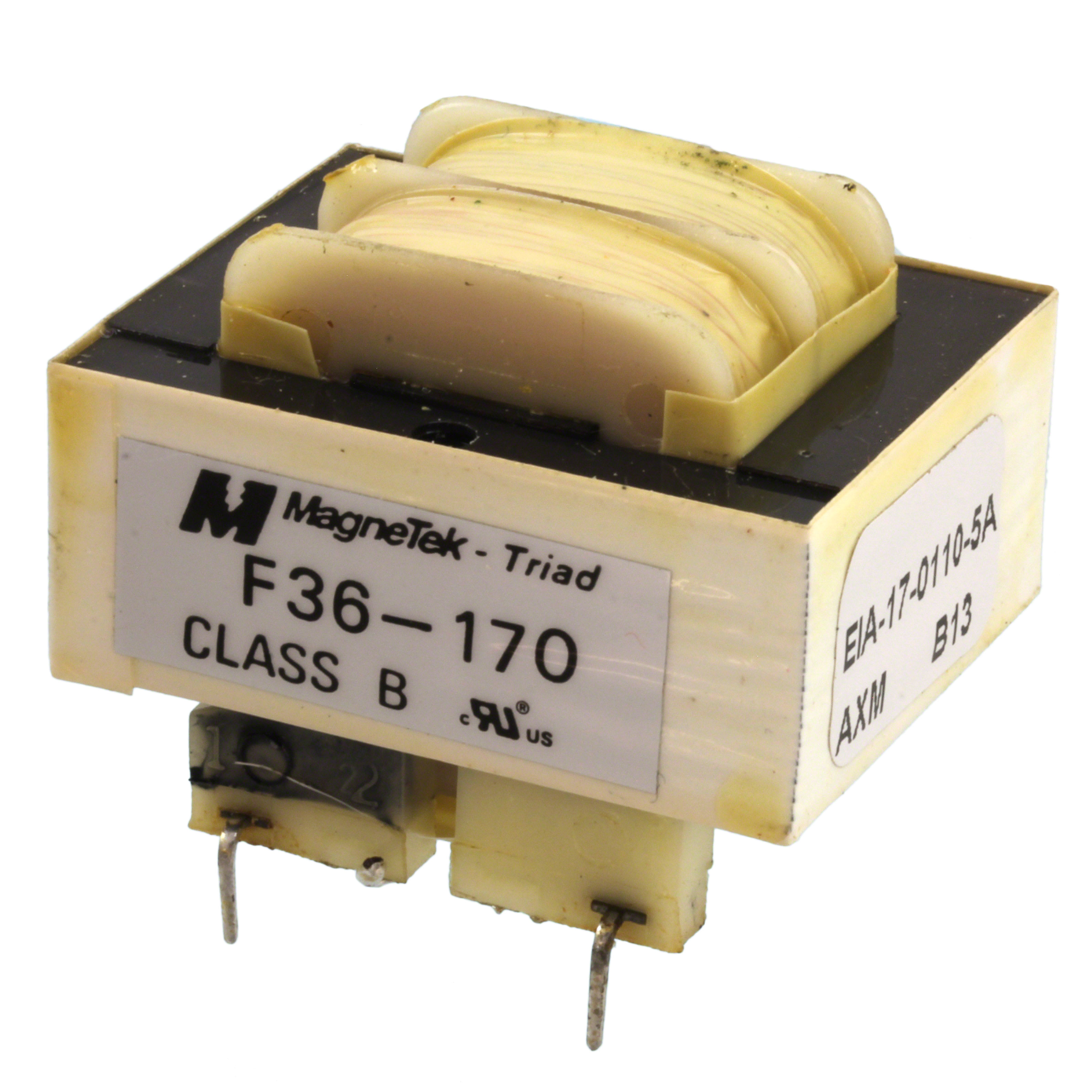

The F36-170 is a laminated core power transformer manufactured by Triad Magnetics, rated at 6VA with dual secondary windings. This through-hole mounted component operates at 115V primary voltage with configurable secondary outputs of 18V parallel or 36V series. The part is currently active in production and ROHS3 compliant, making it suitable for Class 2/3 applications requiring isolated AC power conversion in compact form factors.

Substitute parts are identified when equivalent electrical performance and mechanical compatibility are required due to inventory constraints, supply chain considerations, or design flexibility needs.

Key Parameters

Parameter	Value	Specification Type
Power Rating	6VA	Electrical
Primary Voltage	115V	Electrical
Secondary Voltage (Parallel)	18V	Electrical
Secondary Voltage (Series)	36V	Electrical
Output Current - Parallel	340mA	Electrical
Output Current - Series	170mA	Electrical
Core Type	Laminated	Mechanical
Mounting Type	Through Hole	Mechanical
Termination Style	PC Pin	Mechanical
Isolation Voltage	2500Vrms	Electrical
Dimensions (L x W)	41.28mm x 33.32mm	Mechanical
Height - Seated (Max)	33.32mm	Mechanical
RoHS Status	ROHS3 Compliant	Compliance

Substitute Part Grouping Explanation

Substitution eligibility for the F36-170 is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Requirements:

Identical primary voltage: 115V
Identical secondary voltage configuration: Parallel 18V / Series 36V
Identical output current ratings: Parallel 340mA / Series 170mA
Identical power rating: 6VA
Identical isolation voltage: 2500Vrms
Identical winding configuration: Single primary, dual secondary, no center tap

Mechanical Equivalence Requirements:

Identical core type: Laminated
Identical mounting type: Through Hole
Identical termination style: PC Pin
Identical physical dimensions: 41.28mm L x 33.32mm W x 33.32mm H (seated)

Compliance Requirements:

ROHS3 compliance maintained
REACH unaffected status maintained
Identical ECCN and HTSUS classifications

The substitute part 164F36 meets all electrical, mechanical, and compliance criteria for direct substitution in applications requiring the F36-170.

Parameter Comparison

Parameter	F36-170 (Triad Magnetics)	164F36 (Hammond Manufacturing)	Match Status
Power Rating	6VA	6VA	Equivalent
Primary Voltage	115V	115V	Equivalent
Secondary Voltage - Parallel	18V	18V	Equivalent
Secondary Voltage - Series	36V	36V	Equivalent
Output Current - Parallel	340mA	340mA	Equivalent
Output Current - Series	170mA	170mA	Equivalent
Core Type	Laminated	Laminated	Equivalent
Mounting Type	Through Hole	Through Hole	Equivalent
Termination Style	PC Pin	PC Pin	Equivalent
Isolation Voltage	2500Vrms	2500Vrms	Equivalent
Dimensions (L x W)	41.28mm x 33.32mm	41.28mm x 33.32mm	Equivalent
Height - Seated (Max)	33.32mm	33.32mm	Equivalent
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Equivalent
REACH Status	REACH Unaffected	REACH Unaffected	Equivalent
ECCN	EAR99	EAR99	Equivalent
HTSUS	8504.31.4035	8504.31.4035	Equivalent

Engineering Selection Recommendations

Both the F36-170 and 164F36 are active production components with full ROHS3 compliance and REACH unaffected status. Selection between these parts should be based on the following factors:

Availability and Lead Time: The 164F36 (Hammond Manufacturing) currently has 822 units in stock compared to 680 units for the F36-170 (Triad Magnetics). For applications with immediate procurement requirements, inventory availability may determine part selection.

Packaging Considerations: The F36-170 is supplied in box packaging, while the 164F36 is supplied in bulk packaging. Packaging selection depends on assembly process requirements and inventory management protocols.

Series Designation: The F36-170 belongs to the Split Pack™ series (Class 2/3, F series), while the 164F36 belongs to the Hammond 164 series. Both series designations indicate active production status with established supply chains.

Regulatory Compliance: Both parts maintain identical compliance certifications (ROHS3, REACH unaffected, EAR99 ECCN, 8504.31.4035 HTSUS). No compliance advantage exists between the two options.

For applications where the F36-170 is specified, the 164F36 provides full electrical and mechanical equivalence with no design modifications required.

Frequently Asked Questions (FAQ)

Q: Can the 164F36 be used as a direct replacement for the F36-170 in existing designs?

A: Yes. The 164F36 meets all electrical specifications (6VA, 115V primary, 18V/36V secondary, 340mA/170mA output, 2500Vrms isolation), mechanical specifications (laminated core, through-hole mounting, PC pin termination, identical dimensions), and compliance requirements (ROHS3, REACH unaffected) of the F36-170. No circuit modifications are required.

Q: Are there any differences in performance between the F36-170 and 164F36?

A: No performance differences exist. Both transformers are rated identically across all electrical parameters including power rating, voltage outputs, current capacity, and isolation voltage.

Q: What is the difference between the packaging options?

A: The F36-170 is supplied in box packaging, suitable for smaller quantity orders and individual component handling. The 164F36 is supplied in bulk packaging, typically used for higher-volume production runs. Packaging selection does not affect component performance or compatibility.

Q: Are both parts currently in production?

A: Yes. Both the F36-170 (Triad Magnetics) and 164F36 (Hammond Manufacturing) are active production components with established inventory levels.

Q: Do both parts meet the same regulatory standards?

A: Yes. Both parts are ROHS3 compliant, REACH unaffected, classified as EAR99 for export control purposes, and share the identical HTSUS tariff classification (8504.31.4035).

Q: What determines whether a transformer can substitute for the F36-170?

A: Substitution requires equivalence across three categories: electrical parameters (power rating, voltage, current, isolation), mechanical specifications (core type, mounting, termination, dimensions), and compliance certifications (ROHS, REACH, export classifications). The 164F36 meets all three criteria.
