F1300AA01 Equivalent & Substitute Parts

Part Overview

The F1300AA01 is a single-phase EMC/EMI line filter manufactured by Curtis Industries, rated for 250VAC at 1A with 50/60Hz operation. This chassis-mount filter features a two-stage configuration with quick-connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part is currently active in production with 971 units in stock. Equivalent parts are identified when they share identical electrical ratings, mechanical mounting characteristics, and functional performance within the specified operating parameters.

Substiute Parts

F1300AA01

Curtis IndustriesIn Stock: 1004F1300AA01 Datasheet

Current PartRFQ

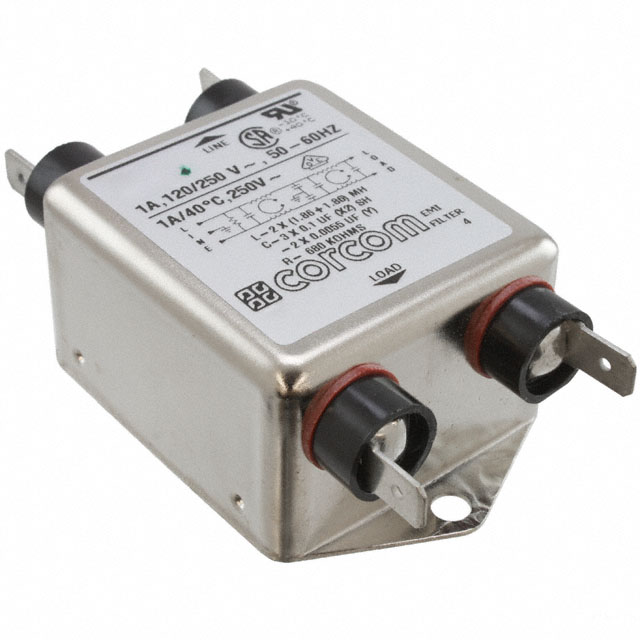

1VR1

TE Connectivity Corcom FiltersIn Stock: 11211VR1 Datasheet

SimilarRFQ

FN2060-1-06

Schaffner EMC Inc.In Stock: 1186FN2060-1-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the F1300AA01 is determined by matching the following critical parameters:

• Single-phase filter configuration with two-stage design
• 250V AC voltage rating
• 1A current capacity
• Chassis mount mechanical interface
• Quick-connect termination style
• General-purpose application suitability
• ROHS3 compliance status

The identified substitute parts—1VR1 (TE Connectivity Corcom Filters) and FN2060-1-06 (Schaffner EMC Inc.)—satisfy all core electrical and mechanical requirements. Variations in operating temperature range, inductance values, and frequency bandwidth do not preclude substitution when the primary functional parameters align.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status and ROHS3 compliance. Selection between F1300AA01, 1VR1, and FN2060-1-06 is based on application-specific requirements:

The F1300AA01 carries CE, CSA, TUV, and UR approvals. The 1VR1 holds CSA, UR, and VDE certifications with a narrower operating temperature range (-10°C to 40°C). The FN2060-1-06 provides the broadest operating temperature envelope (-25°C to 100°C) and extended frequency bandwidth (DC to 400Hz) with CE, CSA, ENEC, and UR approvals.

For applications requiring operation beyond standard 50/60Hz frequencies or extreme temperature conditions, FN2060-1-06 offers expanded capability. For standard industrial environments within the -10°C to 40°C range, 1VR1 provides equivalent performance. The F1300AA01 remains the baseline reference for general-purpose 250VAC 1A filtering applications.

Frequently Asked Questions (FAQ)

Q: Can 1VR1 replace F1300AA01 in all applications? A: Yes, provided the operating environment remains within -10°C to 40°C. Both parts share identical electrical ratings (250VAC, 1A, 50/60Hz), mounting type (chassis), and termination style (quick-connect). The 1VR1 carries different regulatory approvals (CSA, UR, VDE versus CE, CSA, TUV, UR), which may affect suitability depending on regional compliance requirements.

Q: What is the advantage of FN2060-1-06 over F1300AA01? A: The FN2060-1-06 extends operating temperature range to -25°C to 100°C and supports DC to 400Hz frequency operation, compared to the F1300AA01's unspecified temperature range and 50/60Hz rating. This broader specification makes FN2060-1-06 suitable for industrial environments with temperature extremes or variable frequency applications. The higher inductance value (12mH versus unspecified) provides enhanced filtering characteristics.

Q: Does packaging affect substitution eligibility? A: Packaging format (Bulk versus Tray) does not affect electrical or mechanical compatibility. F1300AA01 and 1VR1 ship in Bulk packaging, while FN2060-1-06 uses Tray packaging. Selection should be based on procurement and inventory management requirements rather than functional performance.

Q: Are all three parts ROHS3 compliant? A: Yes. F1300AA01, 1VR1, and FN2060-1-06 all meet ROHS3 compliance requirements, ensuring compatibility with environmental regulations across EU and equivalent markets.

Q: Which part has the best regulatory approval coverage? A: FN2060-1-06 carries four approvals (CE, CSA, ENEC, UR). F1300AA01 holds four approvals (CE, CSA, TUV, UR). The 1VR1 holds three approvals (CSA, UR, VDE). Selection depends on specific regional or customer certification requirements.
