F1150AA01 Equivalent & Substitute Parts

Part Overview

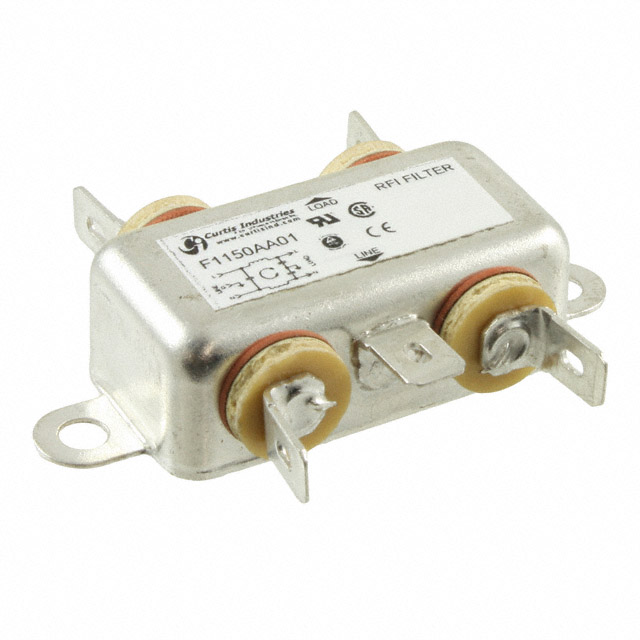

The F1150AA01 is a single-phase EMC/EMI line filter rated for 250VAC at 1A, designed for chassis mount applications with quick connect termination. This filter is manufactured by Curtis Industries and is currently active in production with 927 units in stock. The F1150AA01 operates at 50/60Hz and is suitable for general-purpose filtering applications requiring electromagnetic compatibility and electromagnetic interference suppression.

Equivalent and substitute parts are identified when they share identical electrical ratings, mechanical mounting compatibility, and termination style specifications. This ensures direct functional replacement without circuit redesign or mechanical modification.

Substiute Parts

F1150AA01

Curtis IndustriesIn Stock: 1024F1150AA01 Datasheet

Current PartRFQ

6609020-1

TE Connectivity Corcom FiltersIn Stock: 7626609020-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The F1150AA01 has one identified equivalent substitute: 6609020-1 manufactured by TE Connectivity Corcom Filters. This substitution is valid based on the following matching parameters:

• Voltage rating: 250VAC (identical)
• Current rating: 1A (identical)
• Operating frequency: 50/60Hz (identical)
• Filter type: Single Phase (identical)
• Configuration: Single Stage (identical)
• Mounting type: Chassis Mount (identical)
• Termination style: Quick Connect (identical)
• Application category: General Purpose (identical)
• RoHS compliance: ROHS3 Compliant (identical)

Both parts meet the core electrical and mechanical requirements for direct substitution in 250VAC, 1A single-phase filtering applications.

Parameter Comparison

Engineering Selection Recommendations

Both the F1150AA01 and 6609020-1 are active production parts with ROHS3 compliance and REACH unaffected status, making them suitable for current design implementations. The F1150AA01 carries CE and UR approvals, while the 6609020-1 carries CSA, UR, and VDE approvals. Selection between these parts should be based on the specific regulatory requirements of the target application region and end-use equipment certification pathway.

The 6609020-1 provides additional operating temperature specification (-10°C ~ 40°C) and inductance data (1.86mH), which may be relevant for thermal or performance-critical applications. Both parts are functionally equivalent for standard 250VAC, 1A single-phase EMC/EMI filtering at 50/60Hz.

Frequently Asked Questions (FAQ)

Q: Can the 6609020-1 directly replace the F1150AA01 in existing designs?

A: Yes. Both parts share identical electrical ratings (250VAC, 1A, 50/60Hz), filter configuration (single-phase, single-stage), mounting type (chassis mount), and termination style (quick connect). No circuit or mechanical modifications are required.

Q: What are the key parameters that determine substitution eligibility?

A: Voltage rating, current rating, operating frequency, filter type, configuration, mounting type, and termination style must all match. Both parts meet these criteria.

Q: Are there differences in regulatory approvals between these parts?

A: Yes. The F1150AA01 holds CE and UR approvals, while the 6609020-1 holds CSA, UR, and VDE approvals. Verify that the substitute part's certifications align with your target market and equipment certification requirements.

Q: Does the 6609020-1 have any additional specifications not listed for the F1150AA01?

A: The 6609020-1 specifies an operating temperature range of -10°C ~ 40°C and inductance of 1.86mH. These parameters should be verified against your application requirements.

Q: Are both parts currently available?

A: Yes. The F1150AA01 has 927 units in stock, and the 6609020-1 has 719 units in stock as new original inventory.
