F1100BB06 Equivalent & Substitute Parts

Part Overview

The F1100BB06 is a single-phase EMC/EMI line filter manufactured by Curtis Industries, rated for 250VAC at 6A with 50/60Hz operation. This chassis-mount filter with wire leads is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part maintains Active product status with full RoHS3 compliance and CE, CSA, and TUV certifications. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical compatibility, and regulatory approvals to support procurement flexibility and supply chain continuity.

Substiute Parts

F1100BB06

Curtis IndustriesIn Stock: 1147F1100BB06 Datasheet

Current PartRFQ

5VB3

TE Connectivity Corcom FiltersIn Stock: 10325VB3 Datasheet

SimilarRFQ

851-05/006

QualtekIn Stock: 3348851-05/006 Datasheet

SimilarRFQ

FN2010-6-07

Schaffner EMC Inc.In Stock: 839FN2010-6-07 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the F1100BB06 is determined by the following critical parameters:

Primary Matching Criteria:

• Filter Type: Single Phase
• Configuration: Single Stage
• Mounting Type: Chassis Mount
• Termination Style: Wire Leads
• RoHS Status: RoHS3 Compliant

Electrical Compatibility Criteria:

• Voltage Rating: 250VAC minimum
• Current Rating: 6A minimum
• Frequency: 50/60Hz operation

Three substitute parts meet these criteria with the following considerations:

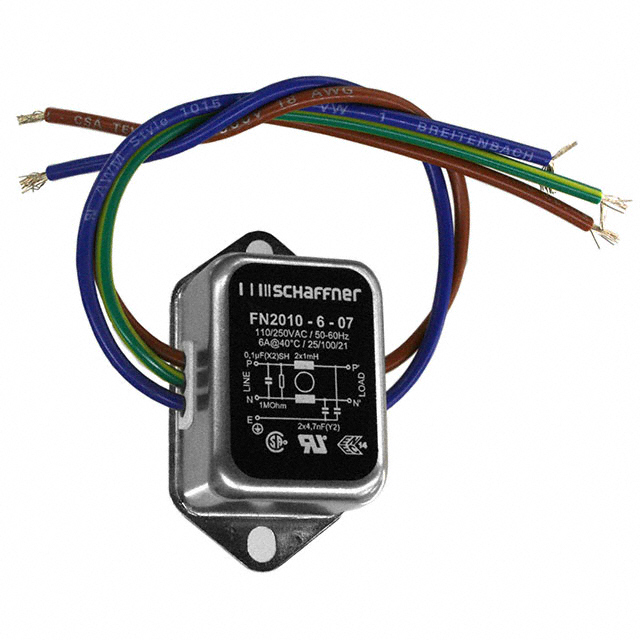

FN2010-6-07 (Schaffner EMC Inc.): Exact current and voltage match at 6A/250VAC. Frequency range extends to DC~400Hz, providing broader operational capability. Inductance rated at 1mH.

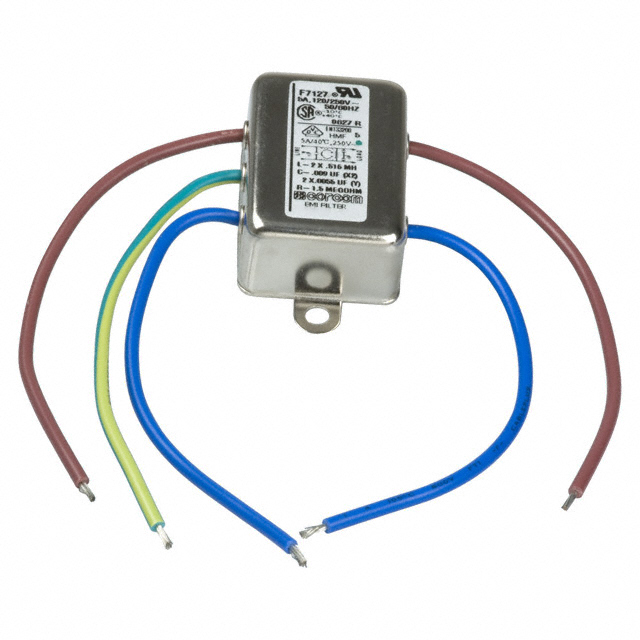

5VB3 (TE Connectivity Corcom Filters): Current rating of 5A is below the 6A requirement of the main part. Voltage rating matches at 250VAC. Inductance specified at 516µH. This part functions as a substitute only in applications where 5A current capacity is acceptable.

851-05/006 (Qualtek): Current rating of 5A is below the 6A requirement. Dual voltage rating of 115V/250VAC provides additional flexibility. Inductance rated at 2.9mH. This part functions as a substitute only in applications where 5A current capacity is acceptable.

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent (Full Specification Match): FN2010-6-07 from Schaffner EMC Inc. provides the closest technical equivalence to the F1100BB06. Both parts are rated for 6A at 250VAC with single-phase, single-stage configuration and chassis-mount wire-lead termination. The FN2010-6-07 extends frequency operation to DC~400Hz, offering compatibility with a broader range of input conditions. Both parts maintain RoHS3 compliance and carry CSA and UR certifications. The FN2010-6-07 is suitable for direct substitution in applications requiring the full 6A current capacity.

Reduced Current Capacity Substitutes: The 5VB3 (TE Connectivity Corcom Filters) and 851-05/006 (Qualtek) are both rated at 5A, which is below the 6A specification of the F1100BB06. These parts are suitable substitutes only in applications where the actual operating current does not exceed 5A. Both maintain RoHS3 compliance and carry CSA and UR certifications. The 851-05/006 offers dual voltage capability (115V/250VAC), providing additional operational flexibility in mixed-voltage environments.

Regulatory Compliance: All substitute parts maintain RoHS3 compliance and REACH unaffected or affected status consistent with the main part. Certification bodies (CSA, UR, VDE, ENEC) across all parts support general-purpose industrial applications.

Frequently Asked Questions (FAQ)

Q: Can the 5VB3 or 851-05/006 be used as direct replacements for the F1100BB06? A: These parts are suitable substitutes only if the application operates at or below 5A. The F1100BB06 is rated for 6A, and using a 5A-rated filter in a 6A application exceeds the component's current capacity and voids its performance guarantees.

Q: What is the primary advantage of the FN2010-6-07 over the F1100BB06? A: The FN2010-6-07 maintains identical current and voltage ratings (6A/250VAC) but extends frequency operation from 50/60Hz to DC~400Hz. This broader frequency range accommodates variable-frequency drive (VFD) applications and other non-standard frequency inputs.

Q: Are there packaging differences between these parts? A: The F1100BB06 is supplied in Bulk packaging, while FN2010-6-07 and 851-05/006 are supplied in Tray packaging. The 5VB3 is supplied in Bulk packaging. Packaging differences do not affect electrical or mechanical compatibility but may impact procurement and handling procedures.

Q: Do all substitute parts carry the same certifications as the F1100BB06? A: The F1100BB06 carries CE, CSA, and TUV certifications. The FN2010-6-07 carries CSA, ENEC, and UR certifications. The 5VB3 and 851-05/006 carry CSA, UR, and VDE certifications. While certification bodies differ, all parts meet equivalent regulatory standards for general-purpose industrial applications.

Q: What is the significance of inductance values in these filters? A: Inductance values (1mH for FN2010-6-07, 516µH for 5VB3, 2.9mH for 851-05/006) affect the filter's frequency response and attenuation characteristics. These values are provided for reference in applications requiring specific EMI/EMC filtering performance. The F1100BB06 inductance is not specified in available documentation.
