EZ-400-TM-PL-X TNC Male Plug Coaxial Connector Equivalent & Substitute Parts

Part Overview

The EZ-400-TM-PL-X is an active TNC male plug connector manufactured by Amphenol Times Microwave Systems, designed for 50-ohm RF coaxial cable applications. This connector features crimp termination with push-on contact configuration and is rated for operation across -40°C to 125°C. The part is RoHS compliant and suitable for free-hanging inline mounting in RF systems requiring threaded fastening up to 6 GHz frequency operation.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in compatible applications.

Key Parameters

Parameter	Value
Connector Style	TNC
Connector Type	Plug, Male Pin
Impedance	50 Ohms
Contact Termination	Push On
Shield Termination	Crimp
Mounting Type	Free Hanging (In-Line)
Fastening Type	Threaded
Frequency - Max	6 GHz
Number of Ports	1
Mating Cycles	500

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment of the following core parameters:

Connector Style: TNC (all candidates match)
Connector Type: Plug, Male Pin (all candidates match)
Impedance: 50 Ohms (all candidates match)
Contact Termination: Push On (all candidates match)
Shield Termination: Crimp (all candidates match)
Mounting Type: Free Hanging (In-Line) (all candidates match)
Fastening Type: Threaded (all candidates match)
Frequency - Max: 6 GHz (all candidates match)
Number of Ports: 1 (all candidates match)
Mating Cycles: 500 (all candidates match)

The identified substitute parts EZ-400-TM-X and EZ-600-TM-X satisfy all core electrical and mechanical compatibility criteria. Variations in packaging, body material, dielectric material, and operating temperature ranges do not affect functional substitution within the specified parameter set.

Parameter Comparison

Parameter	EZ-400-TM-PL-X (Main)	EZ-400-TM-X (Substitute)	EZ-600-TM-X (Substitute)
Manufacturer	Amphenol Times Microwave Systems	Amphenol Times Microwave Systems	Times Microwave Systems
Connector Style	TNC	TNC	TNC
Connector Type	Plug, Male Pin	Plug, Male Pin	Plug, Male Pin
Contact Termination	Push On	Push On	Push On
Shield Termination	Crimp	Crimp	Crimp
Impedance	50 Ohms	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Fastening Type	Threaded	Threaded	Threaded
Frequency - Max	6 GHz	6 GHz	6 GHz
Number of Ports	1	1	1
Mating Cycles	500	500	500
Cable Group	LMR-400	LMR-400	LMR-600
Operating Temperature	-40°C ~ 125°C	-40°C ~ 85°C	-65°C ~ 165°C
Body Material	Brass	Aluminum	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyethylene (PE)	Polytetrafluoroethylene (PTFE)
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Packaging	Bag	Bulk	Bulk

Engineering Selection Recommendations

Both EZ-400-TM-X and EZ-600-TM-X are qualified substitutes based on matching core electrical and mechanical parameters. Selection between candidates depends on application-specific requirements:

EZ-400-TM-X maintains identical cable group compatibility (LMR-400) with the main part and operates within a narrower temperature range (-40°C to 85°C). This part carries ROHS3 compliance certification.

EZ-600-TM-X supports LMR-600 cable group and extends operating temperature range to -65°C to 165°C, providing broader thermal performance envelope. This part also carries ROHS3 compliance certification.

Both substitute parts maintain 500 mating cycle rating and 6 GHz maximum frequency specification. Packaging differences (bulk versus bag) do not affect functional performance.

Frequently Asked Questions (FAQ)

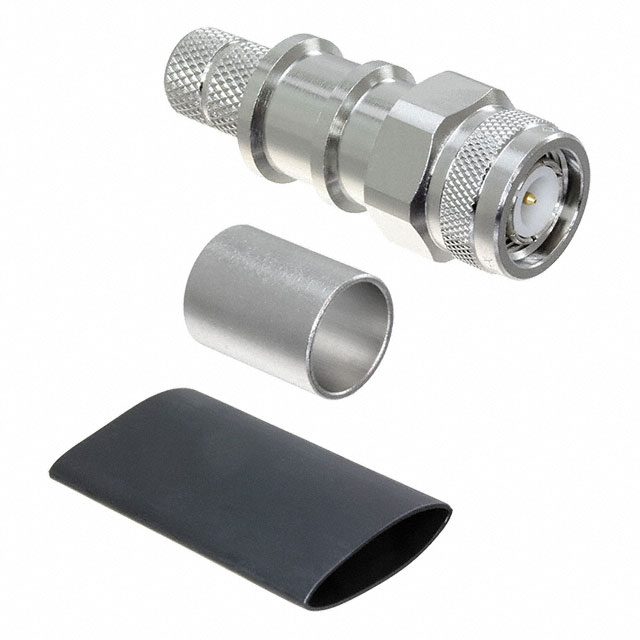

Q: Can EZ-400-TM-X be used as a direct replacement for EZ-400-TM-PL-X?

A: Yes. Both parts share identical connector style, type, impedance, termination methods, mounting configuration, and frequency rating. The primary difference is packaging format (bulk versus bag) and operating temperature range. EZ-400-TM-X operates to 85°C maximum versus 125°C for the main part.

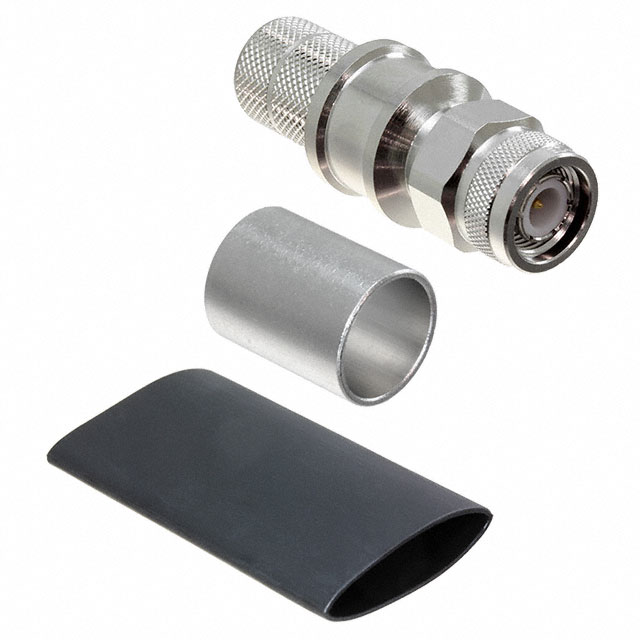

Q: What is the difference between EZ-400-TM-X and EZ-600-TM-X?

A: Both are TNC male plug connectors with identical electrical specifications (50 ohms, 6 GHz maximum frequency). The primary differences are cable group compatibility (LMR-400 versus LMR-600), operating temperature range (-40°C to 85°C versus -65°C to 165°C), body material (aluminum versus brass), and dielectric material (polyethylene versus PTFE).

Q: Are there cable group restrictions when using substitute parts?

A: Yes. EZ-400-TM-X is specified for LMR-400 cable group, while EZ-600-TM-X is specified for LMR-600 cable group. The main part EZ-400-TM-PL-X is specified for LMR-400. Cable group selection must align with the connector specification.

Q: Do all three parts meet RoHS compliance requirements?

A: Yes. EZ-400-TM-PL-X carries RoHS Compliant certification. Both EZ-400-TM-X and EZ-600-TM-X carry ROHS3 Compliant certification.

Q: What is the significance of body material differences?

A: EZ-400-TM-X uses aluminum body material while EZ-400-TM-PL-X and EZ-600-TM-X use brass. Both materials are suitable for RF connector applications. Material selection may affect mechanical durability and environmental resistance in specific deployment conditions.

Q: Are mating cycle ratings identical across all three parts?

A: Yes. All three parts are rated for 500 mating cycles, indicating equivalent mechanical durability for connection and disconnection operations.
