EX80-54P(30) Equivalent & Substitute Parts

Part Overview

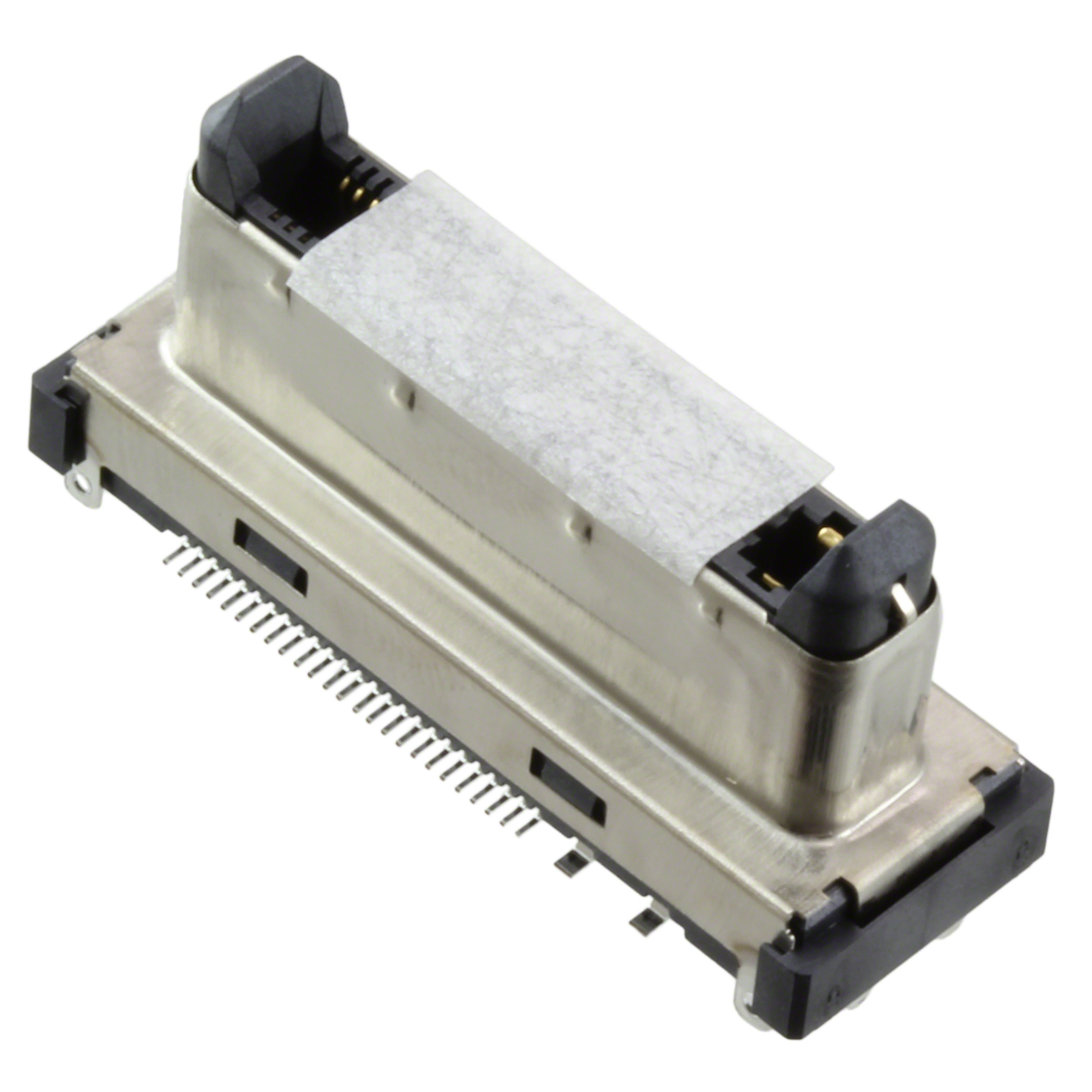

The EX80-54P(30) is a 54-position rectangular connector plug manufactured by Hirose Electric Co Ltd, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and repair applications.

Substiute Parts

EX80-54P(30)

Hirose Electric Co LtdIn Stock: 916EX80-54P(30) Datasheet

Current PartRFQ

EX80-54P(70)

Hirose Electric Co LtdIn Stock: 1629EX80-54P(70) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The EX80-54P(30) has one identified substitute: EX80-54P(70). This substitution is valid based on the following critical parameters that remain constant across both parts:

• Connector type: Plug with outer shroud contacts
• Position count: 54 positions
• Contact pitch: 0.024" (0.60mm)
• Row configuration: 2 rows
• Mounting technology: Surface mount
• Height above board: 0.594" (15.10mm)
• Contact material: Gold plating
• Board guide feature: Present
• Moisture sensitivity: MSL 1 (Unlimited)

The primary distinction between these parts is product status: EX80-54P(30) is obsolete, while EX80-54P(70) is active production. The packaging format differs (EX80-54P(70) is supplied in trays), and contact finish thickness specification is provided for the active variant.

Parameter Comparison

Engineering Selection Recommendations

For applications currently using EX80-54P(30), transition to EX80-54P(70) is the direct equivalent. The active product status of EX80-54P(70) ensures ongoing availability and manufacturing support. Both parts maintain identical electrical and mechanical specifications for connector interface, position count, pitch, and mounting configuration.

EX80-54P(70) carries ROHS3 compliance, representing current regulatory alignment. The specified contact finish thickness of 20.0µin (0.51µm) on the active variant provides documented durability characteristics. Both parts maintain MSL 1 rating, indicating no moisture sensitivity constraints during storage and handling.

Frequently Asked Questions (FAQ)

Q: Can EX80-54P(70) be used as a direct replacement for EX80-54P(30)?

A: Yes. Both parts share identical connector type, position count, pitch, row configuration, mounting type, height above board, contact material, and board guide feature. The electrical and mechanical interfaces are fully compatible.

Q: What is the significance of the different part number suffixes (30 vs. 70)?

A: The suffix designates the packaging format and product generation. EX80-54P(30) is obsolete; EX80-54P(70) is the active production equivalent supplied in tray packaging.

Q: Are there RoHS compliance differences between these parts?

A: EX80-54P(30) is RoHS Compliant; EX80-54P(70) is ROHS3 Compliant. Both meet lead-free requirements. ROHS3 represents the current regulatory standard.

Q: Does the contact finish thickness difference affect compatibility?

A: No. The 20.0µin (0.51µm) gold plating thickness specified for EX80-54P(70) is a manufacturing specification that does not alter electrical or mechanical interface compatibility.

Q: What is the moisture sensitivity rating, and does it affect storage?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity. Standard storage conditions apply without special desiccant or humidity control requirements.

Q: Is the board guide feature present on both parts?

A: Yes. Both EX80-54P(30) and EX80-54P(70) include the board guide feature for mechanical alignment during assembly.
