EX80-100P1(30) Equivalent & Substitute Parts

Part Overview

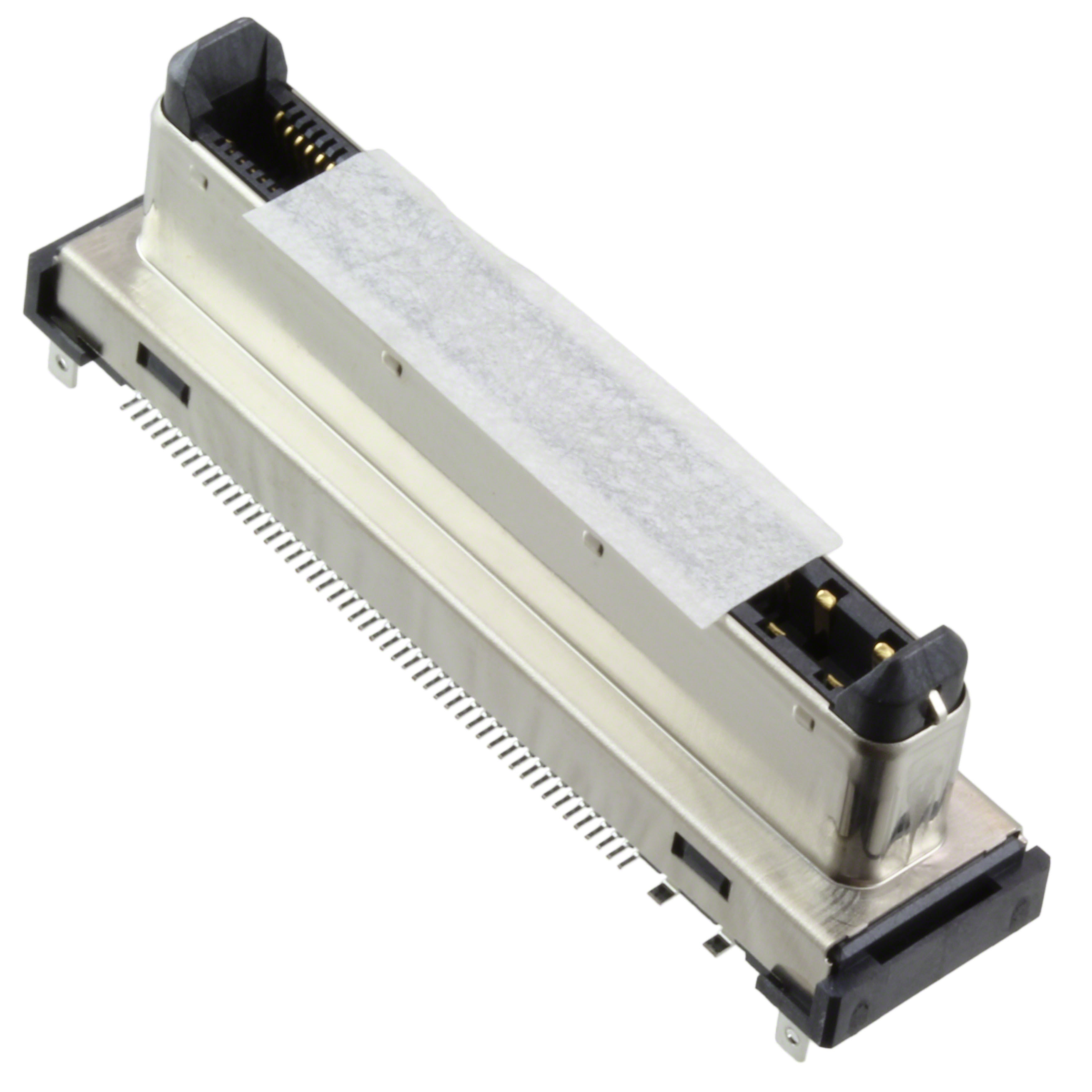

The EX80-100P1(30) is a 100-position rectangular connector plug manufactured by Hirose Electric Co Ltd, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and repair applications.

Substiute Parts

EX80-100P1(30)

Hirose Electric Co LtdIn Stock: 991EX80-100P1(30) Datasheet

Current PartRFQ

EX80-100P1(70)

Hirose Electric Co LtdIn Stock: 858EX80-100P1(70) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EX80-100P1(30) is determined by strict equivalence across the following critical parameters:

• Connector type and contact configuration (Plug, Outer Shroud Contacts)
• Electrical position count (100 positions)
• Contact pitch (0.024" / 0.60mm)
• Row configuration (2 rows)
• Mounting technology (Surface Mount)
• Contact material and finish (Gold)
• Physical envelope (Height Above Board: 0.594" / 15.10mm)
• Mechanical features (Board Guide)

The EX80-100P1(70) meets all substitution criteria as an active product within the same EX80 series, maintaining identical electrical and mechanical specifications while offering improved supply availability and current manufacturing compliance.

Parameter Comparison

Engineering Selection Recommendations

The EX80-100P1(70) is the direct active equivalent for the obsolete EX80-100P1(30). Selection is based on the following engineering criteria:

• All electrical and mechanical parameters are identical across both parts
• The substitute part maintains active product status with current manufacturing support
• ROHS3 compliance of the EX80-100P1(70) exceeds the RoHS compliance of the original part
• Moisture Sensitivity Level classification of 1 (Unlimited) provides superior handling and storage flexibility compared to the original part designation
• Standard tray packaging enables efficient inventory management and automated assembly processes
• Contact finish thickness specification (20.0µin / 0.51µm) on the substitute part provides documented gold plating durability

Frequently Asked Questions (FAQ)

Q: Can EX80-100P1(70) be used as a direct replacement for EX80-100P1(30) in existing designs?

A: Yes. The EX80-100P1(70) is electrically and mechanically equivalent to the EX80-100P1(30). All critical parameters including position count, pitch, mounting type, contact configuration, and physical envelope are identical. No design modifications are required.

Q: What is the difference between the part numbers EX80-100P1(30) and EX80-100P1(70)?

A: The numeric suffix indicates manufacturing revision or packaging variant within the EX80 series. Both parts are functionally identical 100-position surface mount connectors with identical electrical and mechanical specifications. The EX80-100P1(70) is the current active production variant.

Q: Are there any compliance differences between these parts?

A: The EX80-100P1(70) carries ROHS3 compliance, which supersedes the RoHS compliance of the EX80-100P1(30). The substitute part also specifies Moisture Sensitivity Level 1 (Unlimited), providing enhanced environmental handling characteristics.

Q: What packaging is available for the substitute part?

A: The EX80-100P1(70) is supplied in standard tray packaging, suitable for both manual and automated assembly operations.

Q: Is the contact finish thickness specified for both parts?

A: Contact finish thickness is specified for the EX80-100P1(70) at 20.0µin (0.51µm) gold plating. The original EX80-100P1(30) does not include this specification in available documentation.
