Rotary Encoder Mechanical 16PPR EVE-SBBFE516B

Part Overview

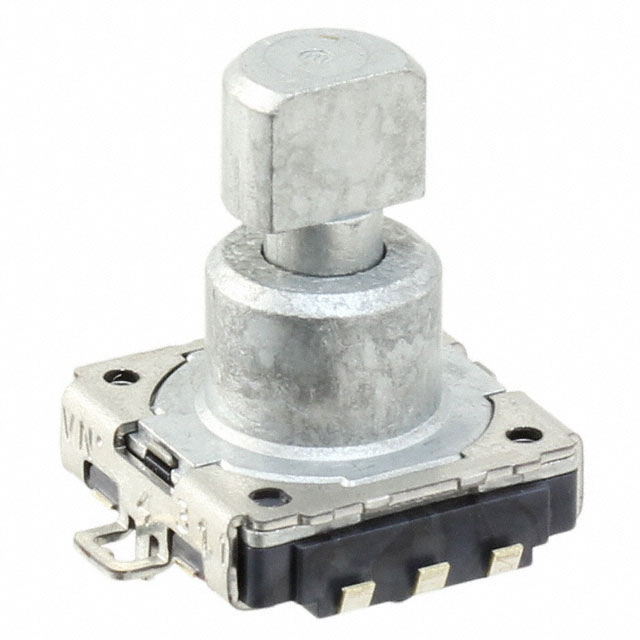

The EVE-SBBFE516B is a mechanical rotary encoder manufactured by Panasonic Electronic Components, designed for applications requiring quadrature (incremental) output with 16 pulses per revolution. This component features vertical orientation with PCB through-hole mounting and integrated detent and switch functionality. The product carries a "Not For New Designs" status, making identification of functionally equivalent alternatives essential for ongoing production support and design continuity.

Substiute Parts

EVE-SBBFE516B

Panasonic Electronic ComponentsIn Stock: 1123EVE-SBBFE516B Datasheet

Current PartRFQ

EVE-T23AH516B

Panasonic Electronic ComponentsIn Stock: 1271EVE-T23AH516B Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The EVE-T23AH516B qualifies as a direct substitute for the EVE-SBBFE516B based on the following critical parameters that determine functional equivalence:

• Encoder Type: Both are mechanical encoders
• Output Type: Both provide quadrature (incremental) output
• Pulses per Revolution: Both deliver 16 PPR
• Detent Function: Both include detent
• Built-in Switch: Both include integrated switch functionality
• Mounting Type: Both support PCB through-hole mounting
• Orientation: Both are vertically oriented
• Termination Style: Both use PC pin termination
• Rotational Life: Both specify 30,000 cycles minimum
• RoHS Compliance: Both meet ROHS3 requirements

These parameters define the functional and mechanical compatibility envelope for substitution within this rotary encoder category.

Parameter Comparison

Engineering Selection Recommendations

Both the EVE-SBBFE516B and EVE-T23AH516B are classified as "Not For New Designs" by Panasonic Electronic Components. For applications currently using the EVE-SBBFE516B, the EVE-T23AH516B provides functional equivalence across all specified electrical and mechanical parameters. Selection between these parts should be based on inventory availability and supply chain considerations, as both components meet identical compliance requirements (ROHS3) and performance specifications.

Frequently Asked Questions (FAQ)

Q: Can the EVE-T23AH516B directly replace the EVE-SBBFE516B in existing designs?

A: Yes. Both parts share identical specifications for encoder type, output type, pulses per revolution, detent function, built-in switch, mounting configuration, orientation, termination style, rotational life rating, and RoHS compliance status. No circuit modifications are required.

Q: Are there differences in packaging between these two parts?

A: Both parts are supplied in tray packaging. No packaging conversion is necessary for component handling or assembly processes.

Q: Do both parts meet the same environmental and compliance standards?

A: Yes. Both the EVE-SBBFE516B and EVE-T23AH516B are ROHS3 compliant and carry identical regulatory classifications (ECCN: EAR99; HTSUS: 8543.70.4500).

Q: What is the significance of the "Not For New Designs" status?

A: This status indicates that Panasonic Electronic Components is not recommending these parts for new product development. However, both parts remain available for production support of existing designs and applications already in the field.

Q: Are the mechanical and electrical interfaces identical?

A: Yes. Both parts feature PCB through-hole mounting with PC pin termination, vertical orientation, and identical rotational life specifications of 30,000 cycles minimum, ensuring mechanical and electrical interface compatibility.
