ET07MD1CPE Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

The ET07MD1CPE is an active production toggle switch manufactured by C&K, featuring SPDT (Single Pole Double Throw) circuitry with 0.4VA current rating at 20V. This through-hole mounted component is designed for on-off-momentary switching applications with epoxy sealed terminals and IP57 ingress protection. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical compatibility, and functional equivalence within the toggle switch SPDT category.

Substiute Parts

ET07MD1CPE

C&KIn Stock: 1147ET07MD1CPE Datasheet

Current PartRFQ

A19JP

NKK SwitchesIn Stock: 817A19JP Datasheet

SimilarRFQ

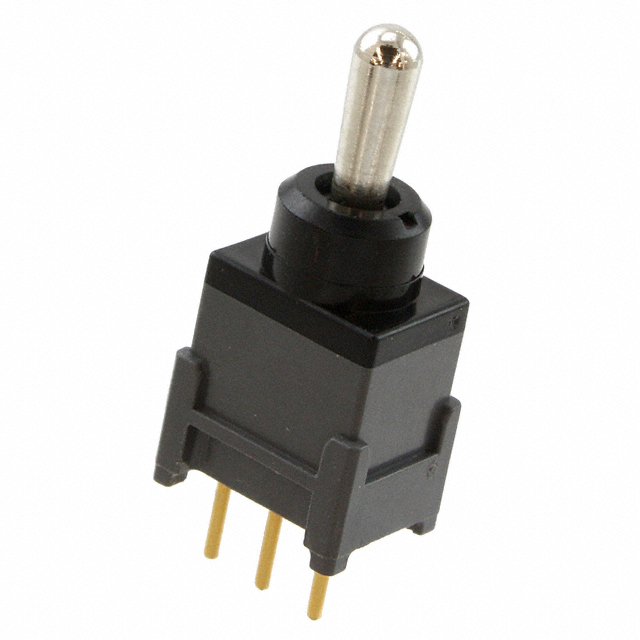

B19JP

NKK SwitchesIn Stock: 902B19JP Datasheet

SimilarRFQ

TL38P000000

APEM Inc.In Stock: 1229TL38P000000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ET07MD1CPE are identified based on the following critical parameters that determine functional equivalence:

Core Electrical Parameters (Must Match or Exceed):

• Circuit configuration: SPDT
• Current rating: 0.4VA (AC/DC)
• Voltage rating: Minimum 20V AC/DC
• Switch function: On-Off-Mom
• Operating temperature range: -30°C to 85°C or broader

Mechanical Parameters (Must Match):

• Mounting type: Through Hole
• Termination style: PC Pin
• Actuator type: Standard Round

Compliance Parameters:

• RoHS3 Compliant
• ECCN: EAR99

Substitute parts are grouped into two categories based on voltage rating alignment:

Category 1 - Voltage Matched (20V): TL38P000000 (APEM Inc.) matches the exact voltage specification of the main part.

Category 2 - Voltage Exceeded (28V): A19JP and B19JP (NKK Switches) exceed the voltage requirement, providing higher voltage tolerance while maintaining all other electrical and mechanical specifications.

Parameter Comparison

Engineering Selection Recommendations

TL38P000000 (APEM Inc.) provides direct electrical and mechanical equivalence to the ET07MD1CPE. Both parts share identical voltage ratings (20V AC/DC), current rating (0.4VA), electrical life (30,000 cycles), and operating temperature range. This part is suitable for direct substitution in applications where the original specification must be maintained. ROHS3 compliance and active product status confirm ongoing availability and regulatory alignment.

A19JP and B19JP (NKK Switches) are functionally compatible substitutes with enhanced voltage tolerance (28V AC/DC versus 20V). Both parts exceed the electrical requirements of the main part while maintaining identical current rating, switch function, and operating temperature range. The NKK parts offer extended electrical life (50,000 cycles versus 30,000 cycles). These substitutes are appropriate for applications where higher voltage margin is beneficial or where extended cycle life is required. Both maintain ROHS3 compliance and active product status.

Selection between A19JP and B19JP depends on packaging requirements: A19JP is supplied in bulk packaging, while B19JP is supplied in tray packaging, matching the original ET07MD1CPE packaging format.

Frequently Asked Questions (FAQ)

Q: Can TL38P000000 replace ET07MD1CPE in all applications? A: Yes. TL38P000000 matches the voltage rating (20V AC/DC), current rating (0.4VA), circuit configuration (SPDT), and operating temperature range of ET07MD1CPE. Both parts have identical electrical life specifications (30,000 cycles) and PC Pin termination. Through-hole mounting and standard round actuator compatibility are confirmed.

Q: What is the difference between A19JP and B19JP? A: A19JP and B19JP are electrically identical NKK Switches parts with the same voltage rating (28V AC/DC), current rating (0.4VA), and electrical life (50,000 cycles). The primary difference is packaging: A19JP is supplied in bulk packaging, while B19JP is supplied in tray packaging. B19JP matches the original ET07MD1CPE tray packaging format.

Q: Can I use A19JP or B19JP in a 20V application? A: Yes. Both A19JP and B19JP are rated for 28V AC/DC, which exceeds the 20V requirement of the ET07MD1CPE. Operating these parts at 20V is within their electrical specification and presents no compatibility issues.

Q: Are there mechanical differences between the substitute parts? A: Actuator length varies slightly: ET07MD1CPE is 6.10mm, TL38P000000 is 5.30mm, and both A19JP and B19JP are 6.30mm. All parts use standard round actuators with PC Pin termination and through-hole mounting. Verify panel cutout compatibility in your specific application.

Q: Do all substitute parts meet RoHS3 compliance? A: Yes. ET07MD1CPE, TL38P000000, A19JP, and B19JP are all ROHS3 compliant. All parts are classified as active products with ongoing manufacturer support.

Q: Which substitute offers the longest operational life? A: A19JP and B19JP both offer 50,000 electrical cycles, compared to 30,000 cycles for ET07MD1CPE and TL38P000000. For applications requiring extended cycle life, the NKK Switches parts provide enhanced durability.
